DTC B2112: 5 Volt Supply Circuit Low: Notes

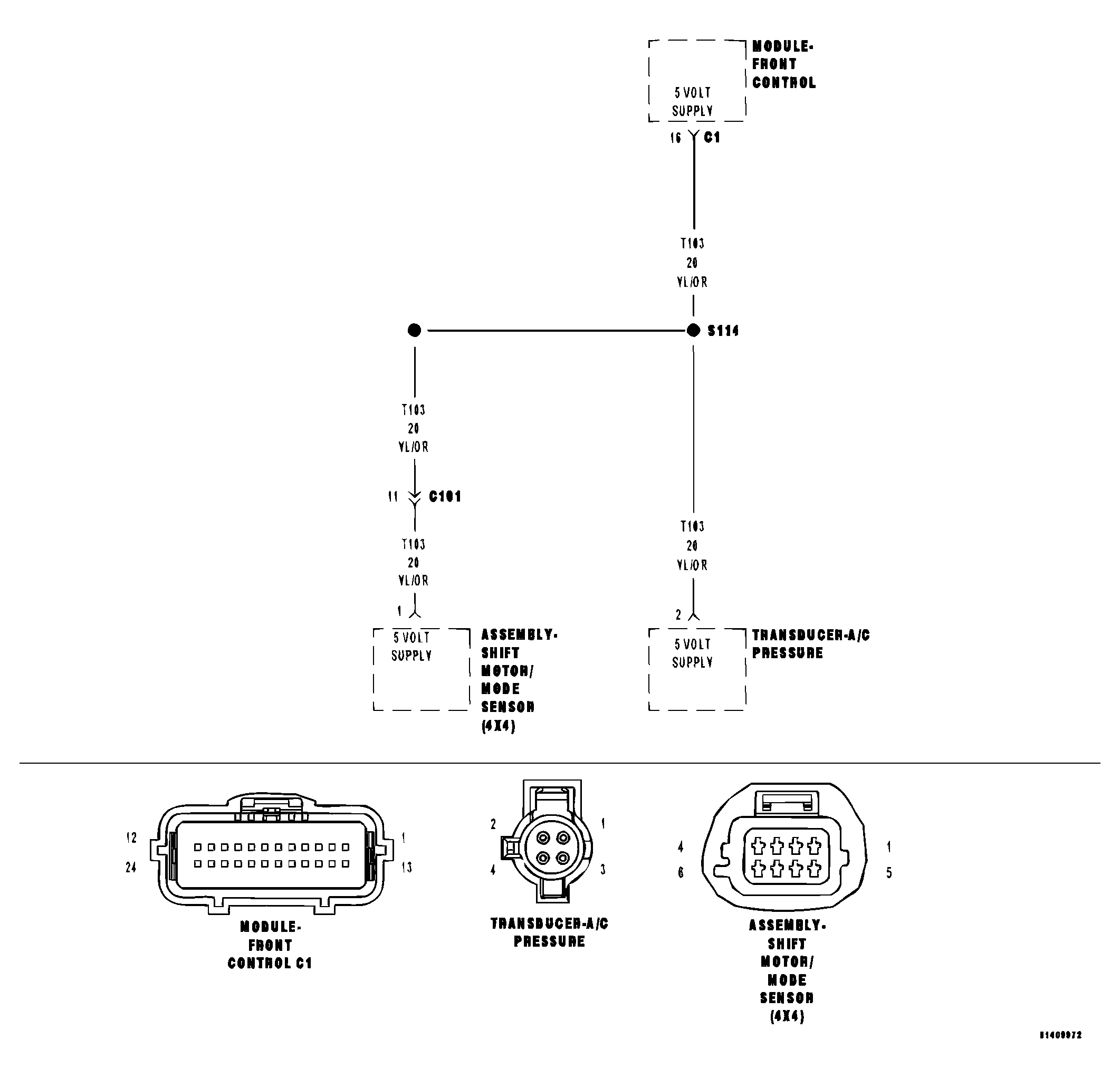

Fig 1: B2112-5 Volt Supply Low - Wiring Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

For a complete wiring diagram Refer to SYSTEM WIRING DIAGRAMS .

• When Monitored:

  With the ignition on  .

• Set Condition:

  The Front Control Module detects the (T103) 5 volt supply circuit voltage below 0.3 volts  .

Possible Causes

(T103) 5 VOLT SUPPLY CIRCUIT SHORTED TO GROUND

A/C PRESSURE TRANSDUCER

SHIFT MOTOR/MODE SENSOR ASSEMBLY (IF EQUIPPED)

FRONT CONTROL MODULE
