Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

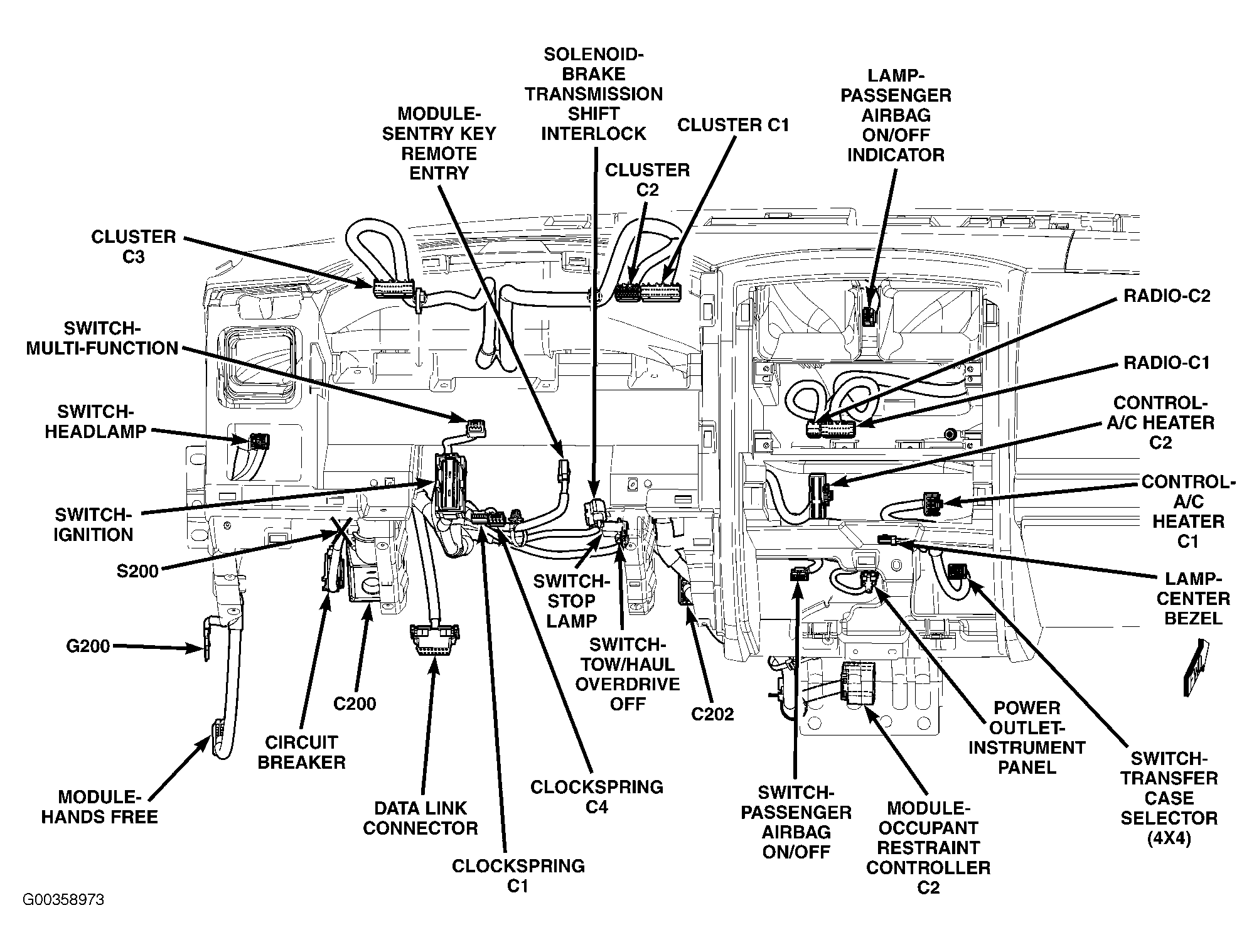

Circuit Breaker At junction block. See Figure .

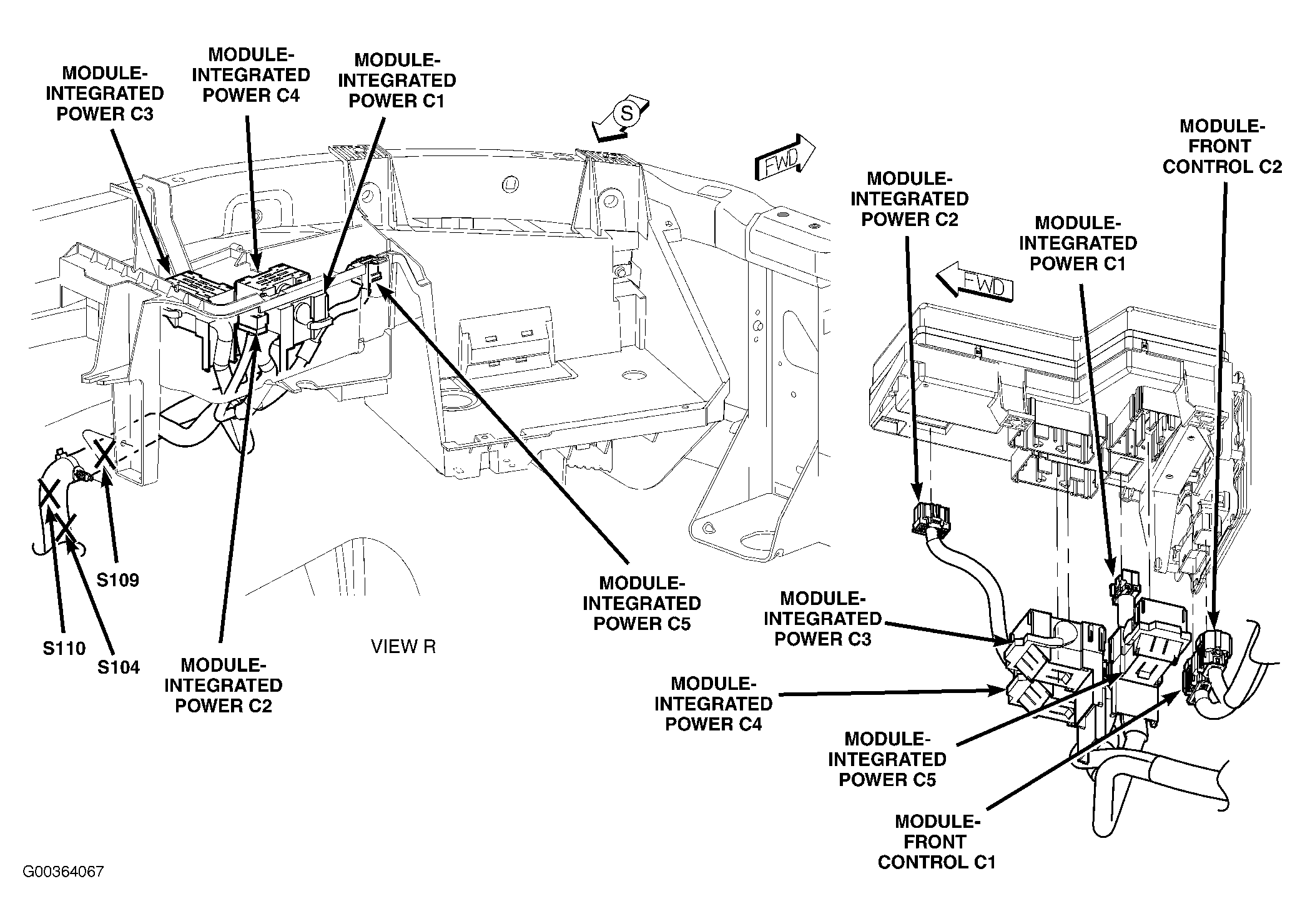

Integrated Power Module At left side of engine compartment. See Figure .
