< 2.4L Engine >

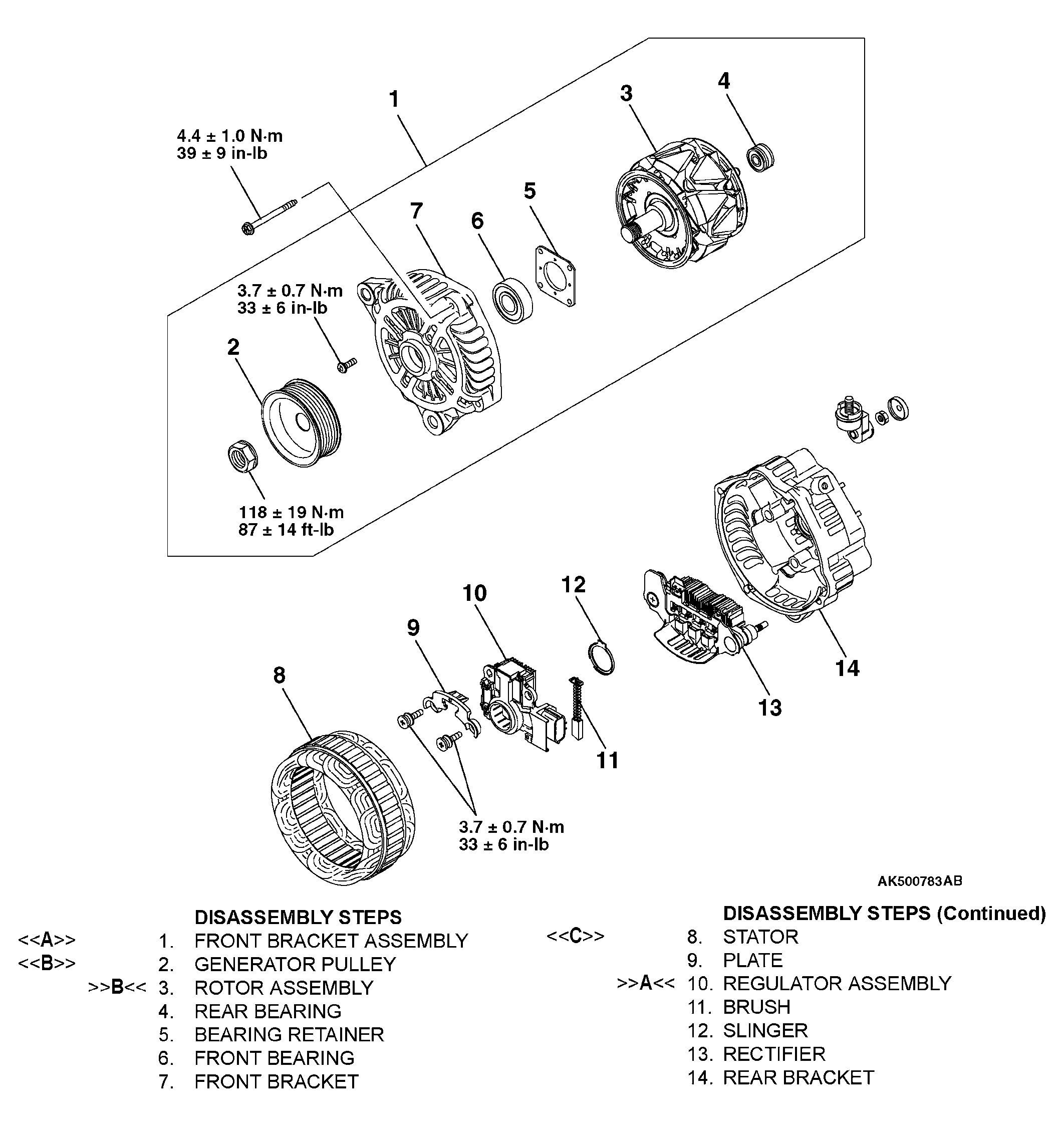

Fig 1: Exploded View Of Generator Assembly With Torque Specifications (2.4L Engine)
G04237076Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
