<< B >> Generator Pulley Removal

CAUTION: Make sure not to damage the rotor.

Set the pulley upward, clamp the rotor in a vise, and remove the pulley.

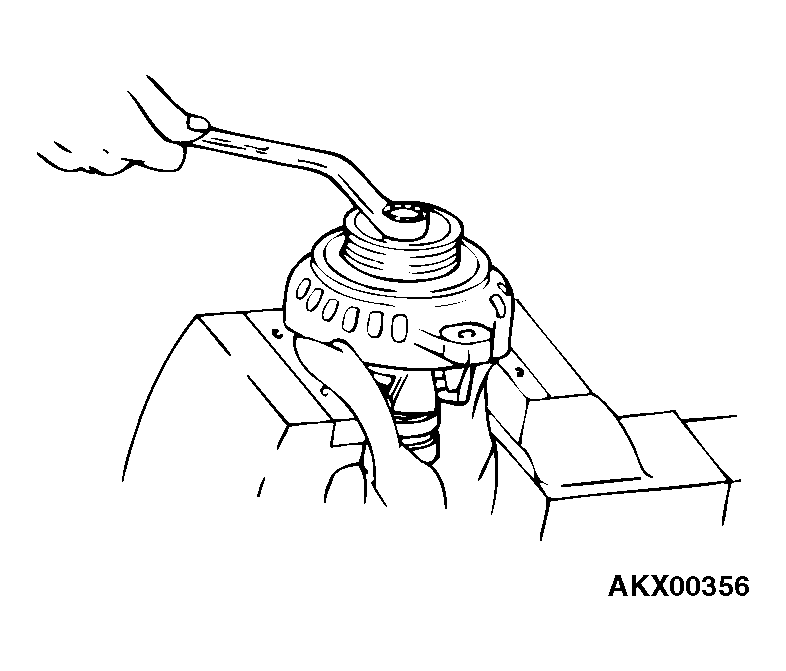

Fig 1: Removing Generator Pulley

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
