Removal And Installation < 3.8L Engine >: Notes

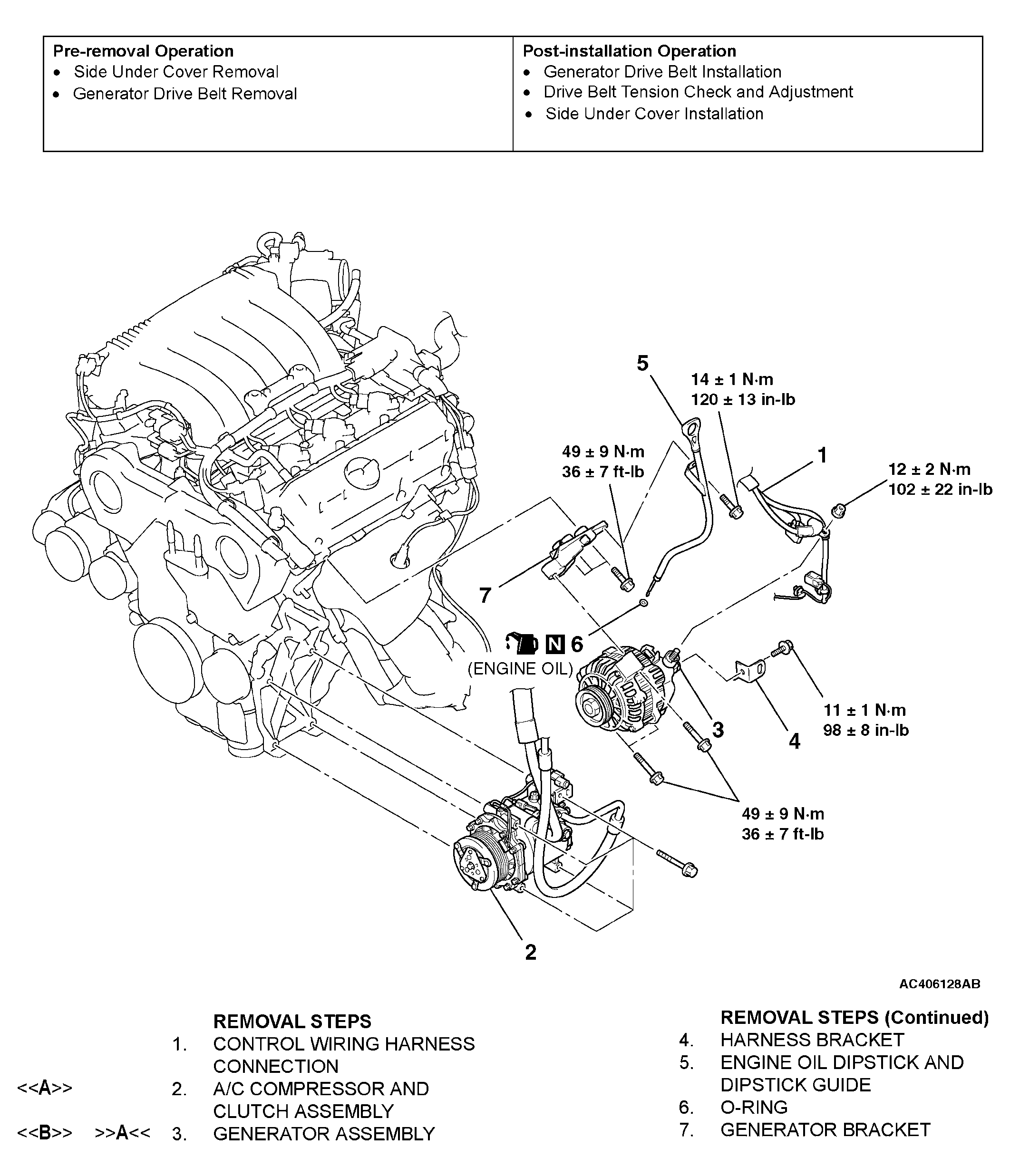

Fig 1: Removing Generator Assembly Components With Torque Specifications (3.8L Engine)
G04237074Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
