>> K << Steering Gear Plug (End Plug) Installation

  1. Apply 3MTM AAD Part number 8661, 8663, 8672, 8678, 8679 or equivalent to the threaded part of the end plug.
  2. Secure the threaded portion of the end plug at two places by using a punch.

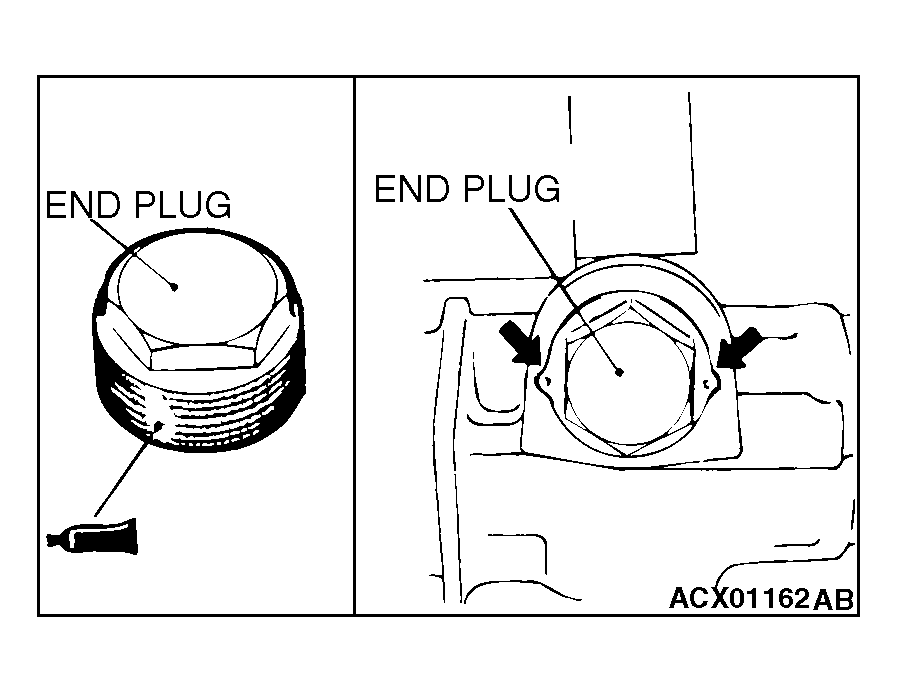

    Fig 1: Identifying End Plug
    G04237443Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
