Assembly Service Points

Using special tools MD998812, MD998814 and MD998823, install the 4th drive gear.
Install the spacer to input shaft.

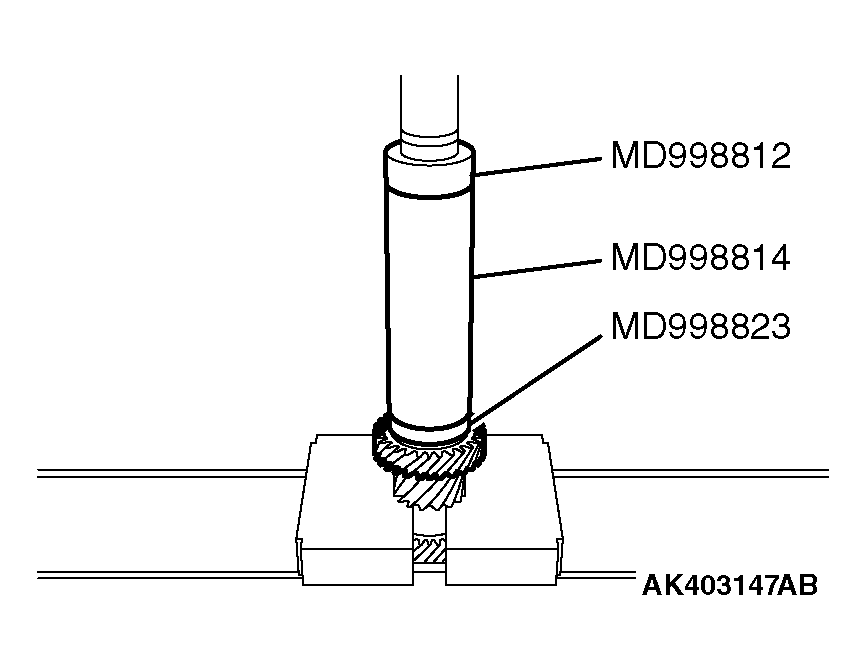

Fig 1: Installing 4th Drive Gear & Spacer To Input Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Using special tools MD998812, MD998813 and MD998823, install the 3rd drive gear.

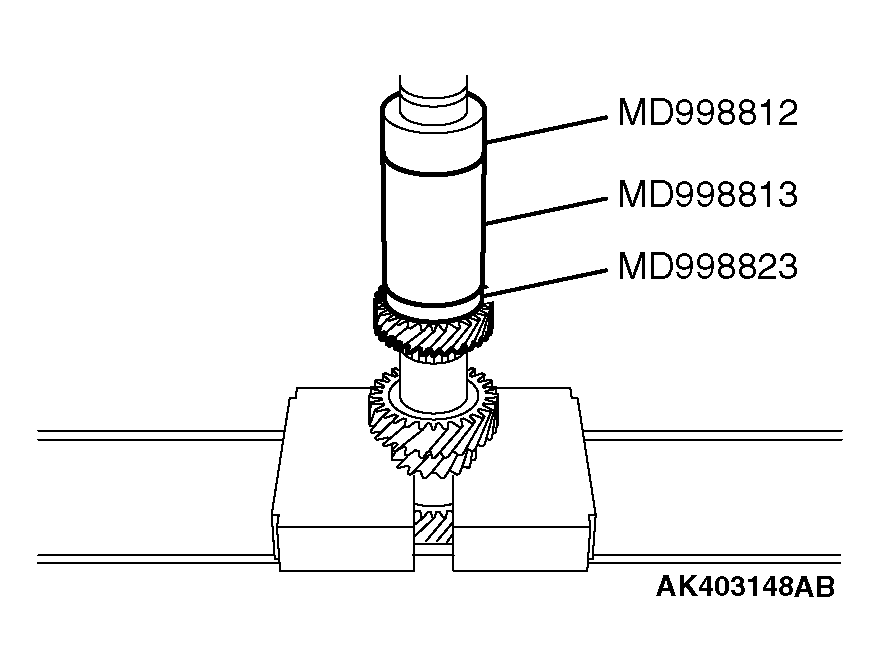

Fig 2: Installing 3rd Drive Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Using special tools MD998812, MD998813 and MD998823, install the 6th drive gear.
CAUTION: Never push the sealing area at the press fit.

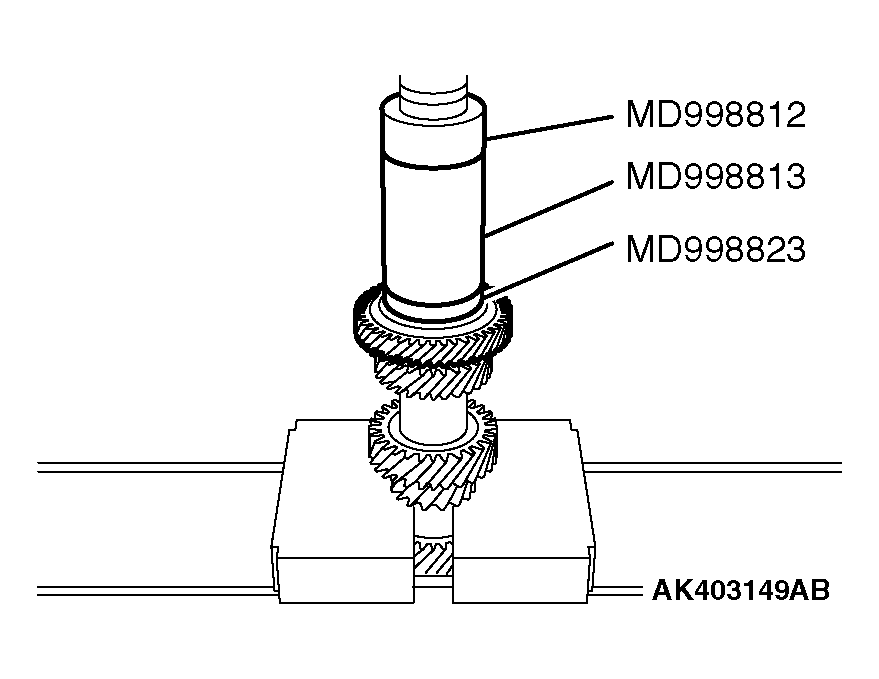

Fig 3: Installing 6th Drive Gear
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the installation direction of the radial ball bearing.

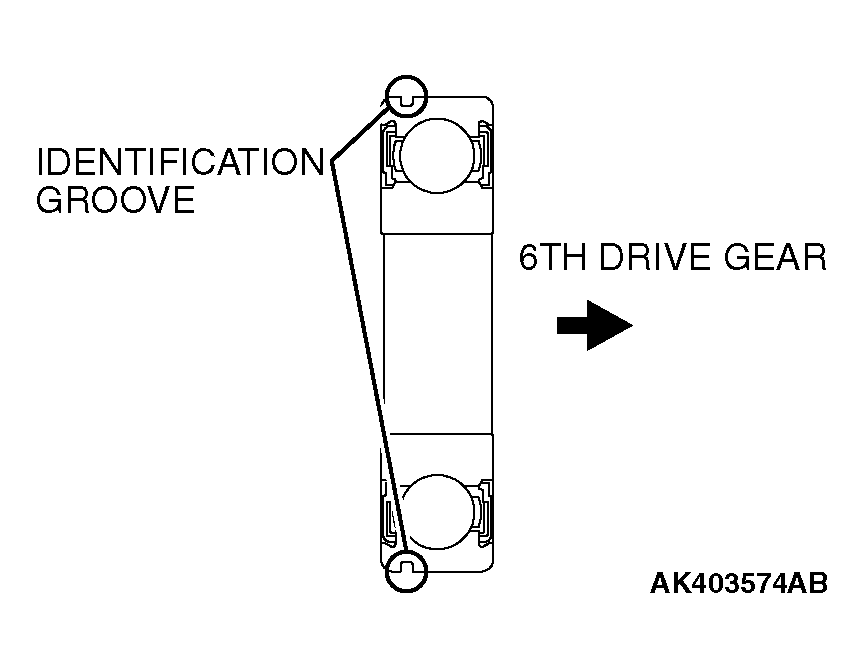

Fig 4: Checking Installation Direction Of The Radial Ball Bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Using special tools MD998812, MD998813 and MD998823, install the radial ball bearing.

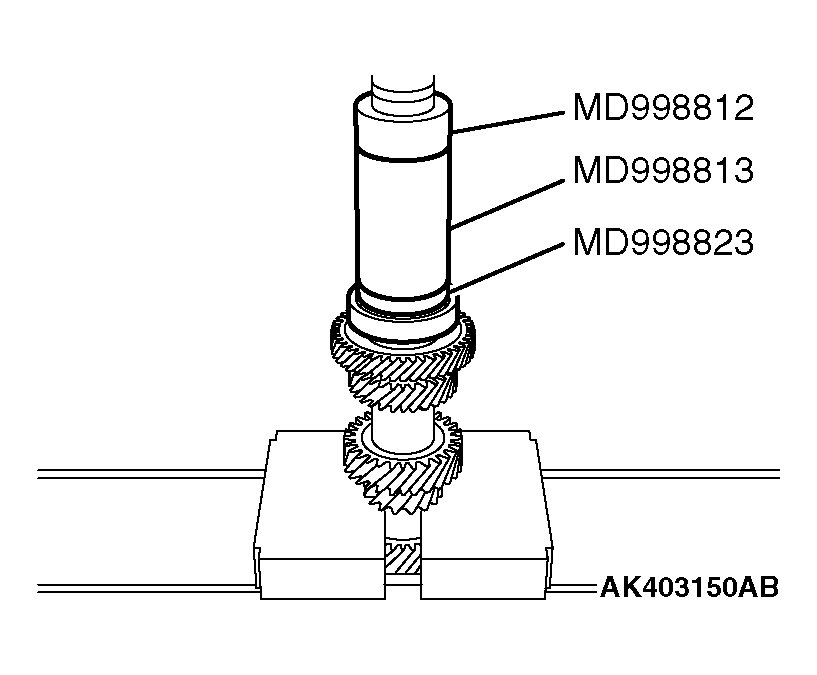

Fig 5: Installing Radial Ball Bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select a shaft snap ring that allows distance of the thrust crevice of radial ball bearing to fall within the standard value range.
Standard value: 0-0.1 mm (0-0.0039 inch)

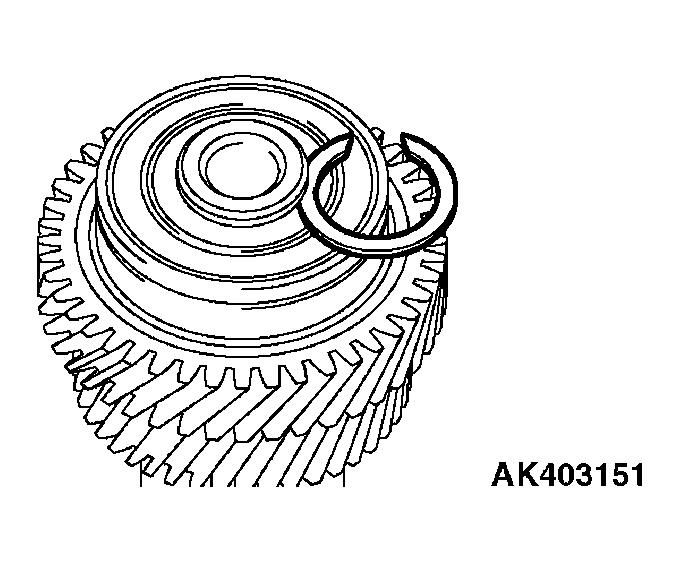

Fig 6: Installing Shaft Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the installation direction of the cylindrical roller bearing.

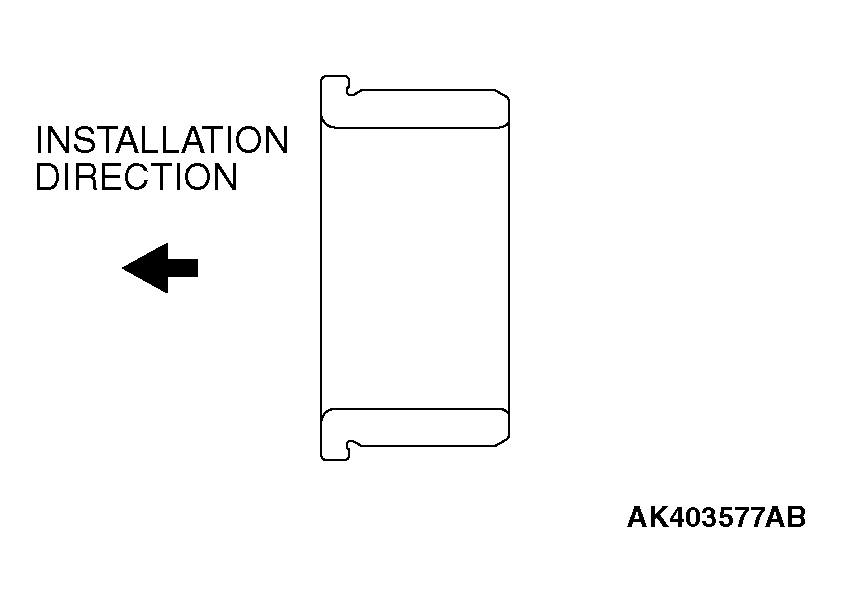

Fig 7: Identifying Installation Direction Of Cylindrical Roller Bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Using special tools MD998812, MD998813 and MD998818, install the cylindrical roller bearing.

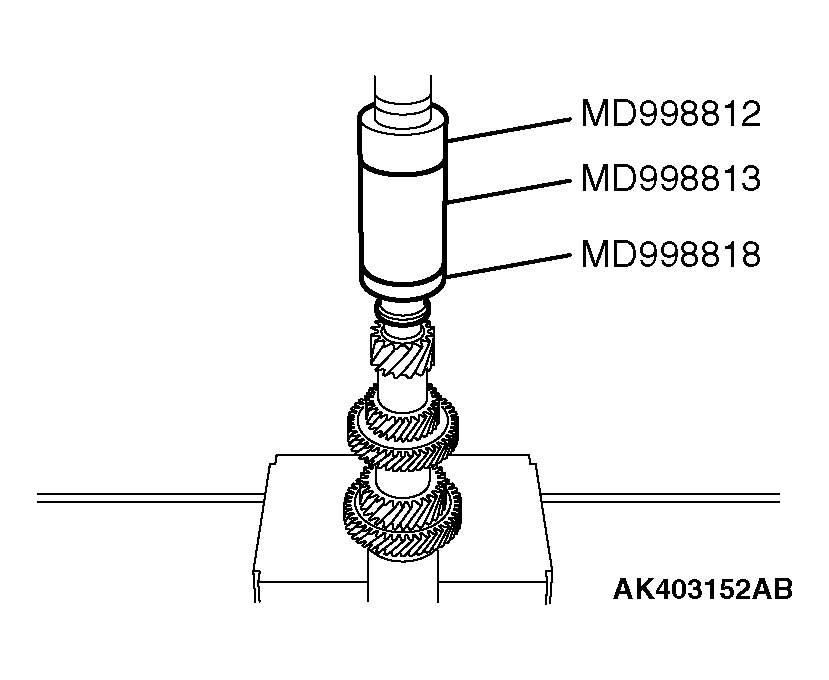

Fig 8: Installing Cylindrical Roller Bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
