Data List Reference Table

DATA LIST REFERENCE TABLE

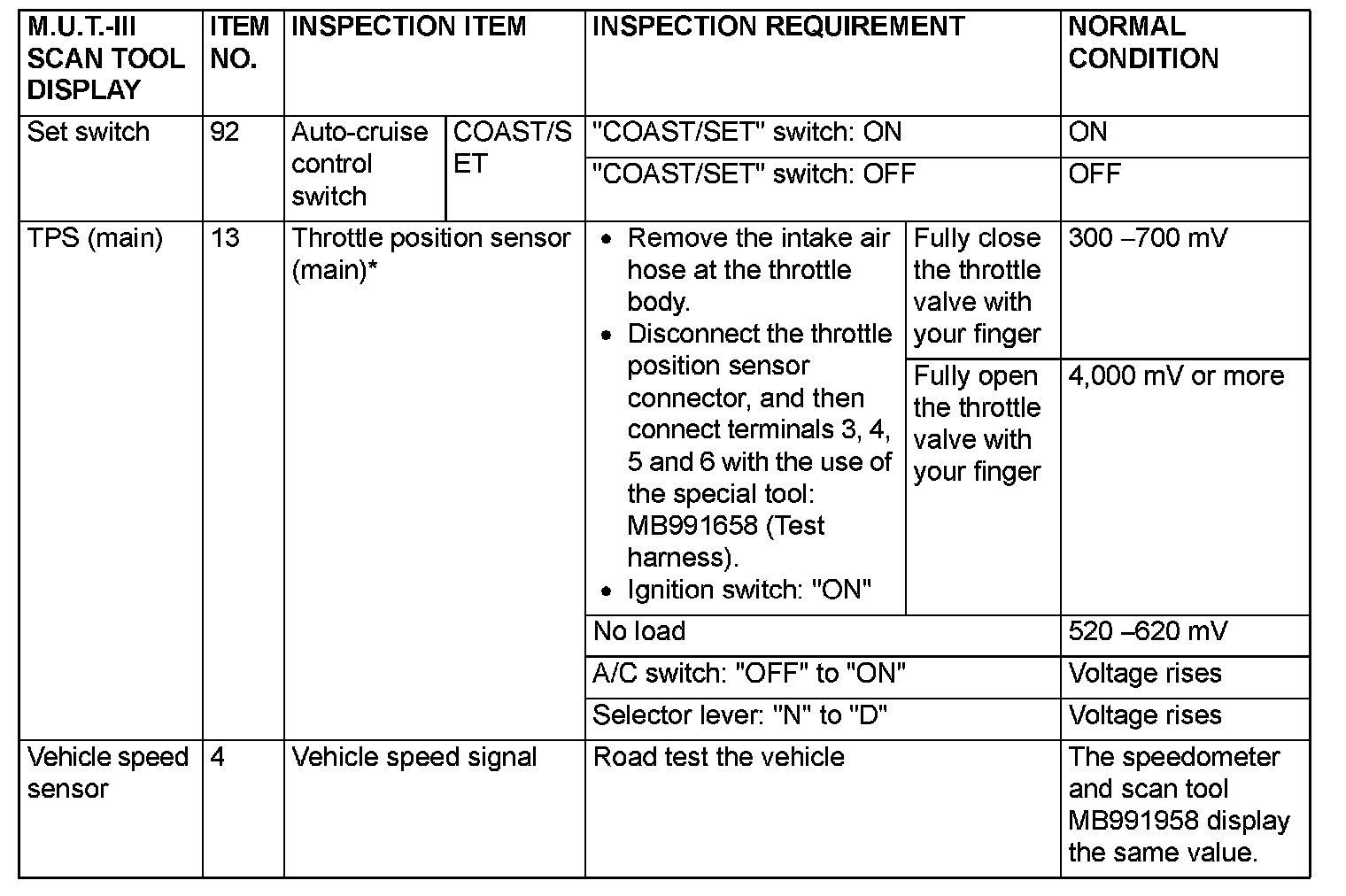

Data List References Table Part 1:

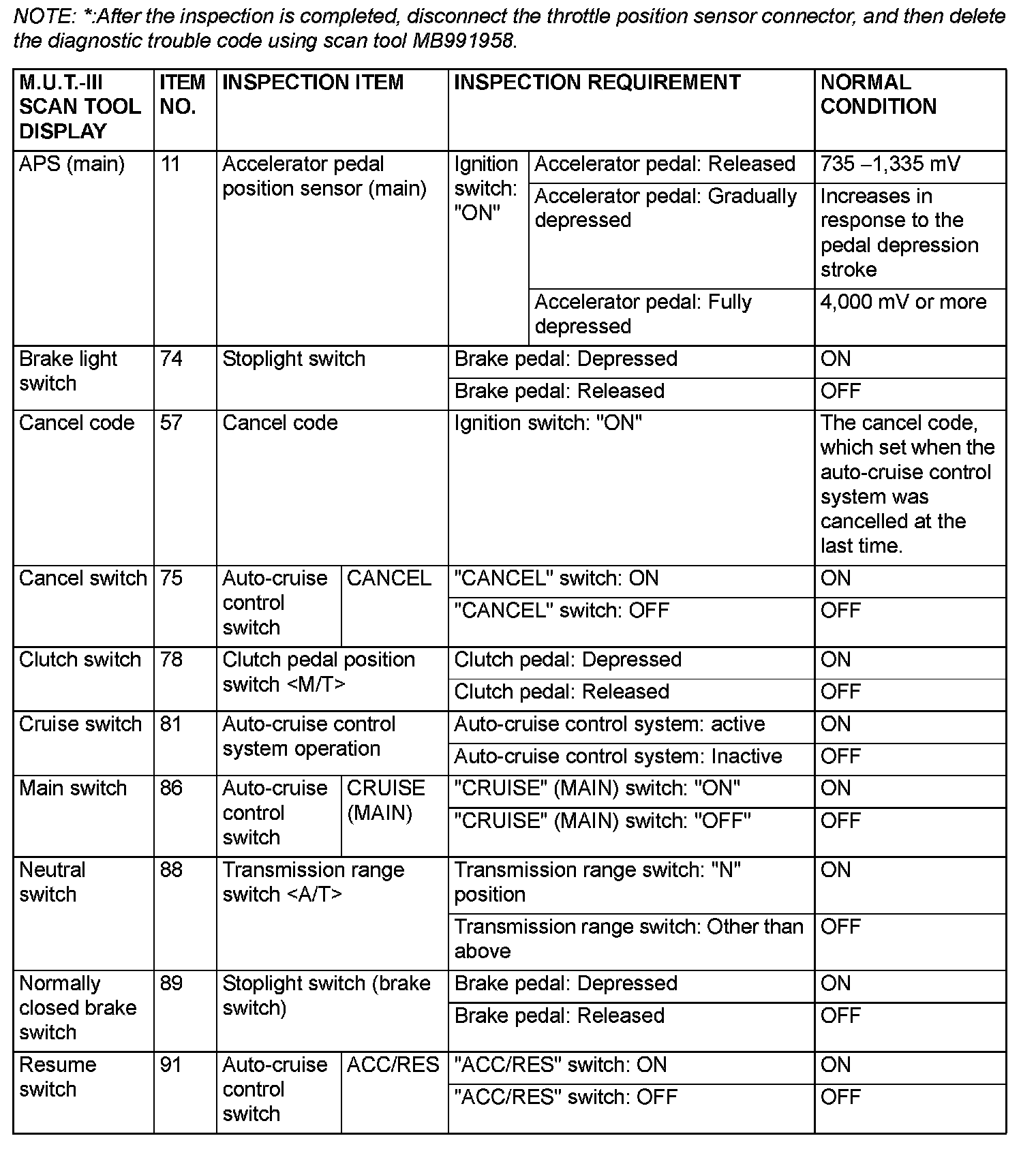

Data List References Table Part 2:






CAUTION:
- Driving tests always need two persons: one driver and one observer.
- When shifting the selector lever to "D" range apply the brakes should be applied so that the vehicle does not move forward .
