Removal and Replacement

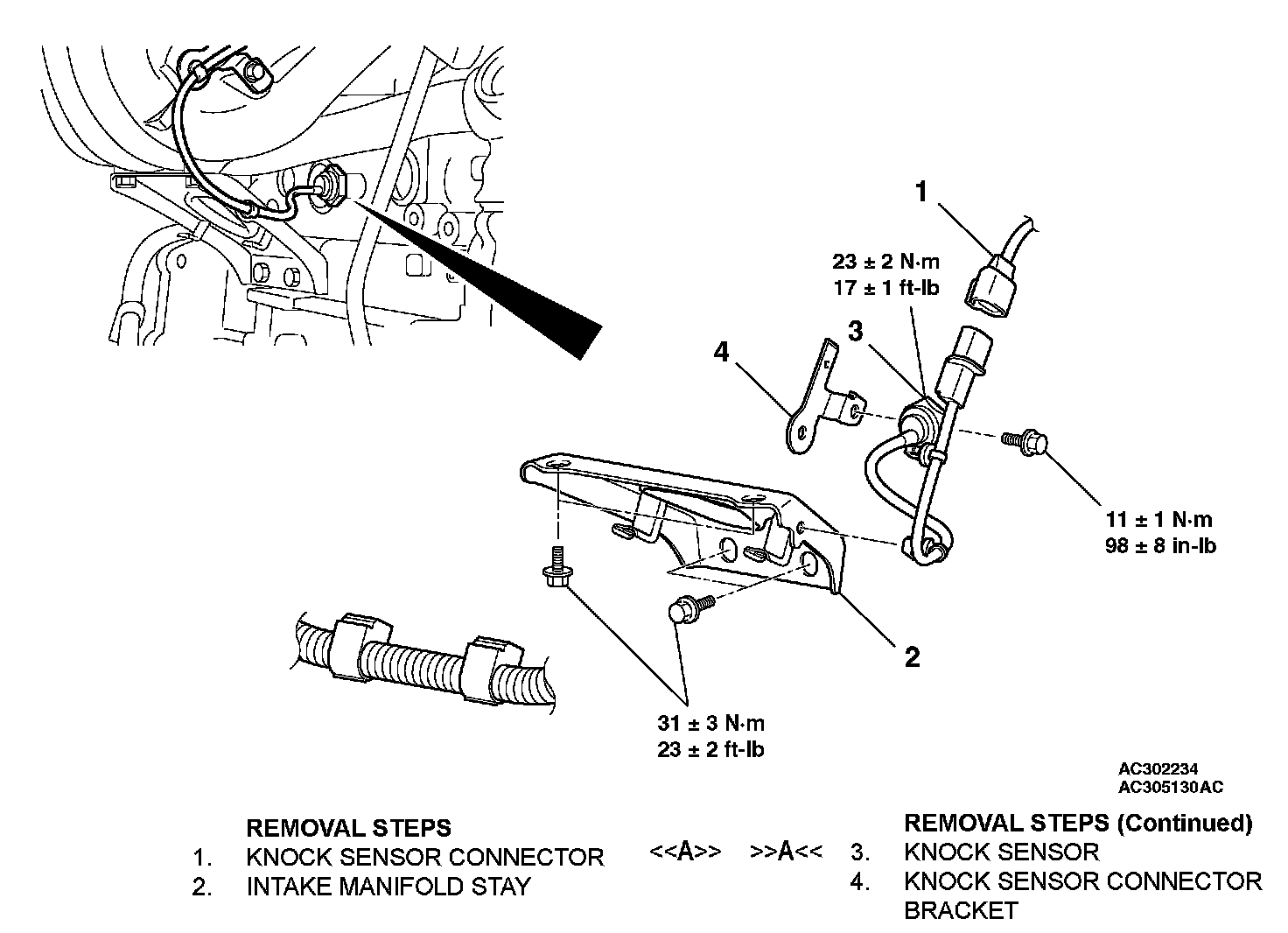

KNOCK SENSORRemoval Steps 1-4:
REMOVAL AND INSTALLATION <2.4L ENGINE>
CAUTION: When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value. (Refer to Initialization Procedure for Learning Value in MFI Engine).
Required Special Tool:
MD998773: Knock Sensor Wrench
REMOVAL SERVICE POINT
<> KNOCK SENSOR REMOVAL

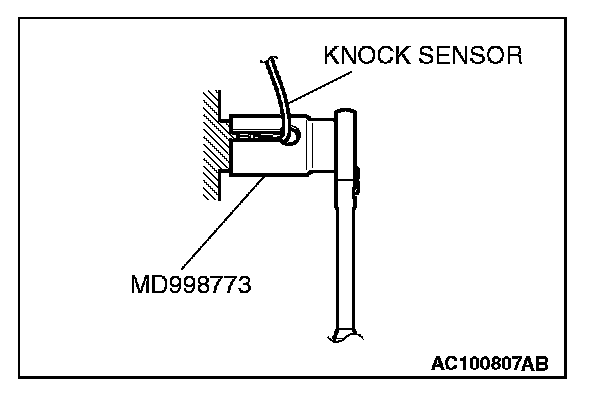

Use special tool MD998773 to remove the knock sensor.
INSTALLATION SERVICE POINT
>>A<< KNOCK SENSOR INSTALLATION

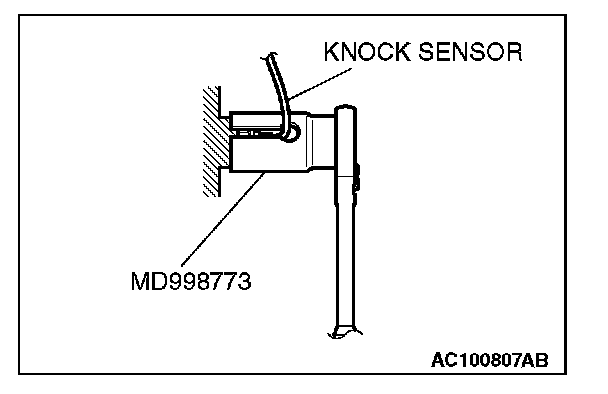

Use special tool MD998773 to tighten the knock sensor to the specified torque in the same manner as removal.
Tightening torque: 23 ± 2 Nm (17 ± 1 ft-lb)
