How to Read Circuit Diagrams

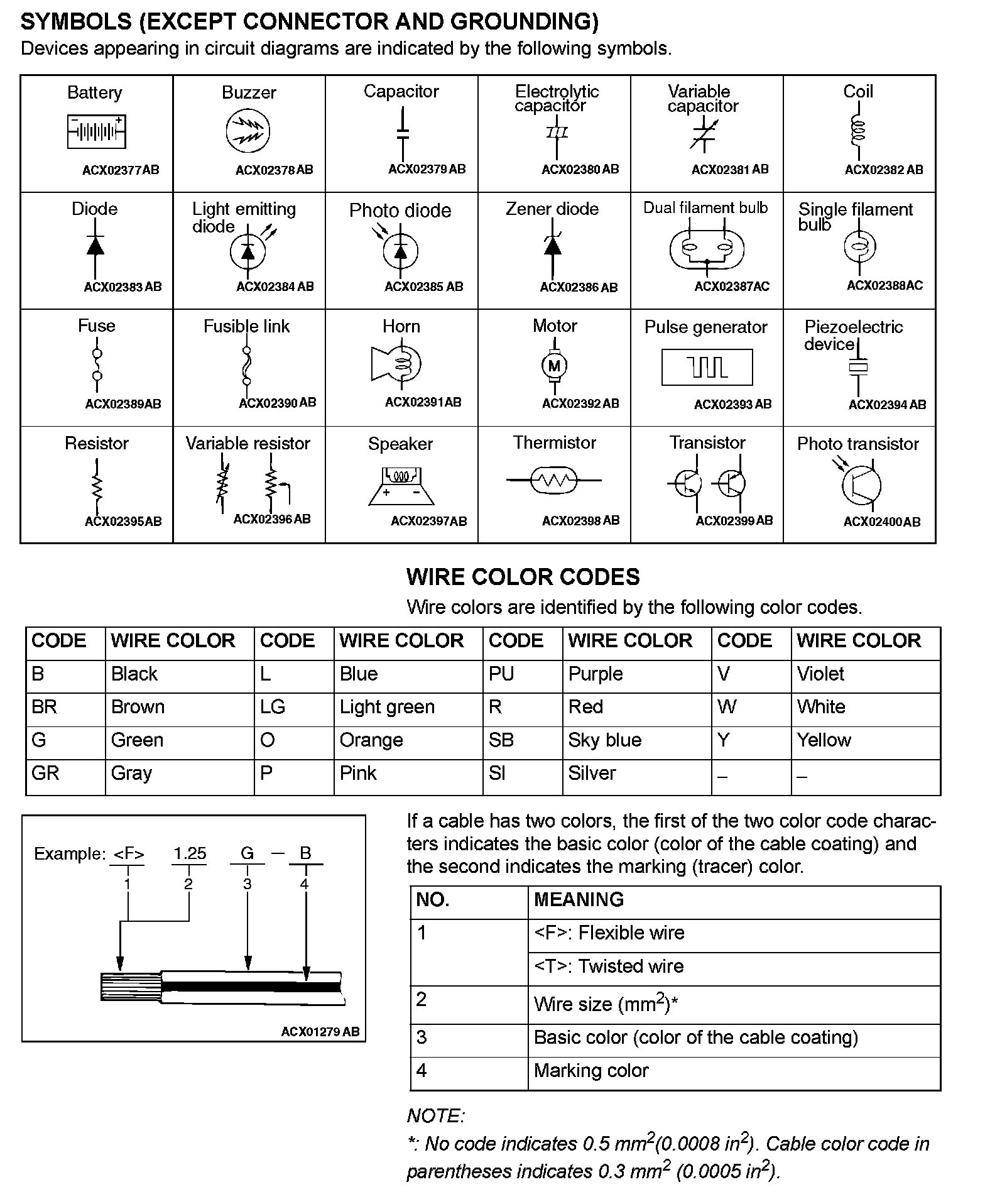

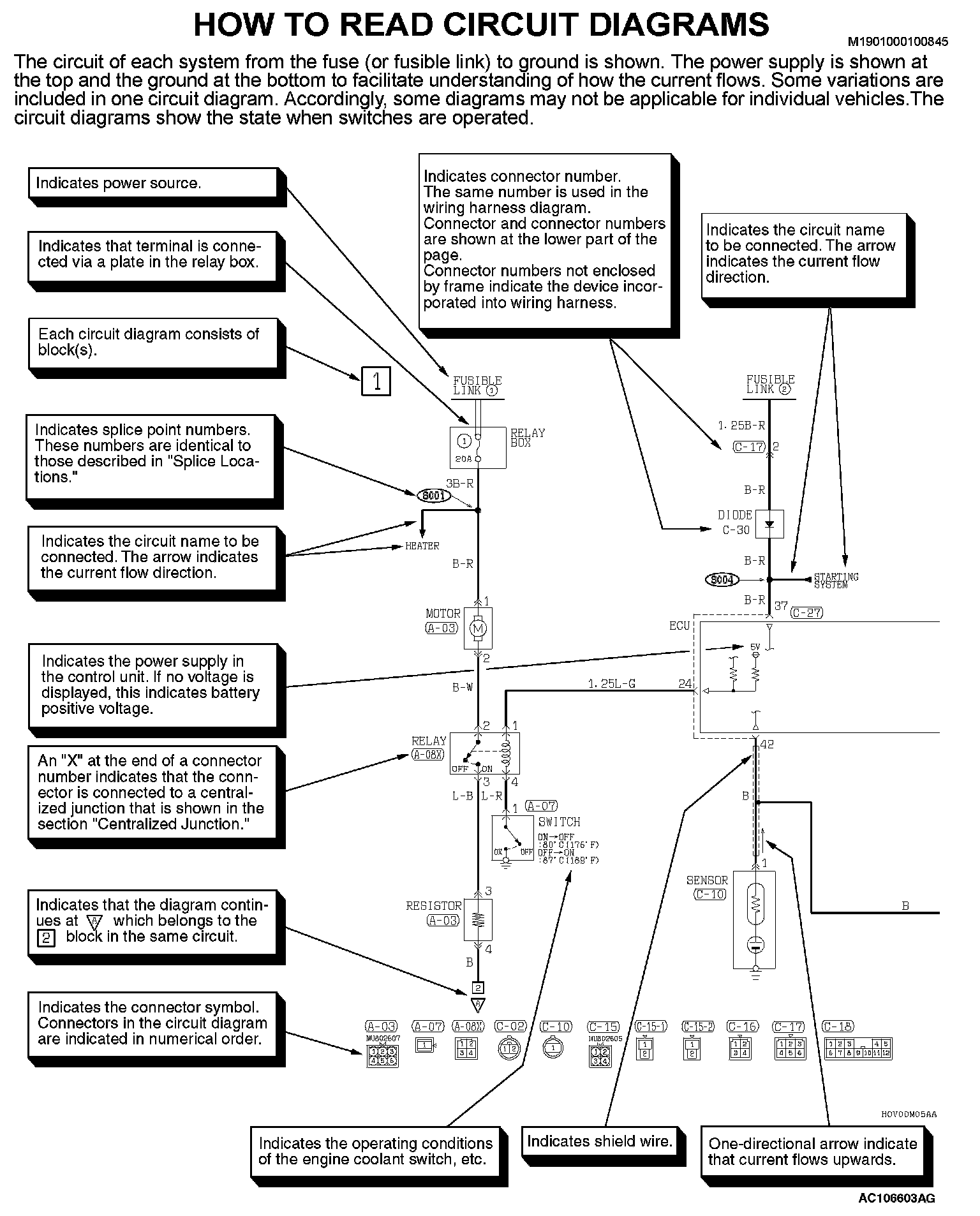

How To Read Circuit Diagrams (Part 1):

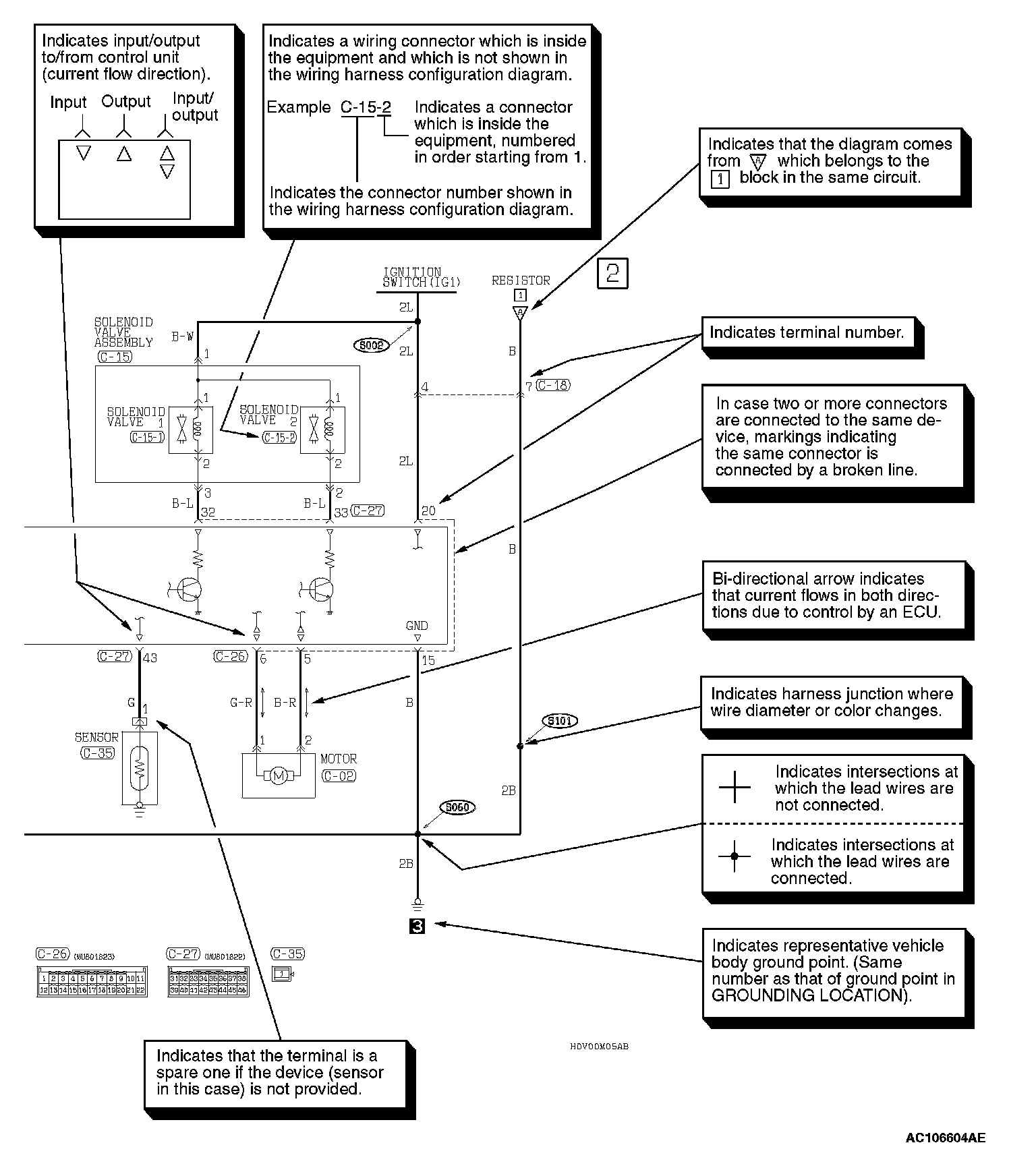

How To Read Circuit Diagrams (Part 2):

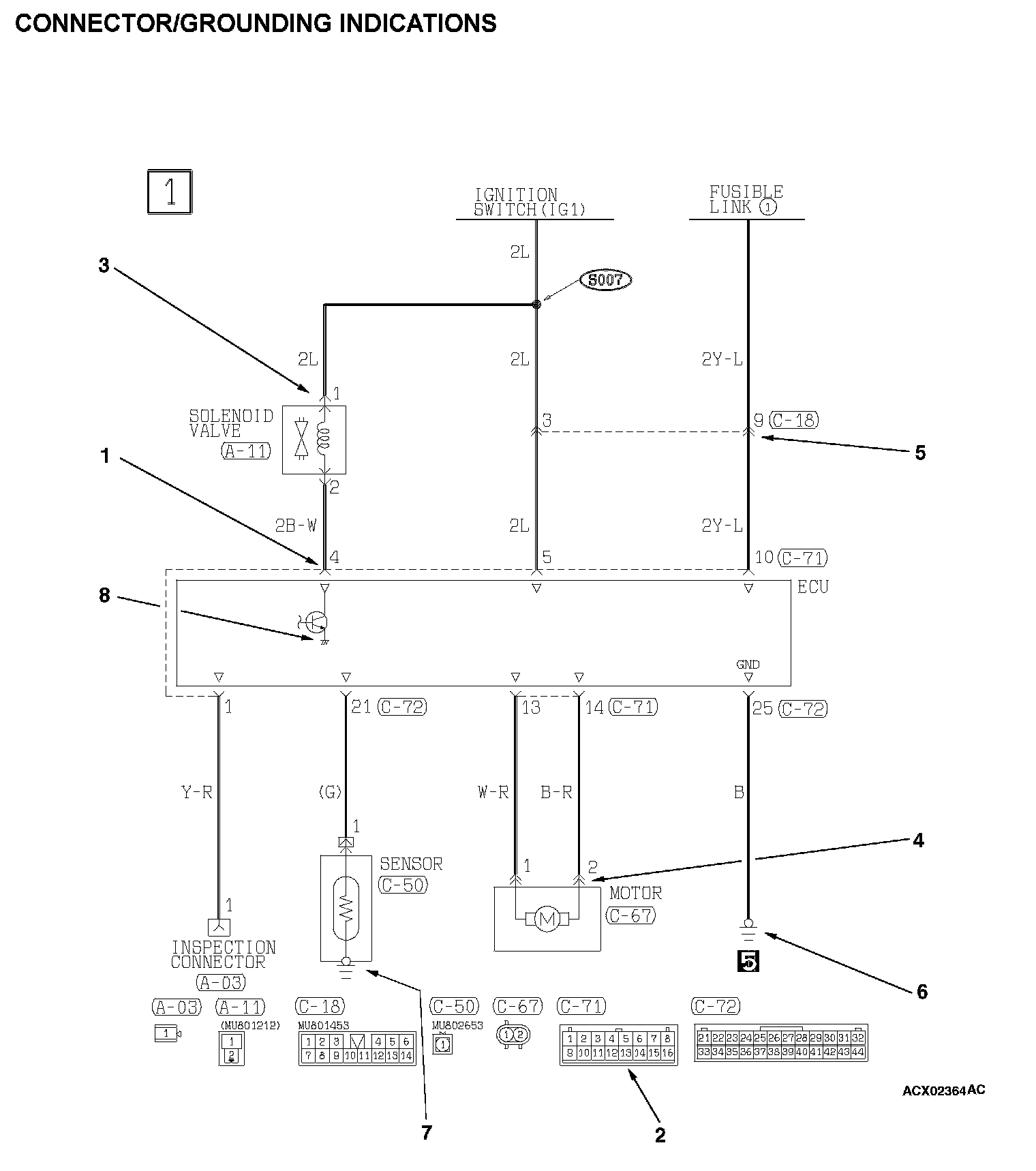

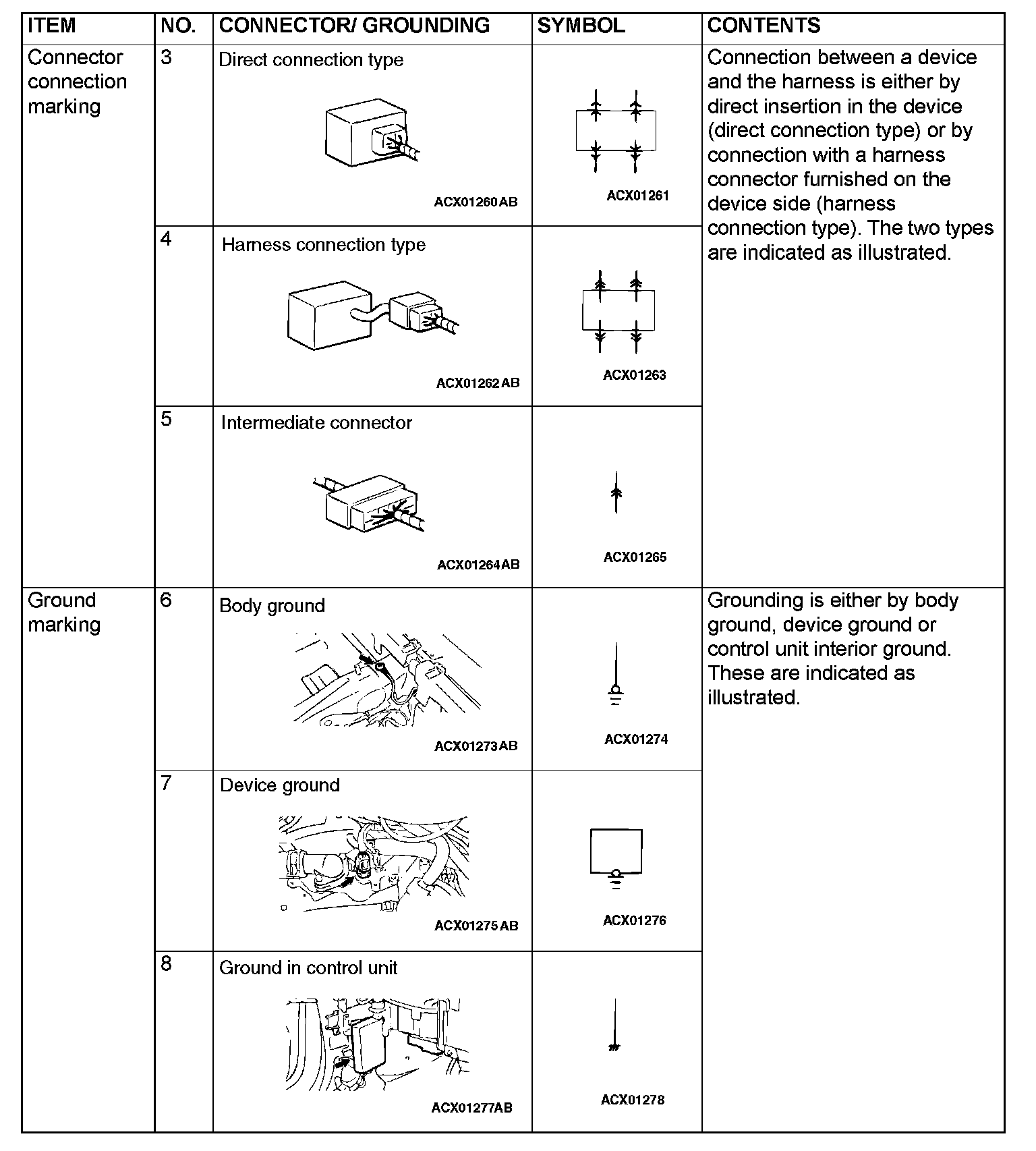

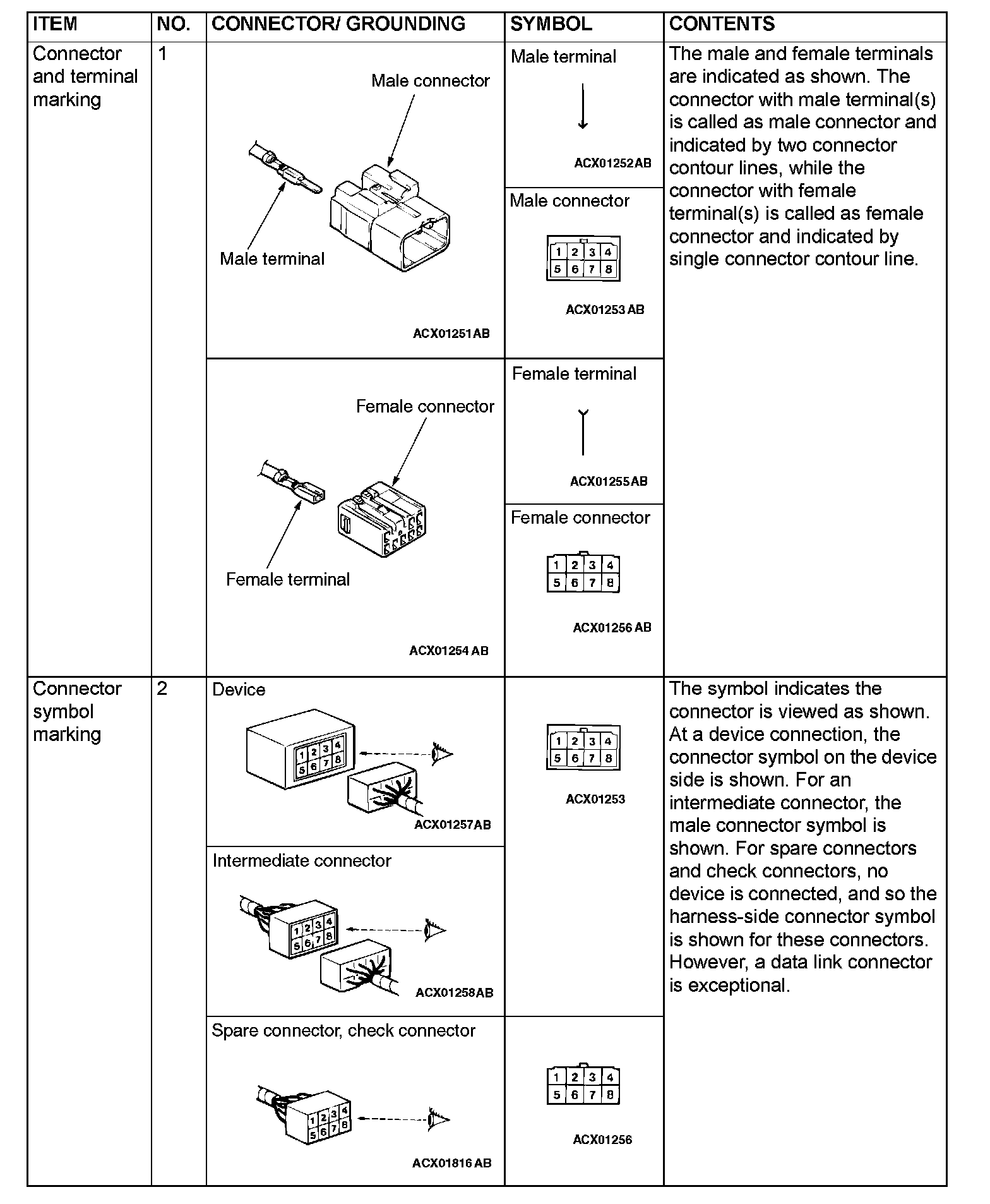

Connector/Grounding Indications:
