Convertible Top Control Module: Service and Repair

CONVERTIBLE TOP CONTROL MODULE

REMOVAL AND INSTALLATION

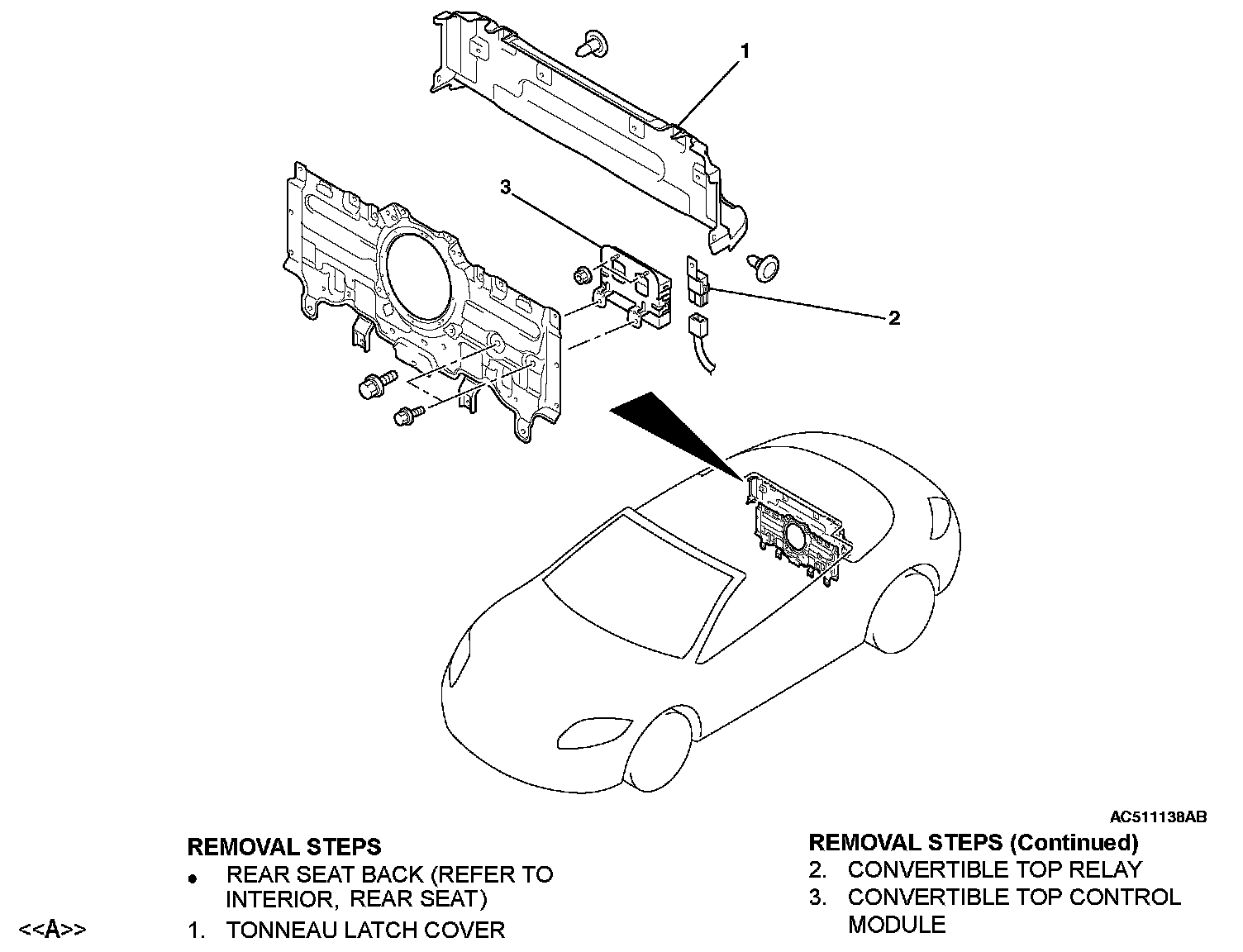

Removal Steps 1-3:

REMOVAL SERVICE POINT

[[A]] TONNEAU LATCH COVER REMOVAL

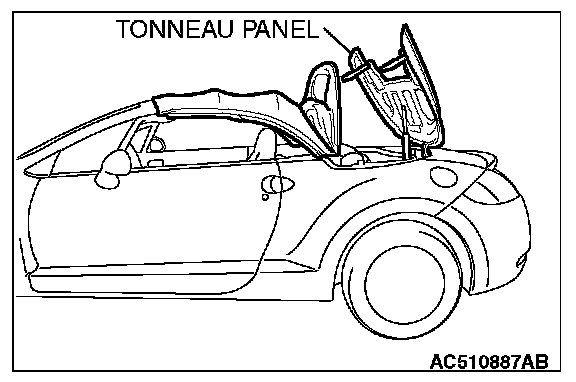

1. 5-bow and tonneau panel are opened.

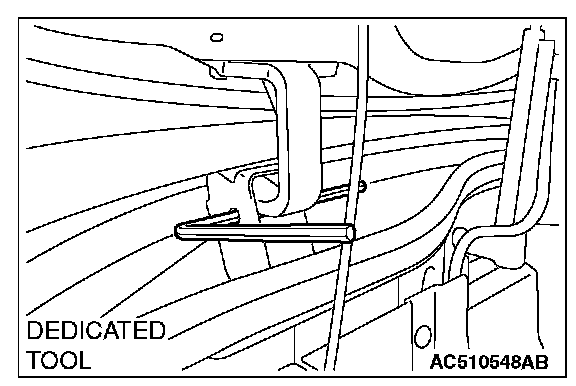

2. Raise the tonneau panel, and insert the dedicated tool into the hinge hole to hold the tonneau panel in place.
3. Remove the tonneau latch cover.
