>> N << Steering Gear Washer (Tab Washer)/Steering Tie Rod Installation

After installing the tie rod to the rack, fold tab washer end (two locations) to tie rod notch.

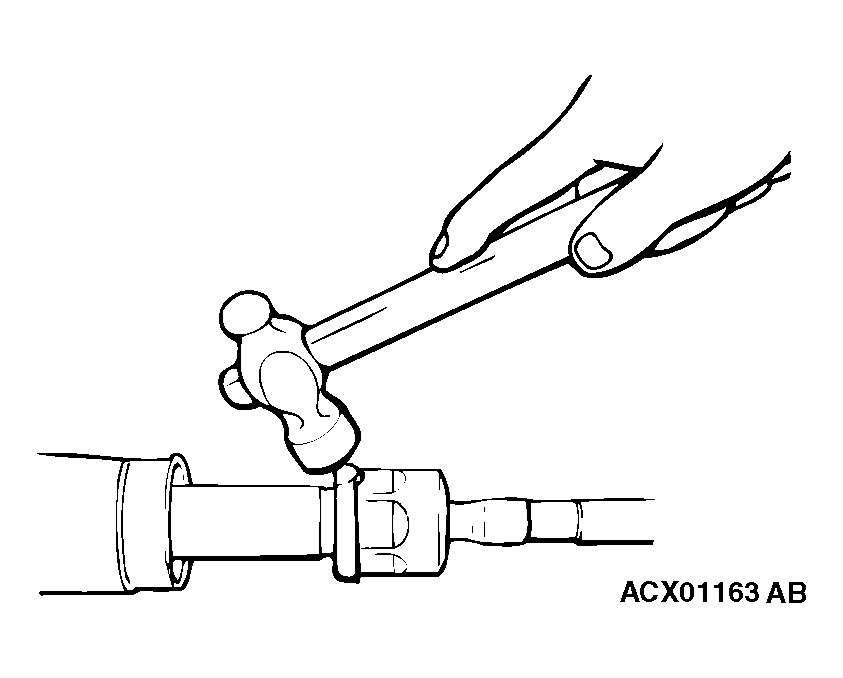

Fig 1: Identifying Steering Tie Rod
G04237446Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
