DTC P1766 (P0715): Input Shaft Speed Sensor System (Short Circuit/Open Circuit): Notes

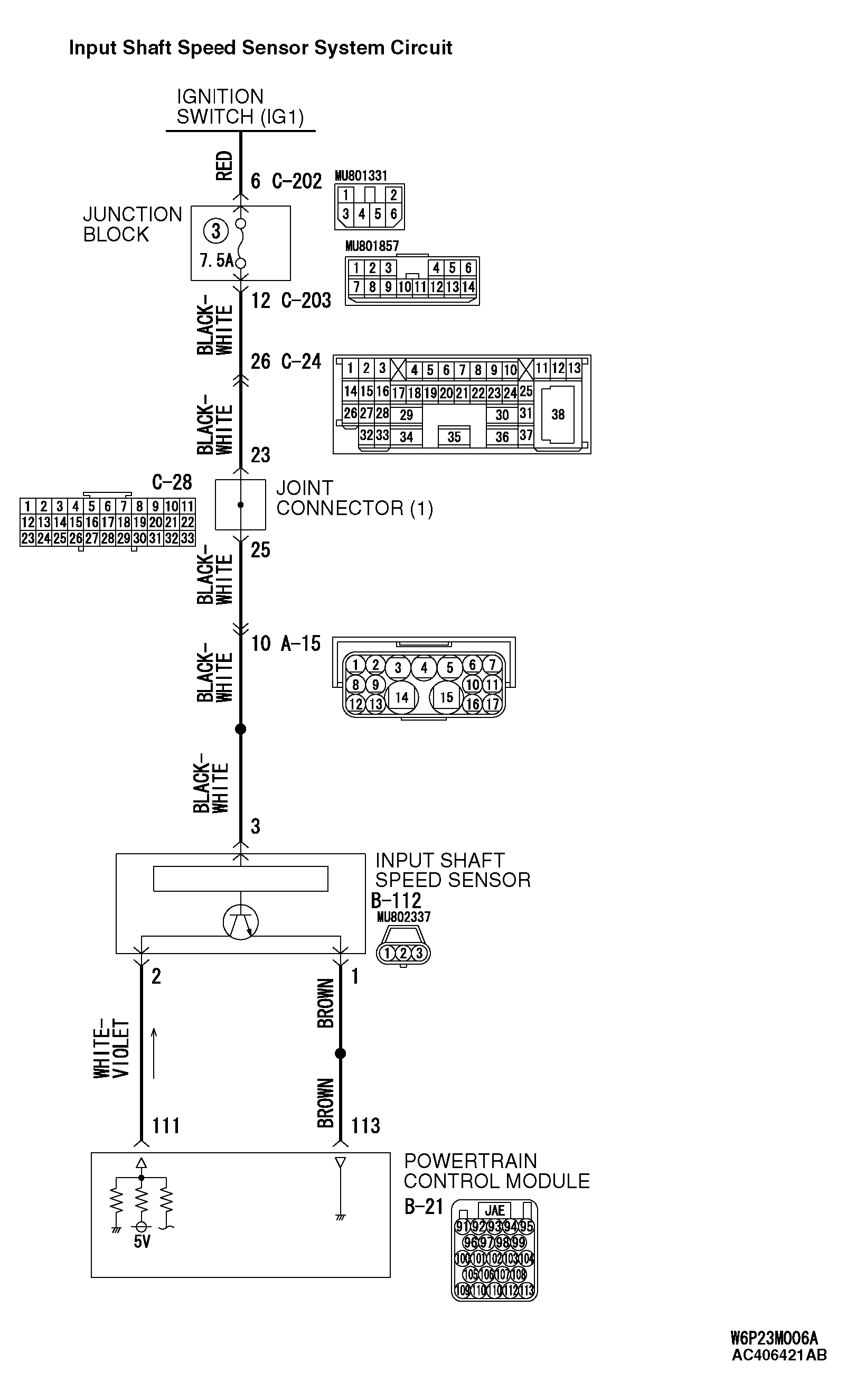

Fig 1: Input Shaft Speed Sensor System Circuit Diagram
G04230638Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Connector C-202 & C-23 Terminals
G04240685Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
