DTC P1770 (P0705): Transmission Range Switch System (Open Circuit): Notes

CAUTION: If DTC P1770 (P0705) has been set, TCL related DTC C1397 is also set. After DTC P1770 (P0705) has been diagnosed, don't forget to erase DTC C1397.

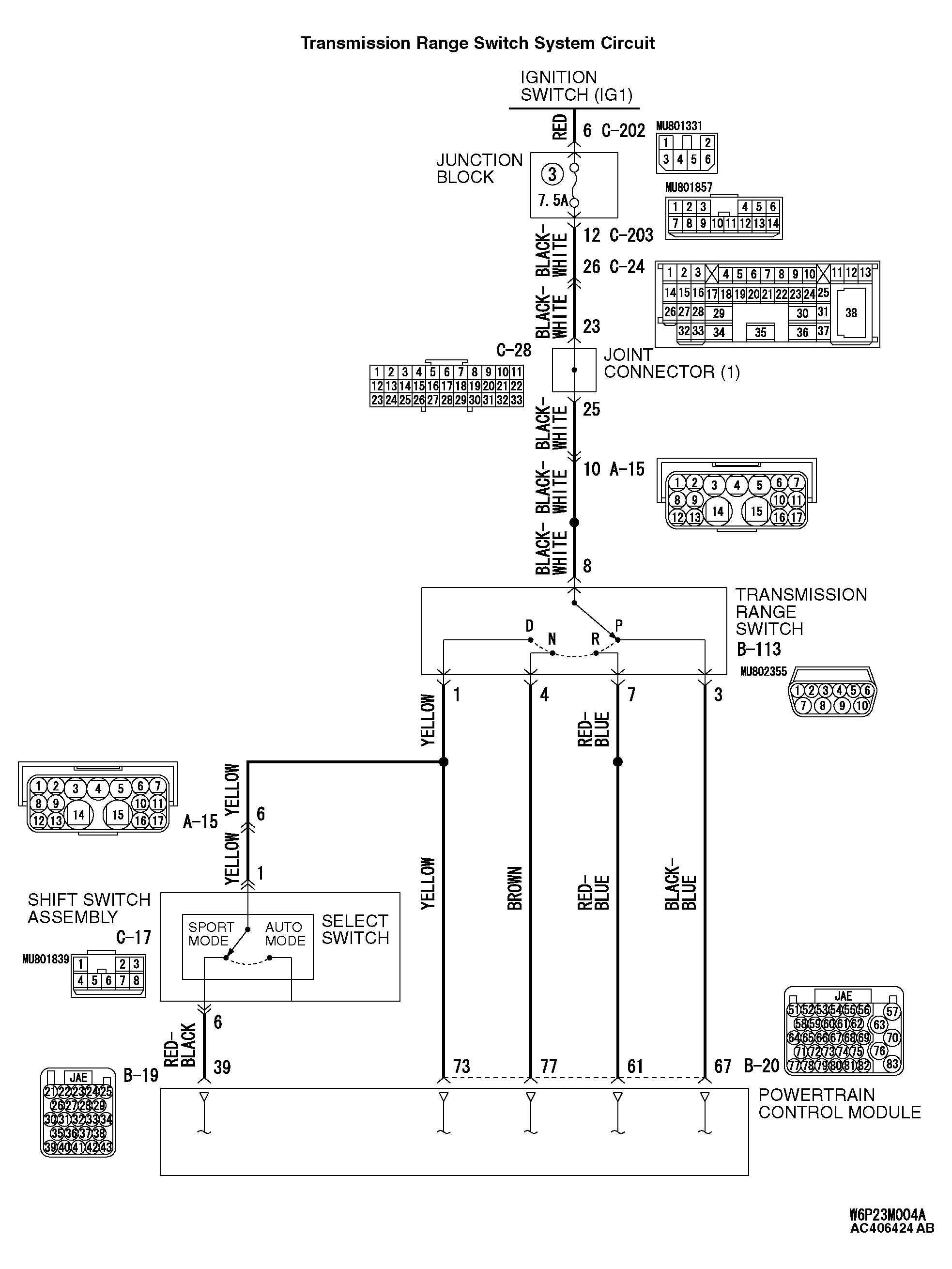

Fig 1: Transmission Range Switch System Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying Connector C-202 & C-23 Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
