Logic Flow Charts (Monitor Sequence): Notes

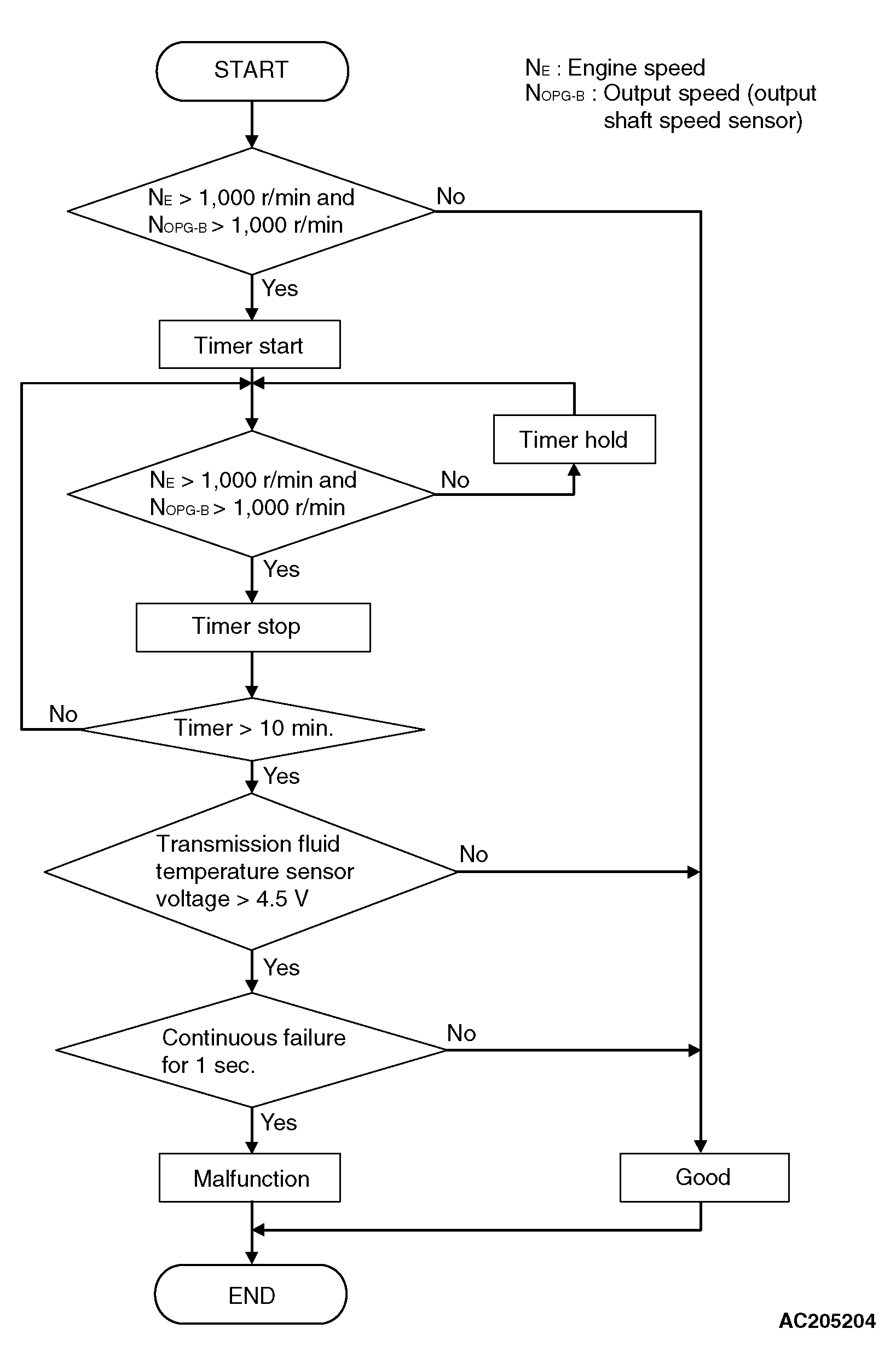

Fig 1: Logic Flow Charts (Monitor Sequence)
G04230596Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

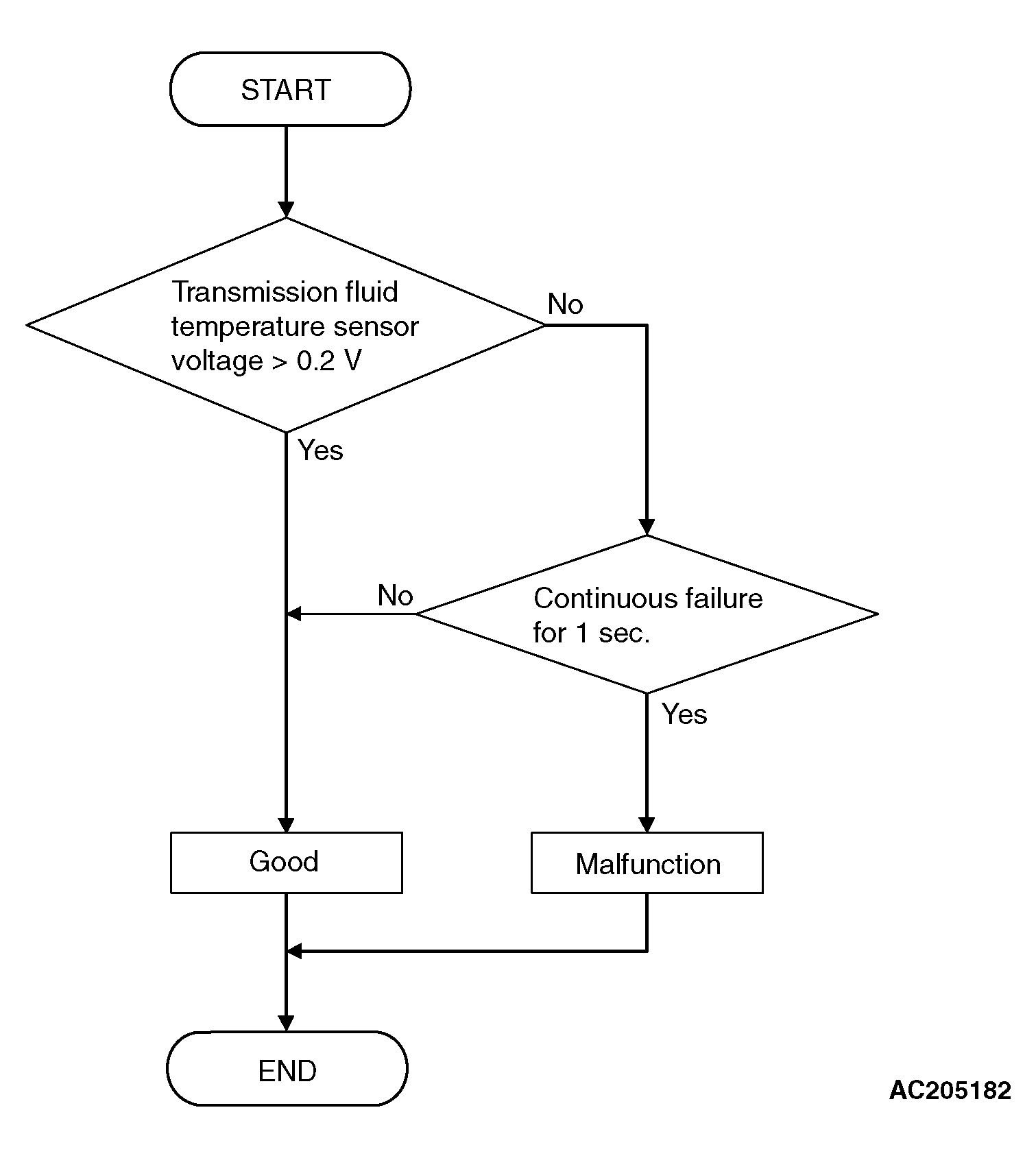

Fig 1: Logic Flow Charts (Monitor Sequence)
G04230622Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

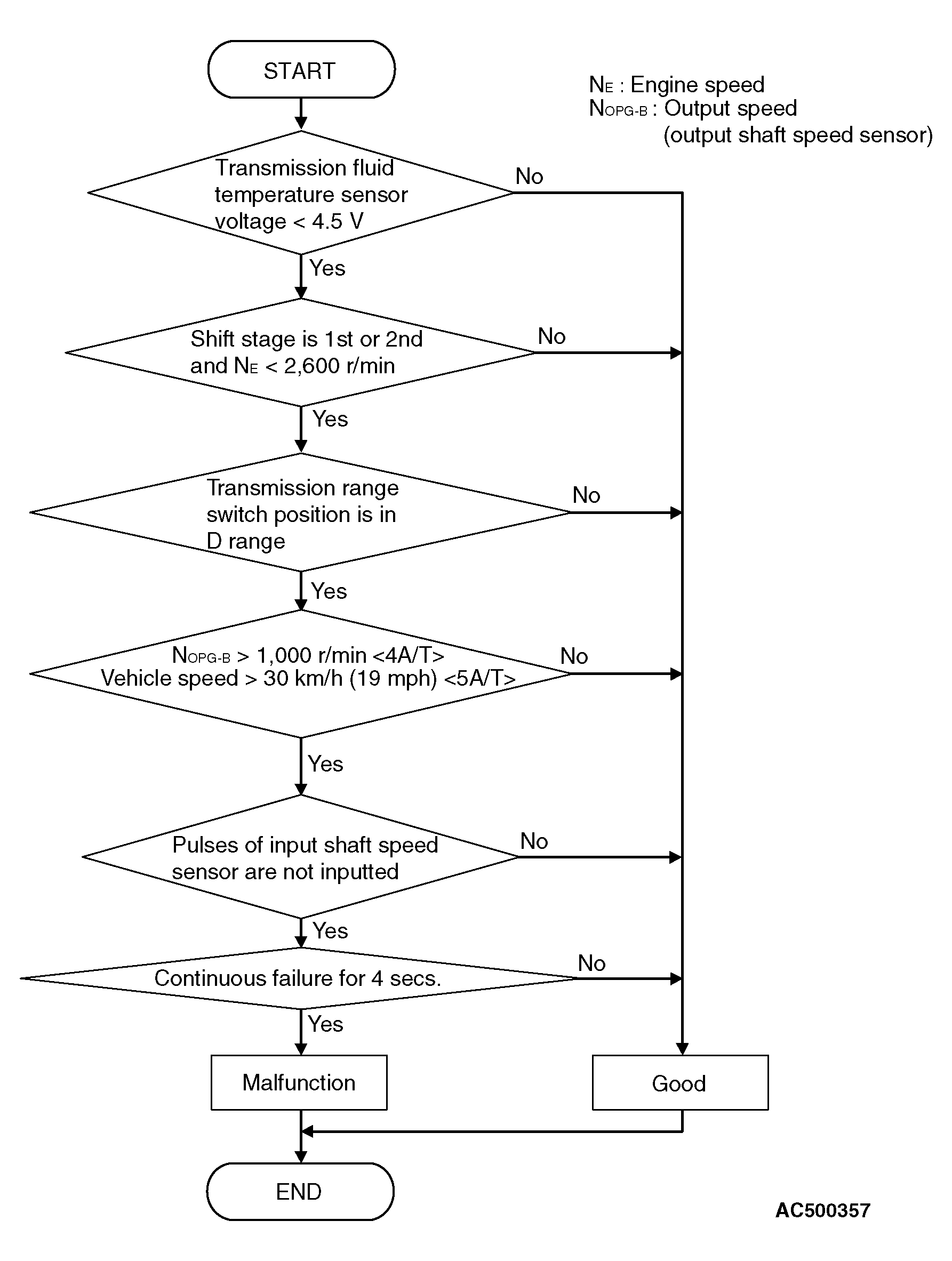

Fig 1: Logic Flow Charts (Monitor Sequence)
G04230641Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
