Inspection Procedure 15: Shift Switch Assembly System: Notes

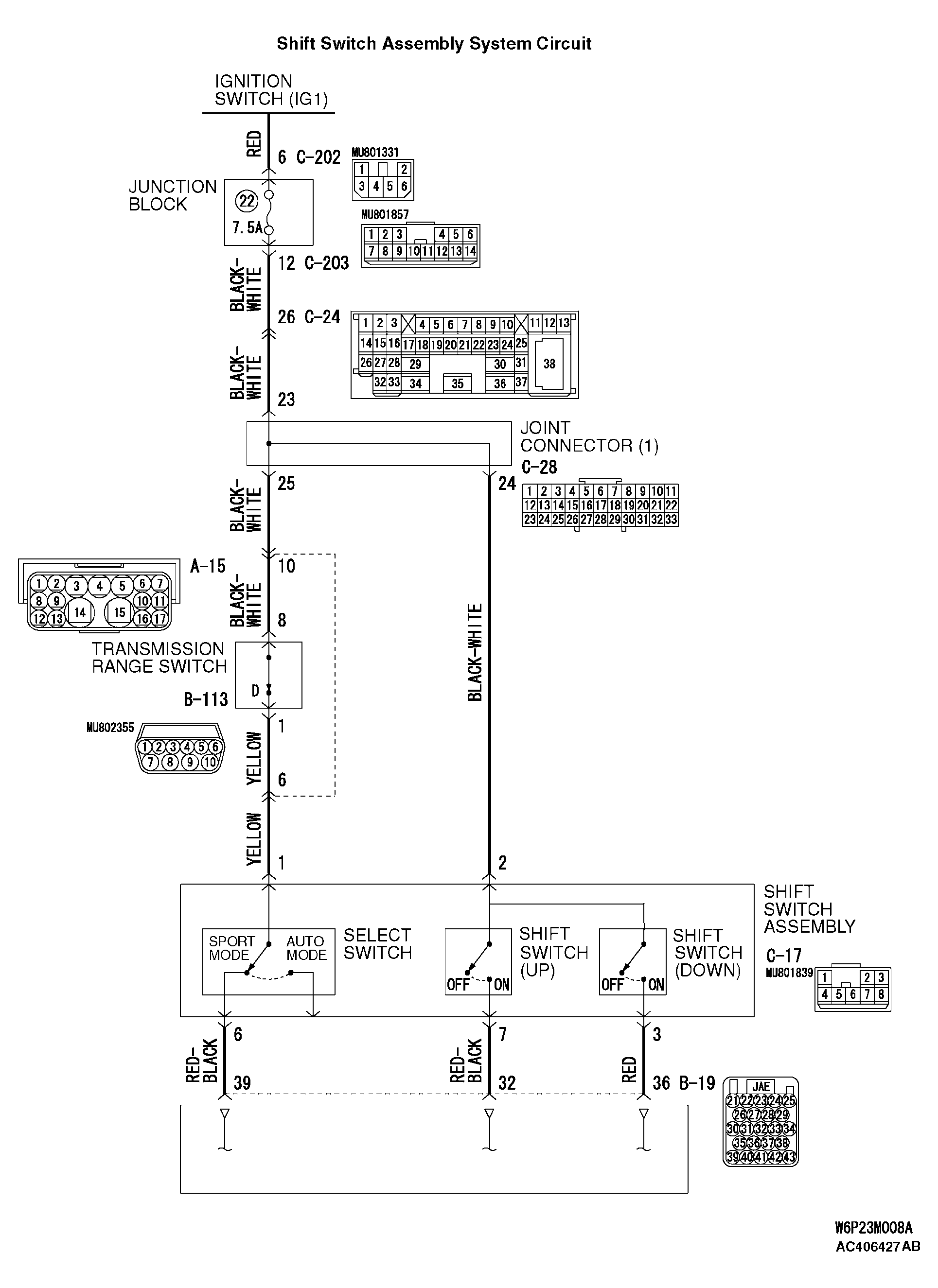

Fig 1: Identifying Shift Switch Assembly System Circuit (1 Of 3)
G04231085Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Identifying Connector C-202 & C-23 Terminals
G04240685Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
