Upshift Pattern < 5A/T >

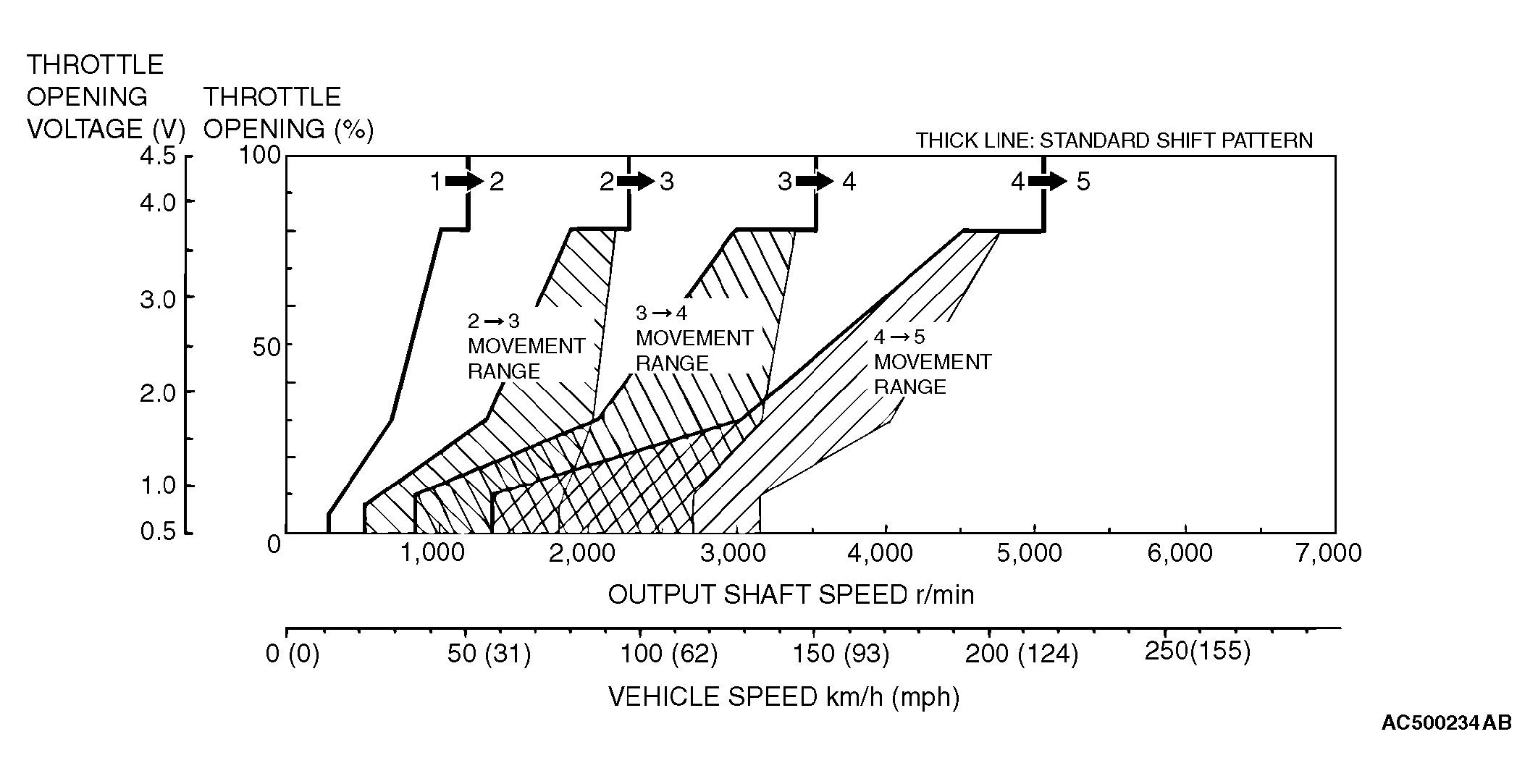

Fig 1: Identifying Upshift Pattern (5A/T)
G04230554Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Within 2-to-3 and 3-to-4 movement ranges, the PCM adjusts shift points according to the driving conditions by memorizing the accelerator pedal stroke and braking timing.
