Sectional View < 5A/T >

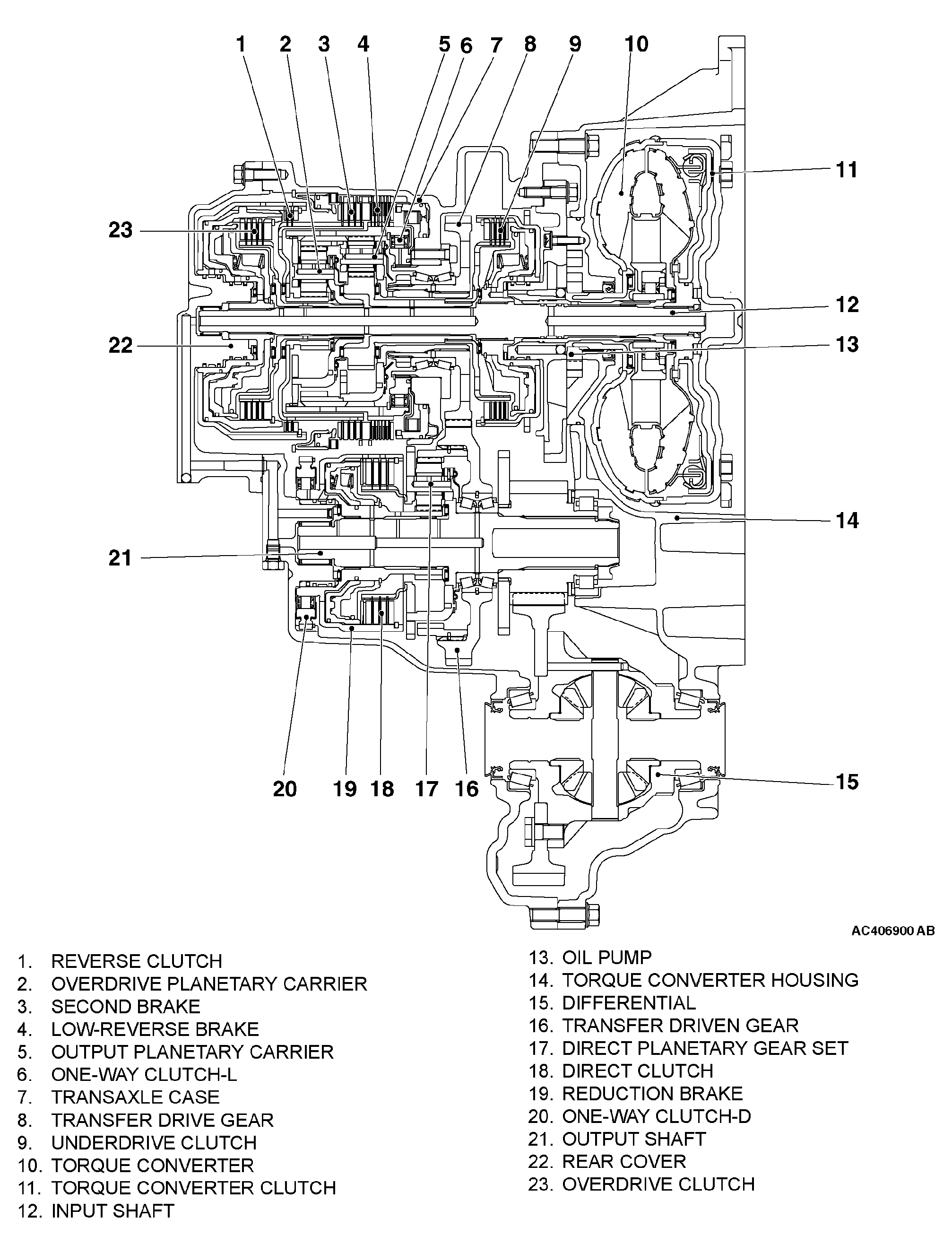

Fig 1: Cross-Sectional View Of Automatic Transaxle (5A/T)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
