>> A << Transaxle Assembly Installation

Engage the torque converter into the transaxle side securely, and then assemble the transaxle assembly on the engine.

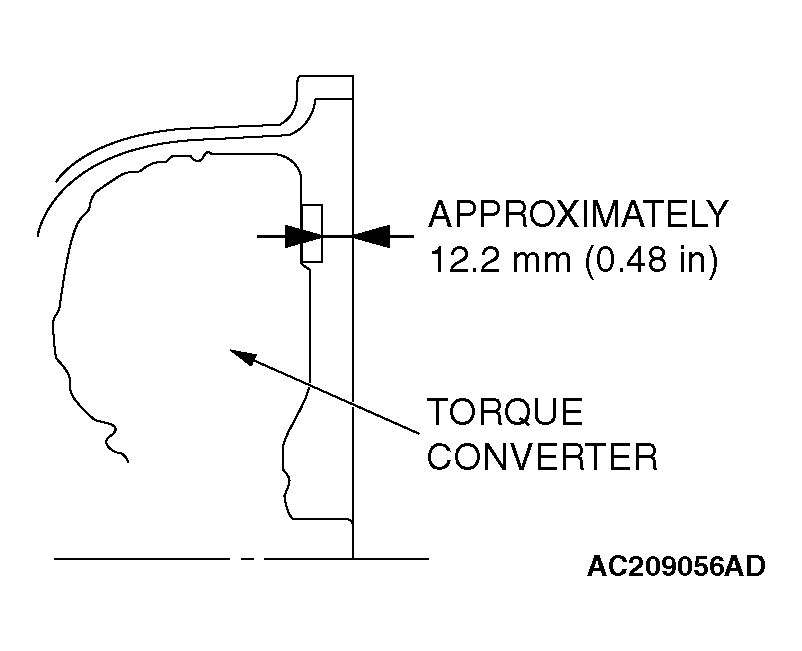

Fig 1: Installing Engage Torque Converter Into Transaxle

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Engage the torque converter into the transaxle side securely, and then assemble the transmission assembly on the engine.

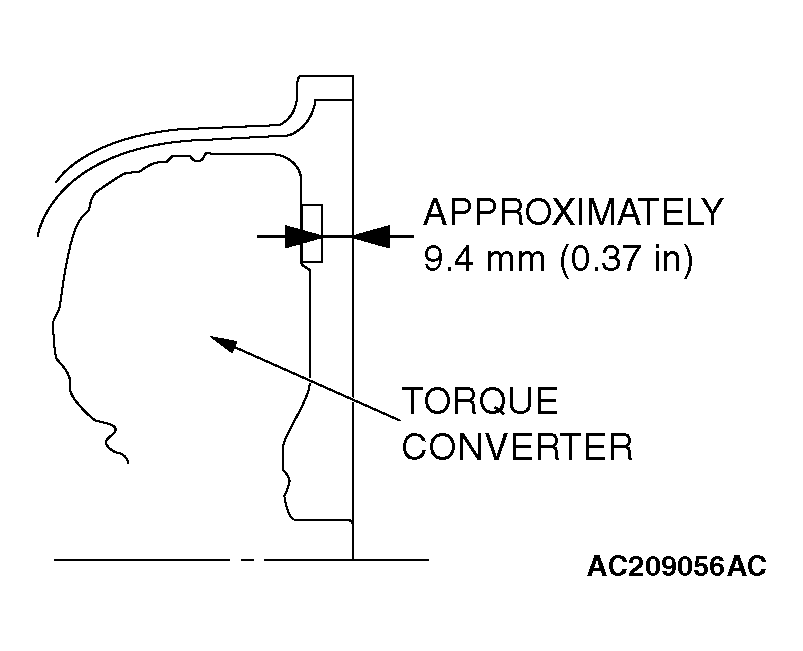

Fig 1: Identifying Transaxle Assembly Service Point

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
