<< E >> Engine Assembly Supporting

  1. < Engine hanger MB991895 is used >
    1. Set special tool MB991895 to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.
      Fig 1: Locating Front Fender Mounting Bolts (A And B) And Radiator Support Upper Insulator Mounting Bolts (C And D)
      G04230151Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Set special tool MB991527 and MB991454 (chain) to hold the engine/transaxle assembly.

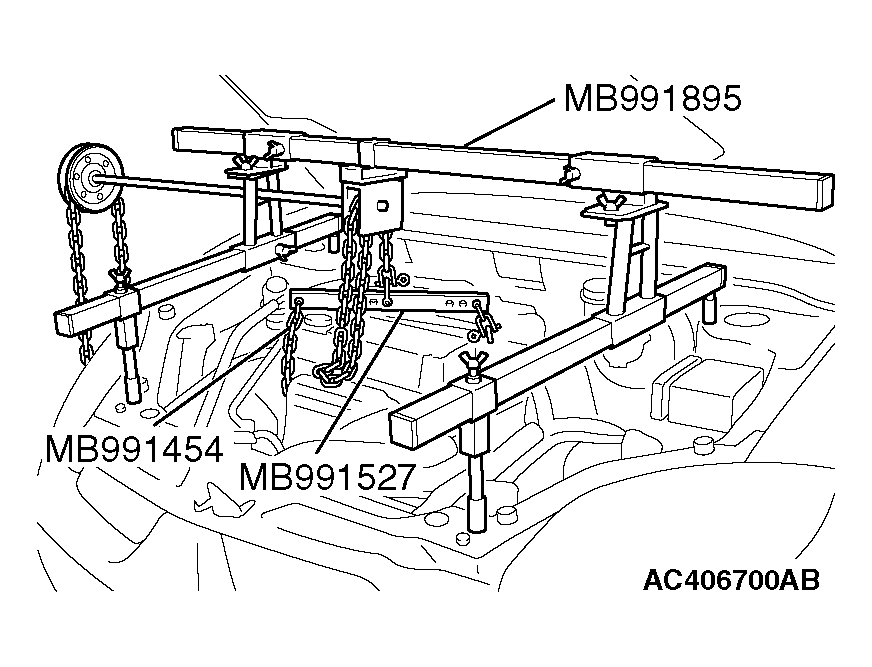

      Fig 2: Identifying Engine/Transaxle Assembly
      G04231208Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. < Engine hanger MB991928 is used >
    1. Assemble the engine hanger (special tool MB991928). Set following parts to the base hanger.
      • Slide bracket (HI)
      • Foot (standard) (MB991932)
      • Joint (140) (MB991931)

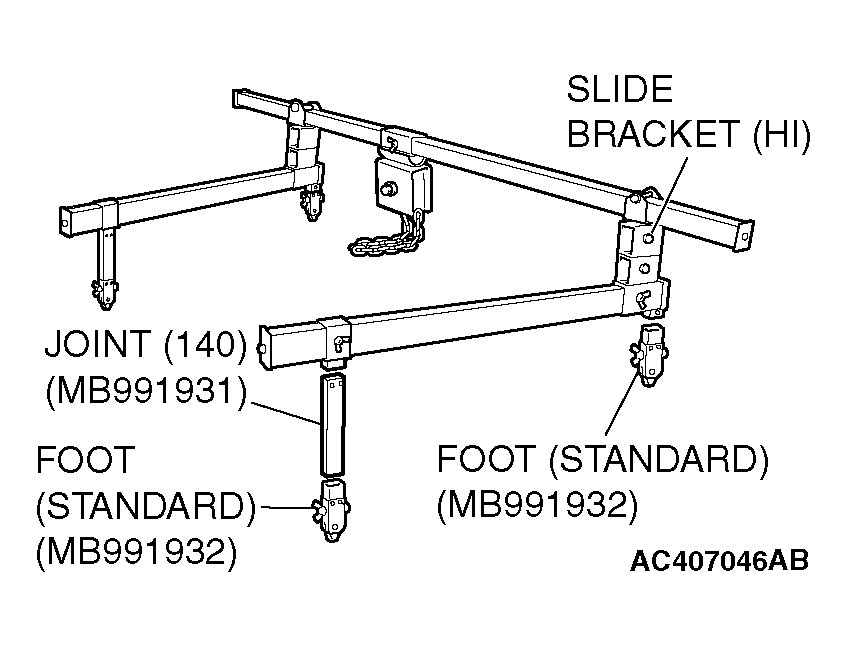

        Fig 3: Assembling Engine Hanger (Special Tool Mb991928)
        G04231209Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Set the engine hanger (special tool MB991928) to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.
      NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).

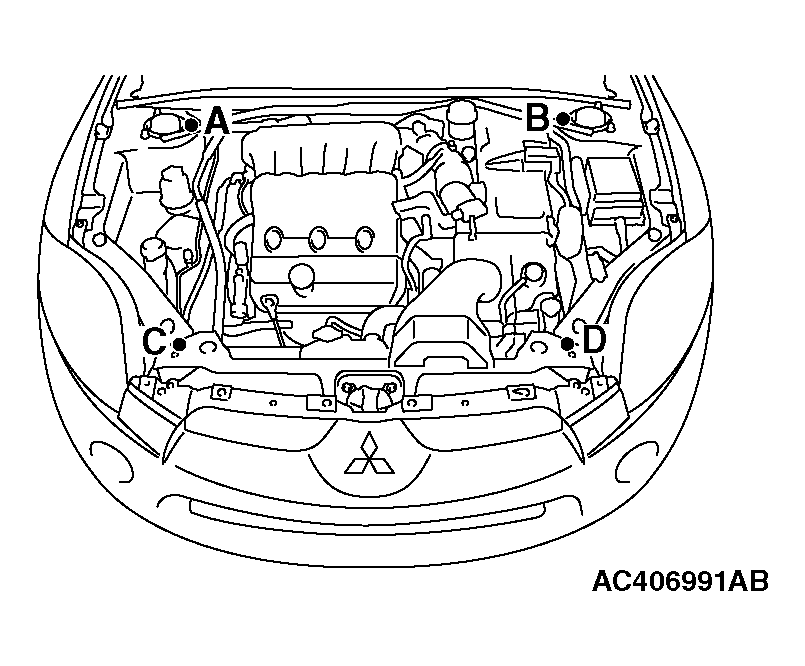

      Fig 4: Installing Engine Hanger To Front Fender Mounting Bolts
      G04231210Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Set special tools MB991527 and MB991454 (chain) to hold the engine/transaxle assembly.

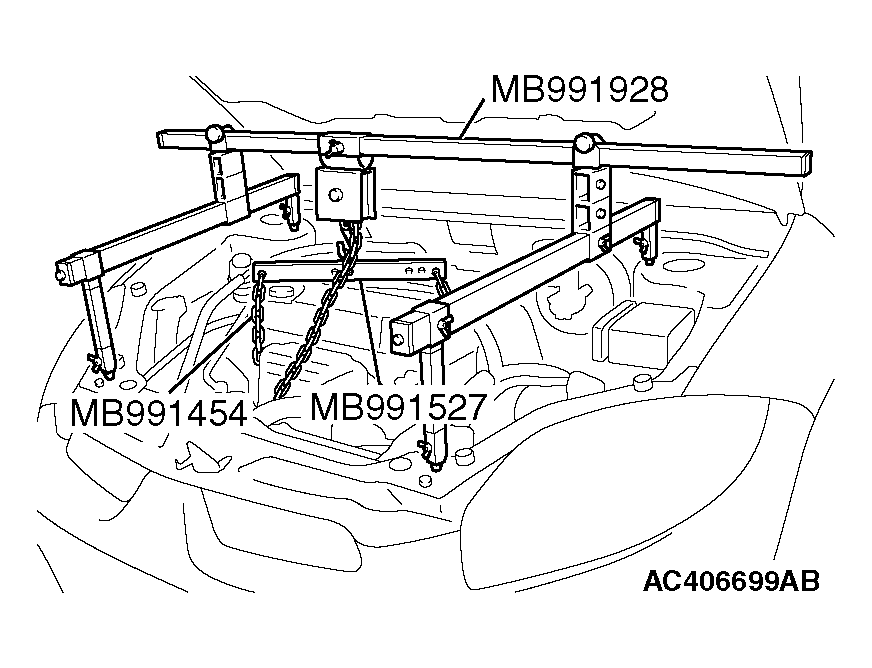

      Fig 5: Holding Engine/Transaxle Assembly
      G04231211Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.


  1. Remove the engine hanger.

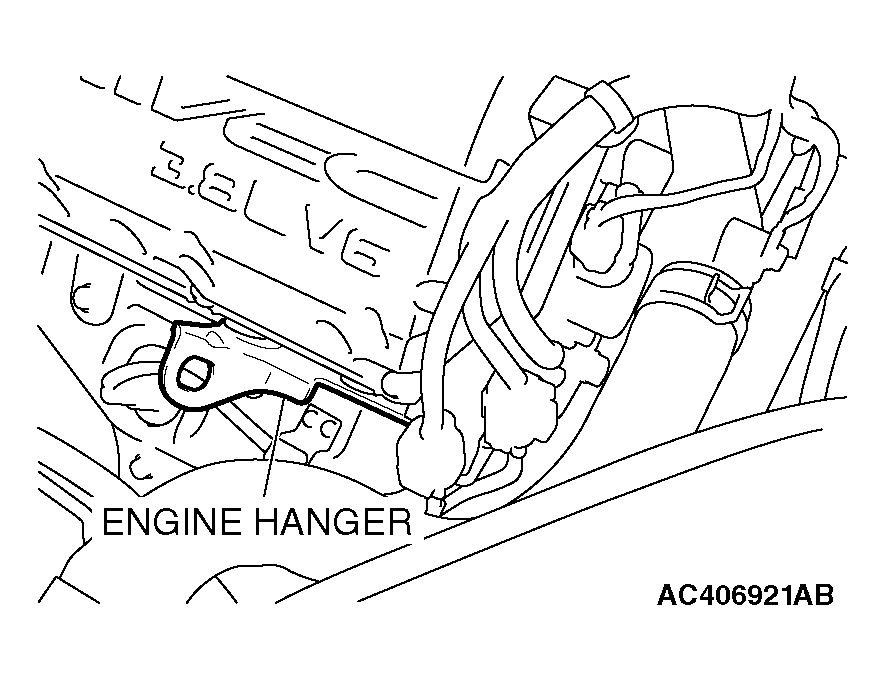

    Fig 1: Removing Engine Hanger
    G04231227Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. After removing the intake manifold plenum stay (rear) and the engine hanger, set special tool MB992012 and MB992013 to each cylinder head.

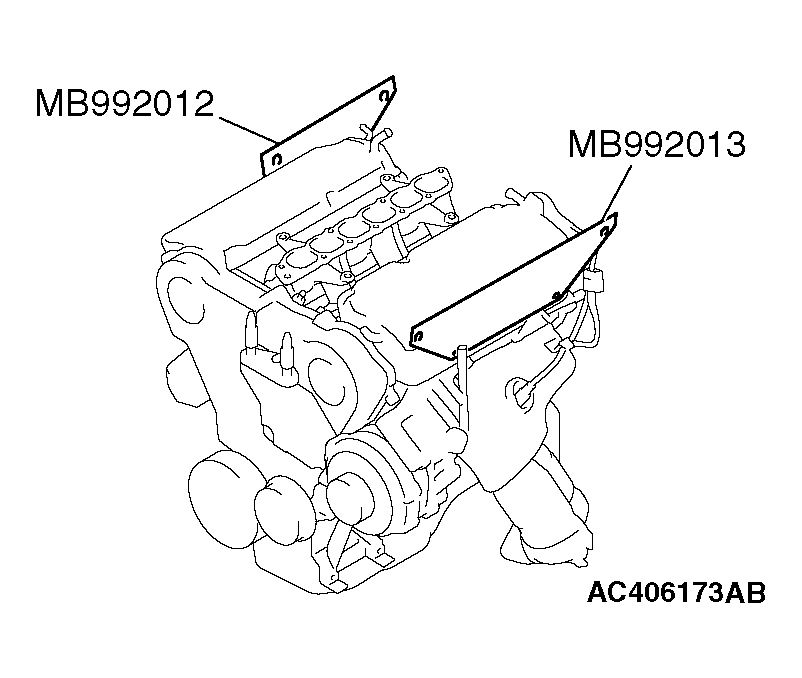

    Fig 2: Removing Intake Manifold Plenum Stay (Rear) & Engine Hanger
    G04231228Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. < If engine hanger MB991895 is used >
    1. Set special tool MB991895 to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.
      Fig 3: Locating Front Fender Mounting Bolts (A And B) And Radiator Support Upper Insulator Mounting Bolts (C And D)
      G04230151Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Set special tool MB991454 to hold the engine/transaxle assembly.

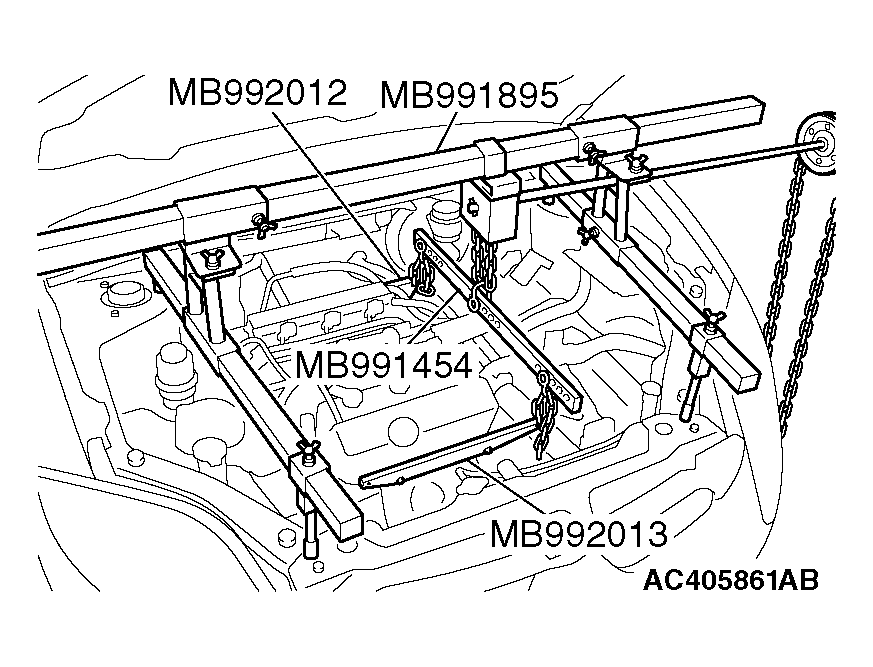

      Fig 4: Installing Special Tool Mb991454 To Hold Engine/Transaxle Assembly
      G04231230Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. < If engine hanger MB991928 is used >
    1. Assemble the engine hanger (special tool MB991928). Set the following parts to the base hanger.
      • Slide bracket (HI)
      • Foot (standard) (MB991932)
      • Joint (140) (MB991931)
        Fig 5: Identifying Engine Hanger
        G04231231Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    2. Set the engine hanger (special tool MB991928) to the front fender mounting bolts (A and B) and the radiator support upper insulator mounting bolts (C and D), which are located in the engine compartment, as shown.
      NOTE: Adjust the engine hanger balance by sliding the slide bracket (HI).
      Fig 6: Locating Front Fender Mounting Bolts (A And B) And Radiator Support Upper Insulator Mounting Bolts (C And D)
      G04230151Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    3. Set special tool MB991454 to hold the engine/transaxle assembly.

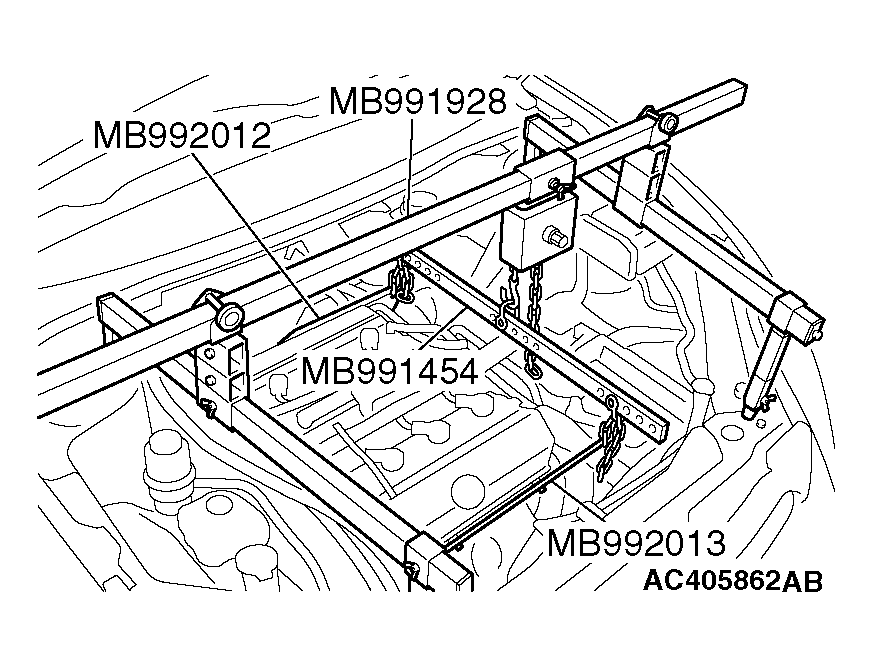

      Fig 7: Holding Engine/Transaxle Assembly
      G04231233Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
