>> C << Transfer Driven Gear Installation

  1. Set the output shaft on the press support stand
  2. Using special tools MD998823, MD998812 and MD998813, press in the transfer driven gear.

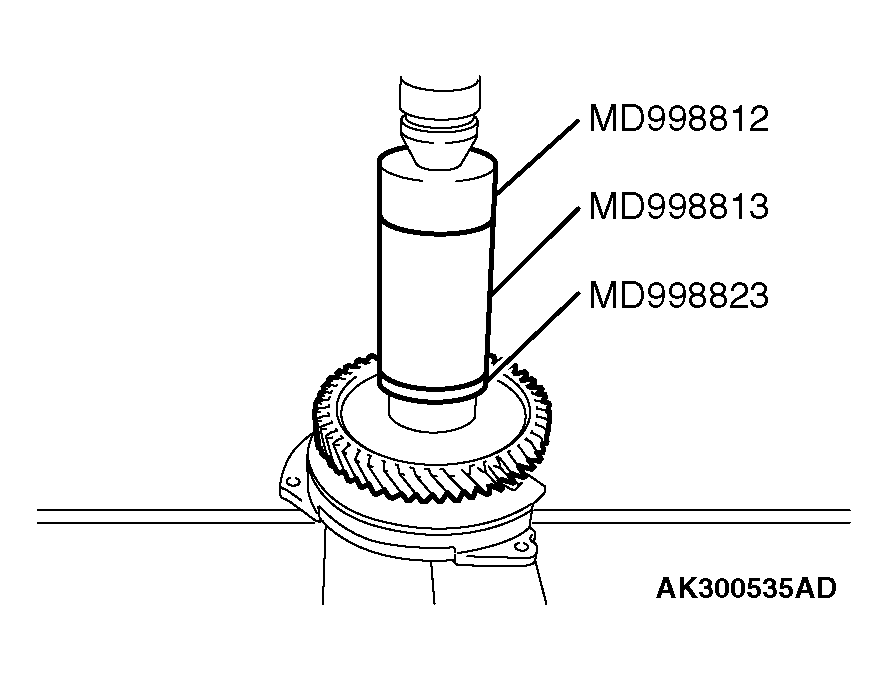

    Fig 1: Pressing In Transfer Driven Gear
    G04231430Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
