Disassembly And Assembly: Notes

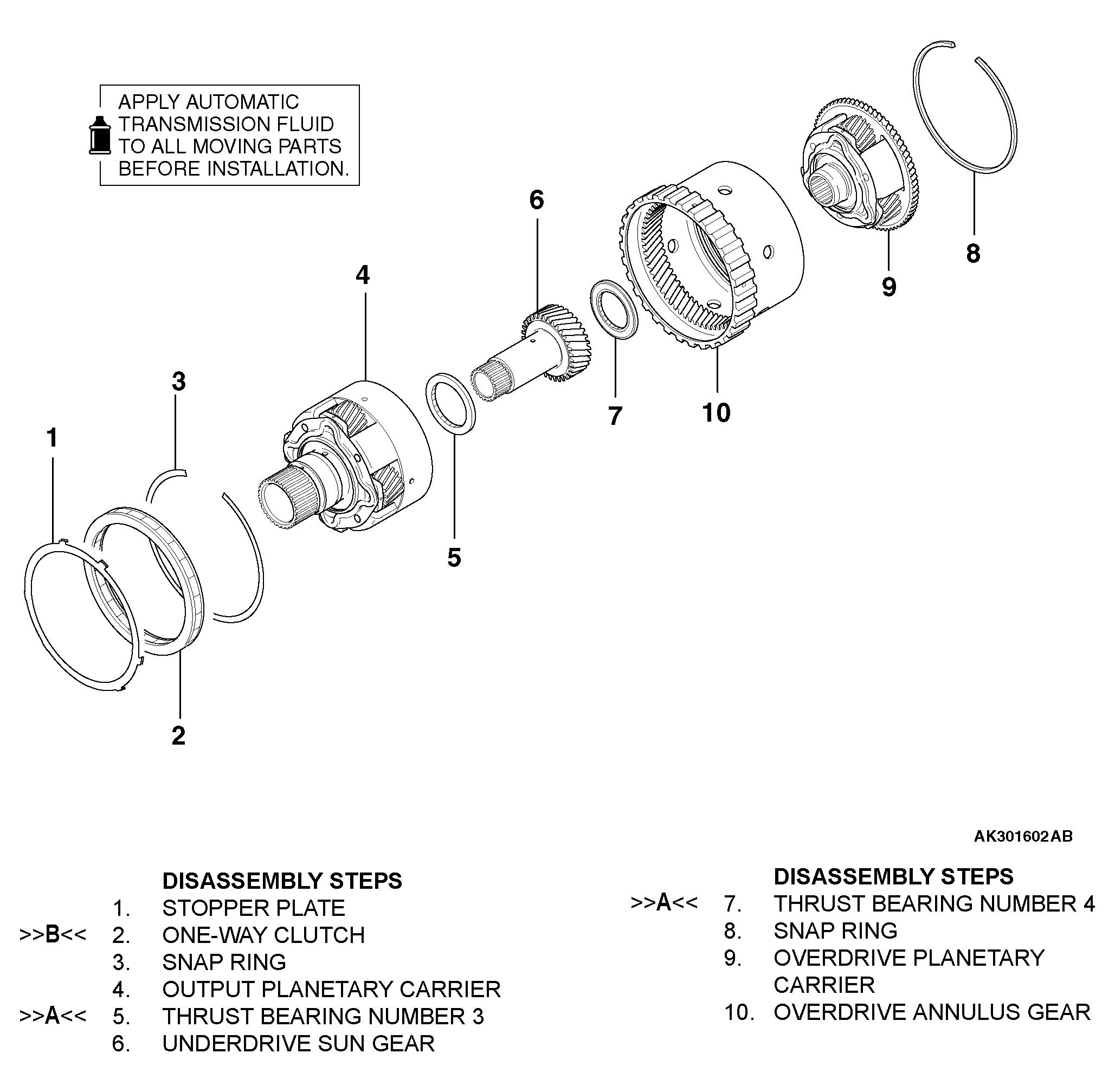

Fig 1: Exploded View Of Planetary Gear

G04231420

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
