Removal And Installation < 2.4L Engine >: Notes

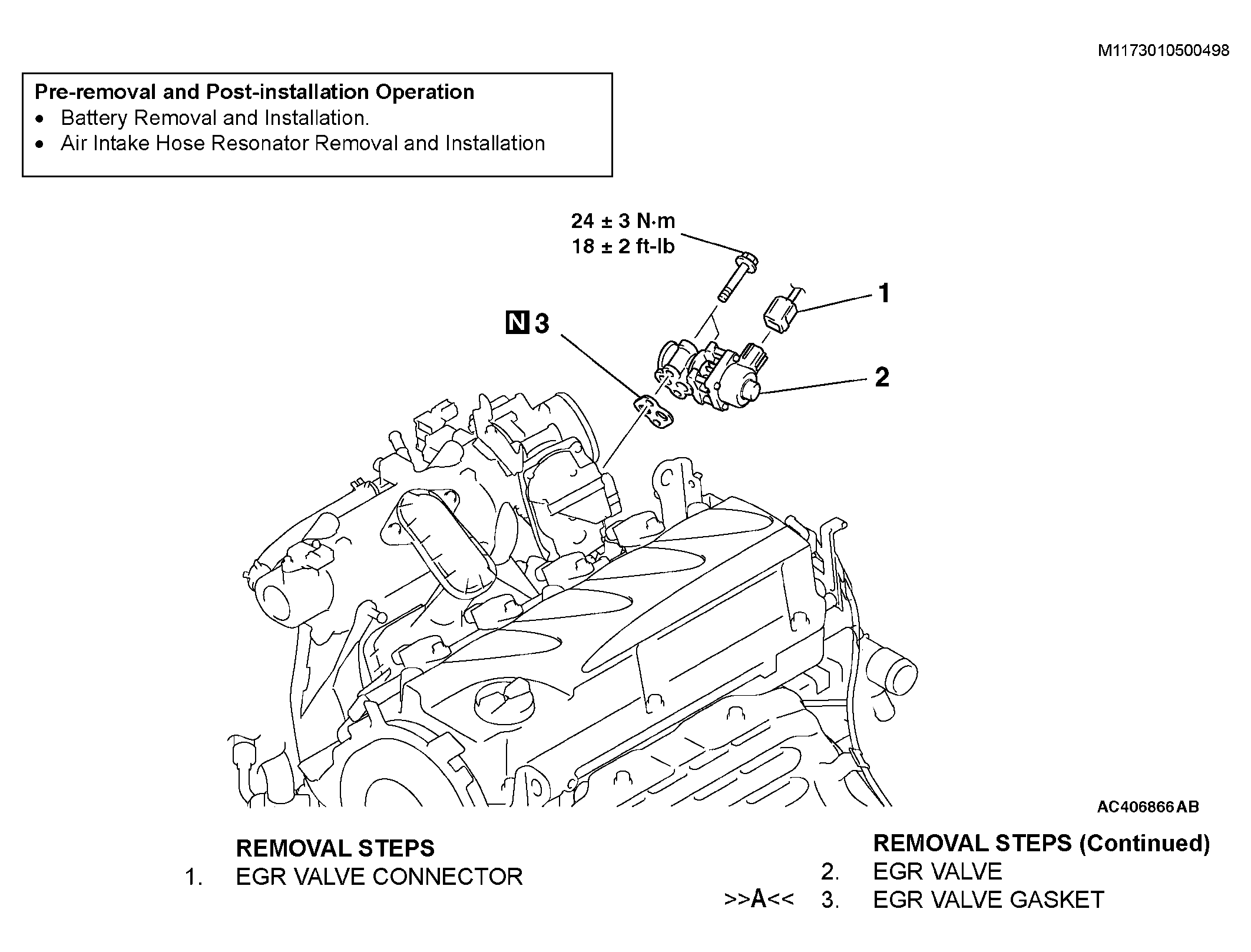

Fig 1: Removing/Installing EGR Valve With Torque Specifications (2.4L Engine)
G04237296Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
