>> E << Steering Gear Rack Installation

CAUTION: Do not close the vent hole in the rack with grease.
  1. Apply a coating of multipurpose grease to the rack teeth face.

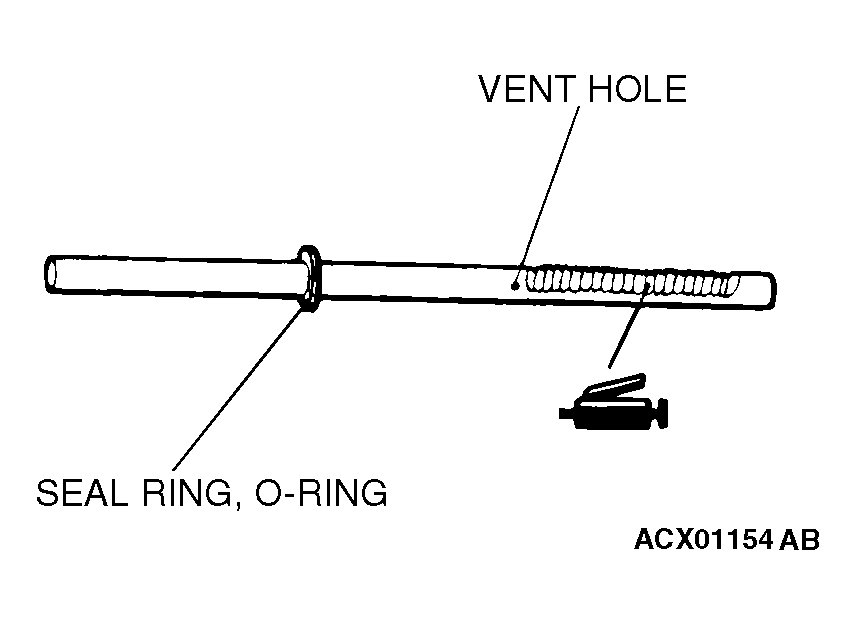

    Fig 1: Coating Rack Teeth Face With Multipurpose Grease
    G04237436Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Cover the rack serrations with special tool MB991213.
  3. Apply GENUINE MITSUBISHI POWER STEERING FLUID to special tool MB991213.
  4. Align the center of the oil seal with the rack to prevent the retainer spring from slipping. Slowly insert the rack from power the cylinder side.

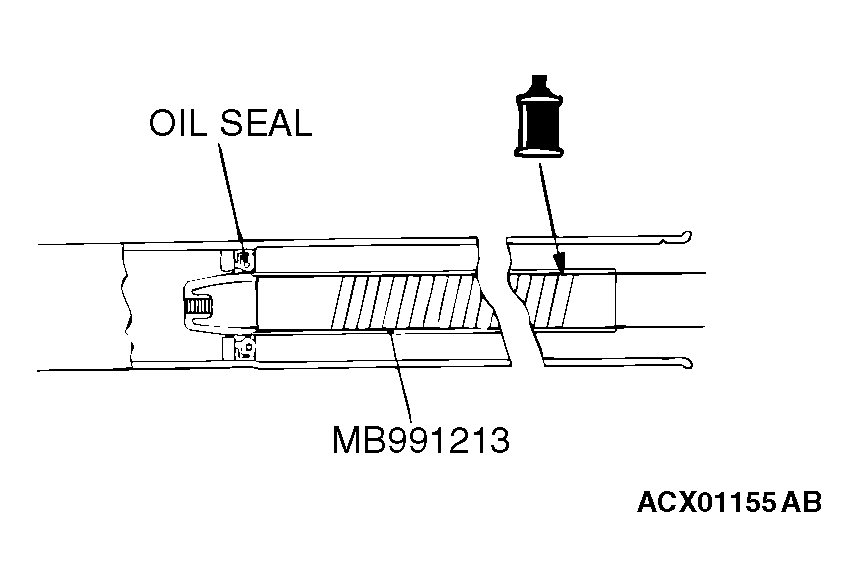

    Fig 2: Aligning Center Of Oil Seal
    G04237437Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
