>> G << Steering Gear Piston Clip (CIRCLIP) Installation

Insert claw of circlip in a slit of rack stopper. Then set firmly the circlip in a ditch of steering gear housing.

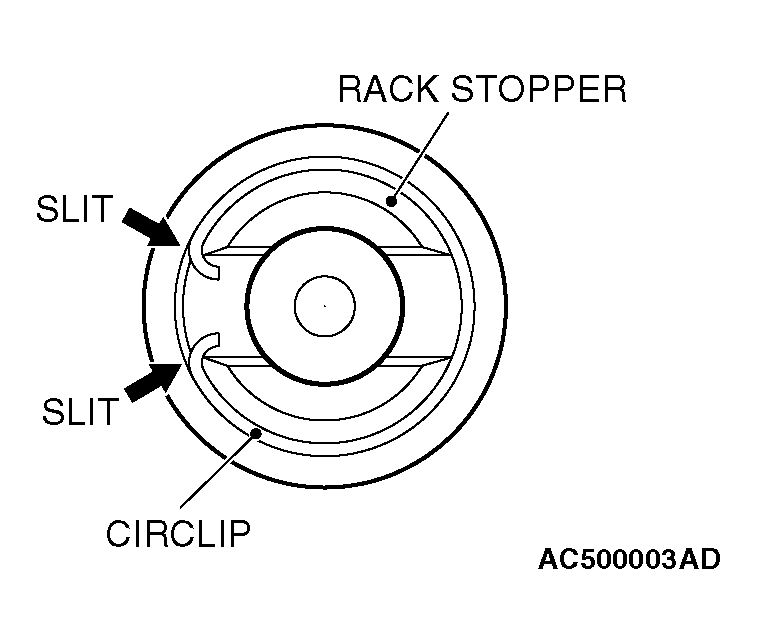

Fig 1: Inserting Claw Of Circlip In Slit Of Rack Stopper
G04237439Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
