Removal And Installation < 2.4L Engine >: Notes

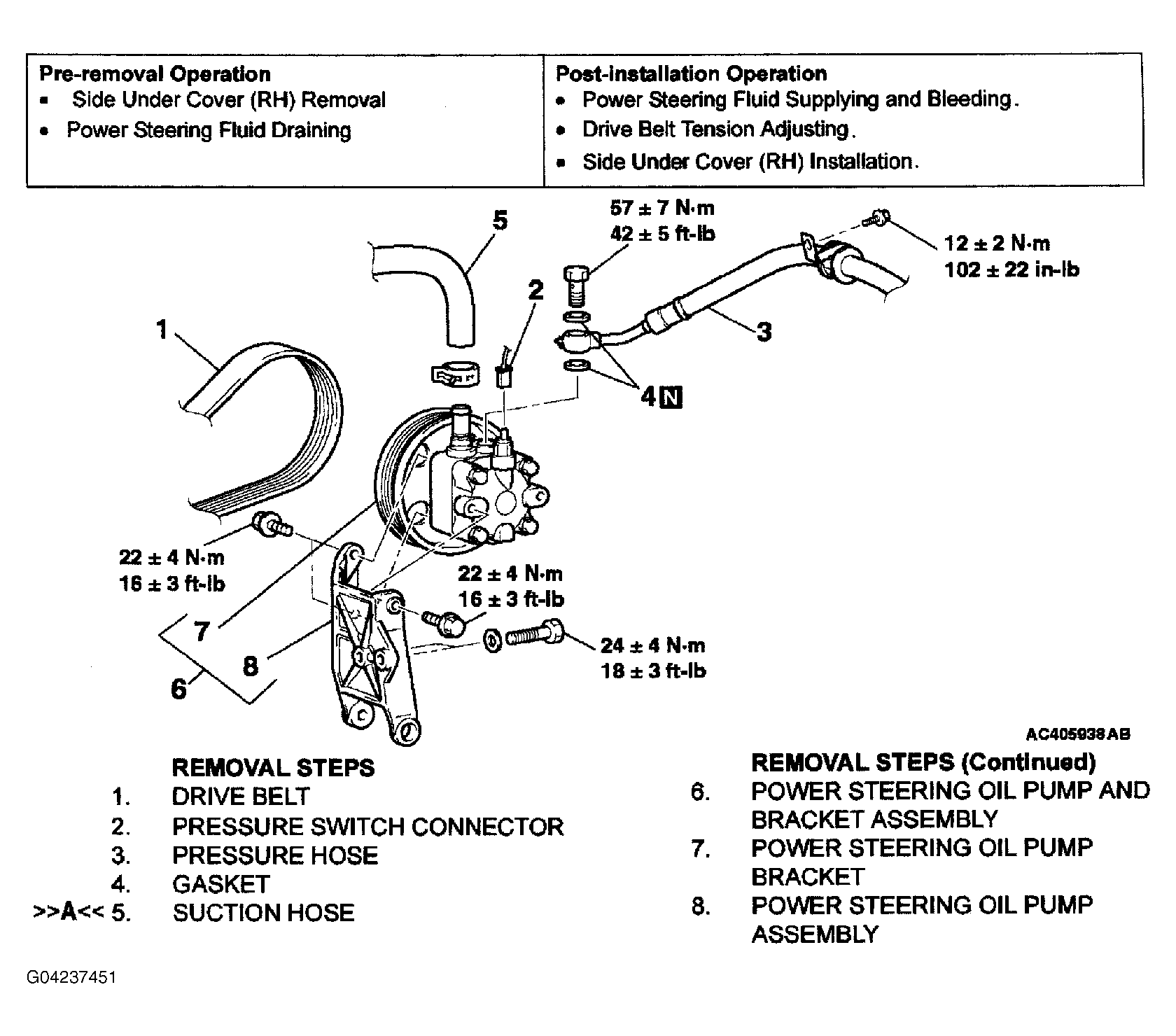

Fig 1: Removing/Installing Power Steering Oil Pump Assembly With Torque Specifications
G04237451Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
