>> A << Dynamic Damper < LH/RH >/Damper Band < RH >/TJ Boot Installation
CAUTION:
There should be no grease adhered to the rubber part of the dynamic damper.

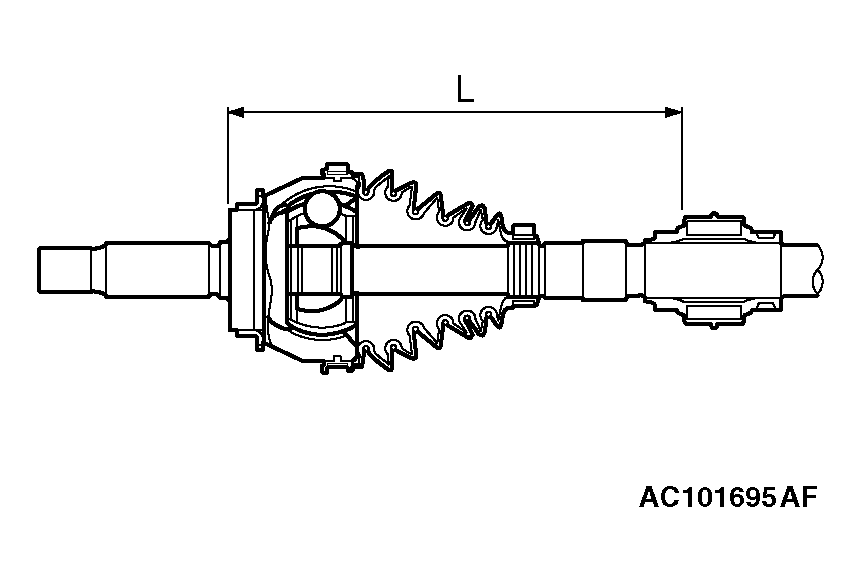

- Install the dynamic damper in the position (L) shown in the illustration.
L: 260 +/- 3 mm (10.2 +/- 0.12 inches) < LH >
L: 406 +/- 3 mm (16.0 +/- 0.12 inches) < RH >
- Secure the damper bands.
- Wrap plastic tape around the shaft spline, and then install the TJ boot band (small) and TJ boot.
