>> A << Dynamic Damper/Damper Band/PTJ Boot Installation
CAUTION:
There should be no grease adhered to the rubber part of the dynamic damper.

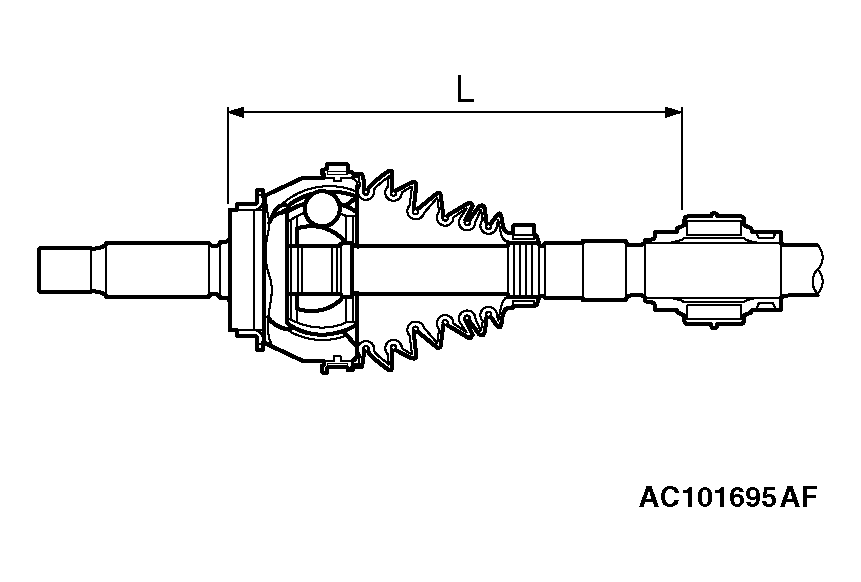

- Install the dynamic damper in the position (L) shown in the illustration.
L: 260.5 +/- 3 mm (10.3 +/- 0.12 inches) < A/T >
L: 226 +/- 3 mm (8.9 +/- 0.12 inches) < M/T >
- Secure the damper bands.
- Wrap plastic tape around the shaft spline, and then install the PTJ boot band (small) and PTJ boot.
