>> F<< Seal Plate/PTJ Case And Inner Shaft Assembly Installation

Apply repair kit grease to the inner shaft spline, then press fit it into the PTJ case.
NOTE: When press-fitting the inner shaft into the PTJ case, apply a thin coat of repair kit grease to the dust seal outer lip part and the outside edge of the PTJ axial part.

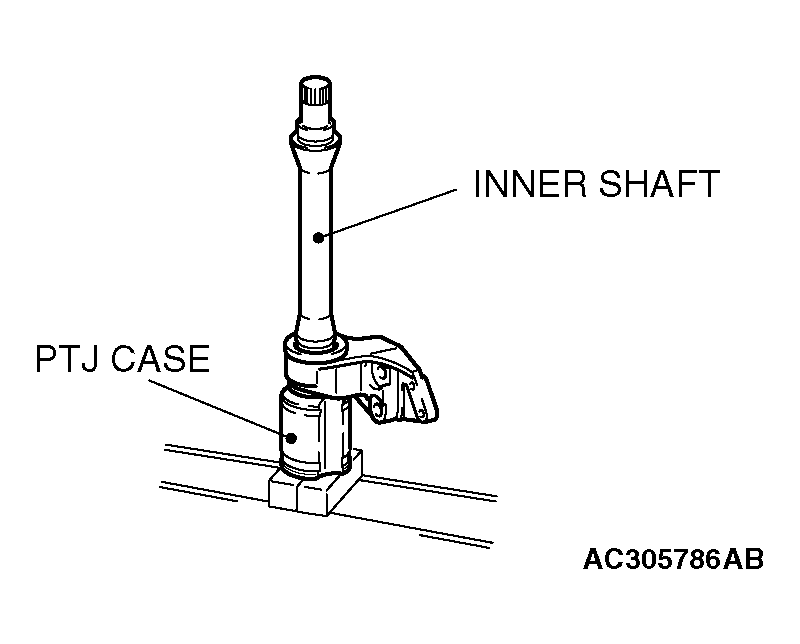

Fig 1: Press-Fitting Inner Shaft Into PTJ Case
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use special tool MD998369 to press in the seal plate.

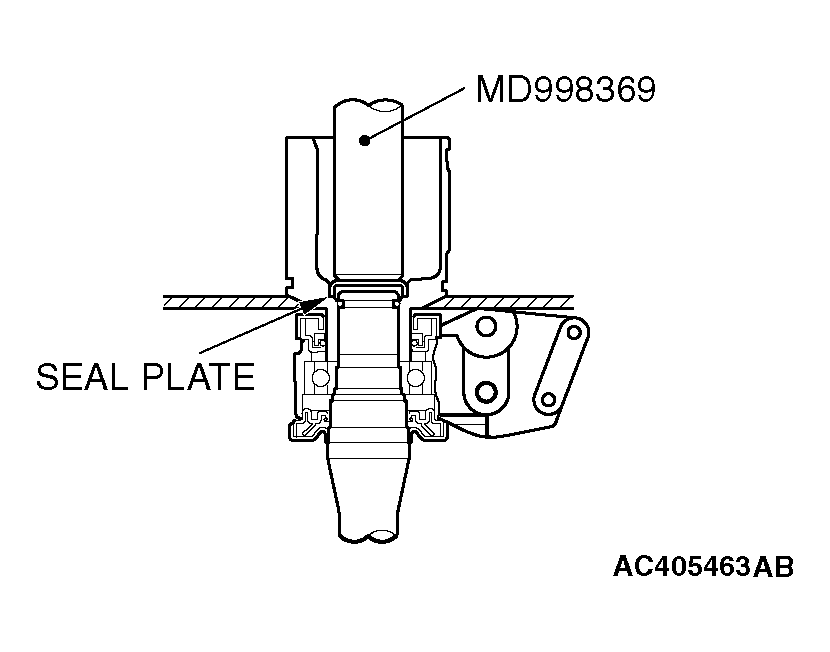

Fig 2: Pressing In Seal Plate Using Special Tool
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
