Removal And Installation: Notes

CAUTION:
  • Do not strike the ABS rotors installed to the BJ or EBJ outer race of drive shaft against other parts when removing or installing the drive shaft. Otherwise the ABS rotors will be damaged.
  • Be careful not to strike the pole piece at the tip of the front wheel speed sensor with tools during servicing work.

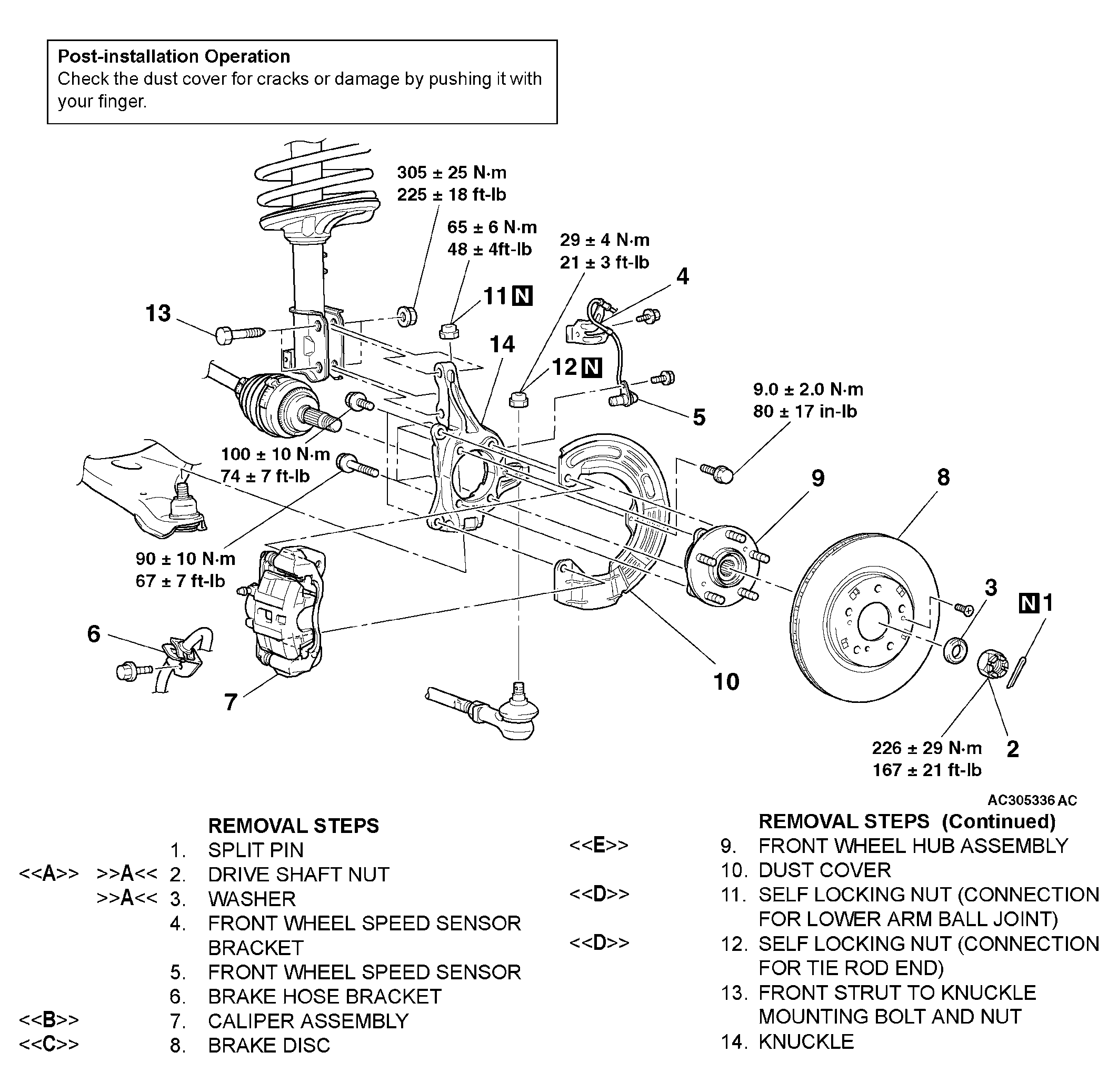

    Fig 1: Exploded View Of Front Axle Hub Assembly With Torque Specifications
    G04231701Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
