DTC B1065: Mode Selection Damper Control Motor And Potentiometer (Activating System Failure): Notes

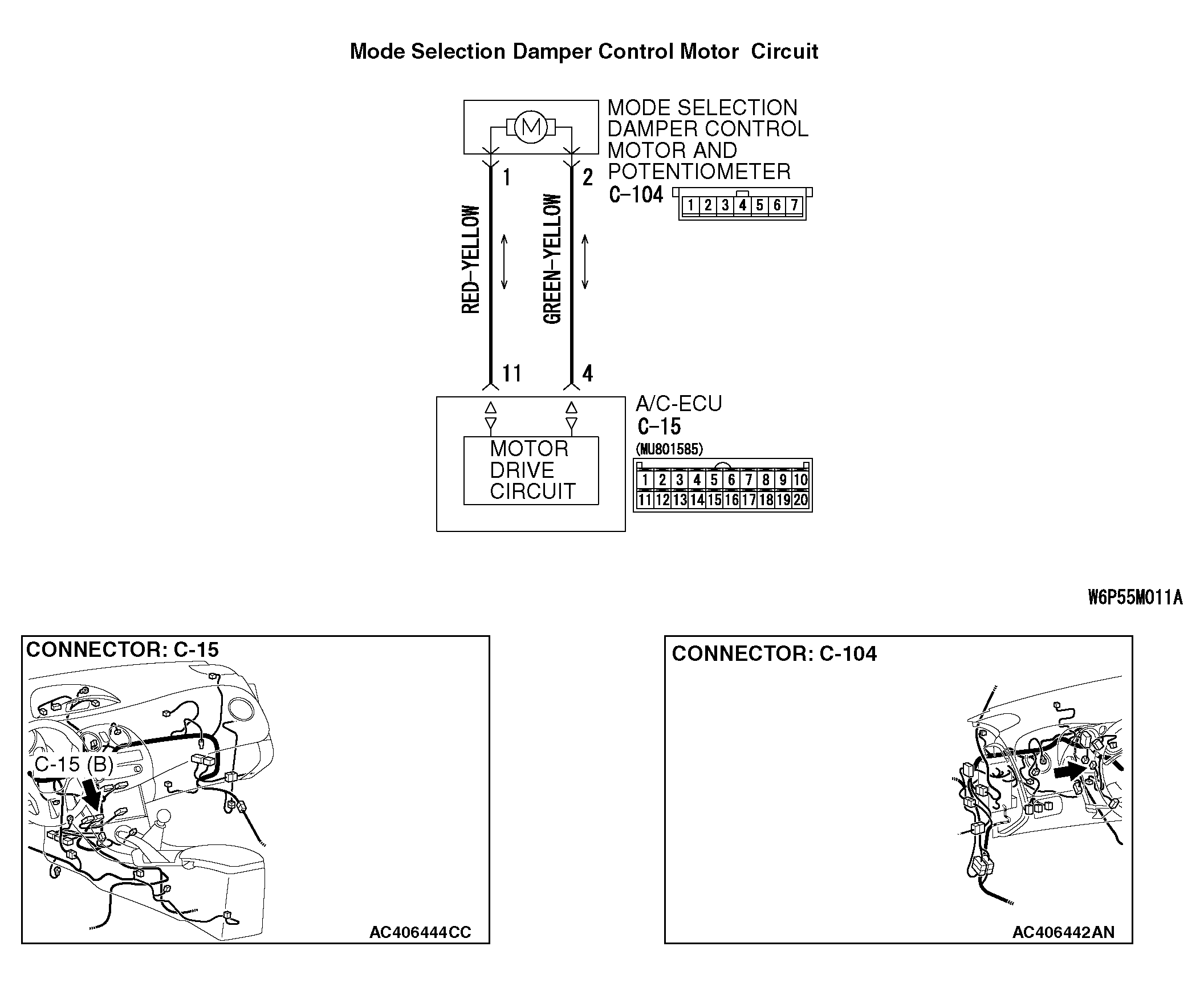

Fig 1: Mode Selection Damper Control Motor Circuit Diagram
G04240965Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
