Convertible Top Control Module Connector End View (F-26 And F-27)

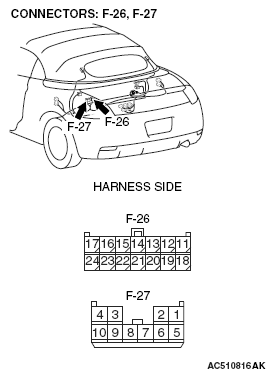

Fig 1: Convertible Top Control Module Connector End View (F-26 And F-27)
G05105904Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
