>> A << Spring Lower Pad Installation

Engage the three lugs of the spring lower pad into the holes on the front suspension strut as shown in illustration.

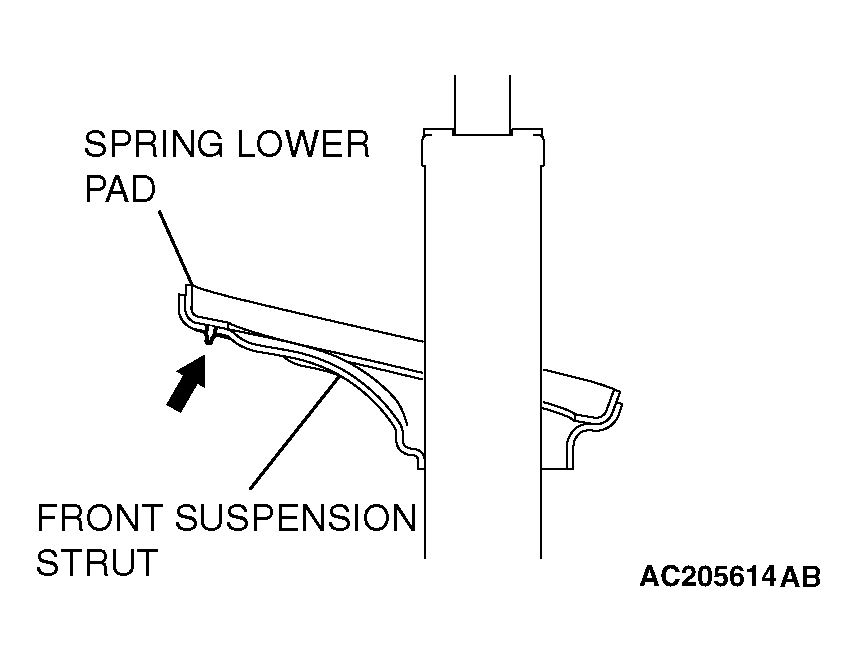

Fig 1: Installing Spring Lower Pad
G04231837Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
