>> B << Strut Insulator Installation

If the upper plate and lower plate of the strut insulator have been disassembled, assemble them as shown in illustration.

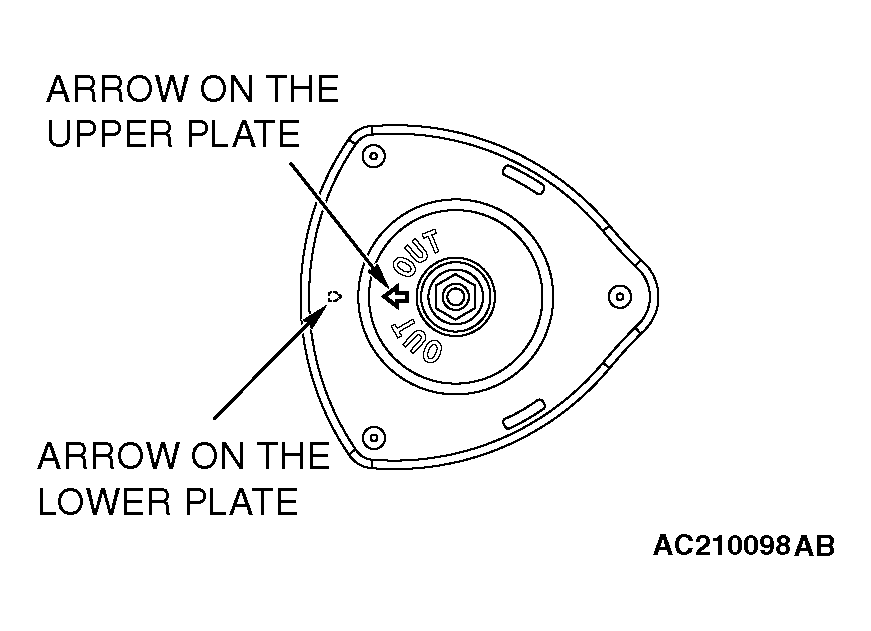

Fig 1: Locating Arrow Mark On Strut Insulators
G04231838Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
