>> D << Spring Pin Installation

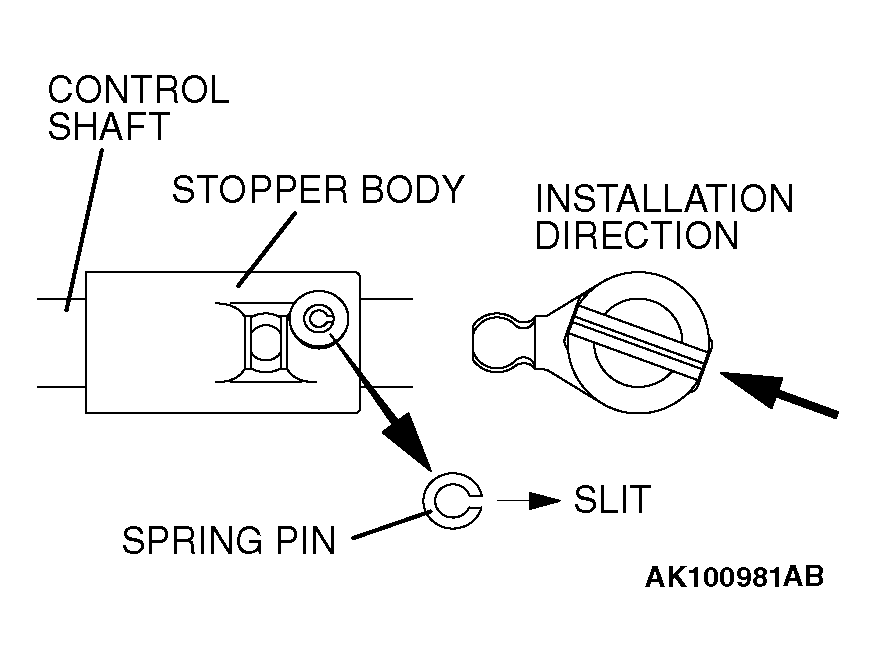

Drive in the spring pin so that the slit is in the direction shown in the illustration.

Fig 1: Installing Spring Pin
G04230288Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
