>> D << Synchronizer Spring Installation

Install the synchronizer spring onto the synchronizer ring as shown in illustration.

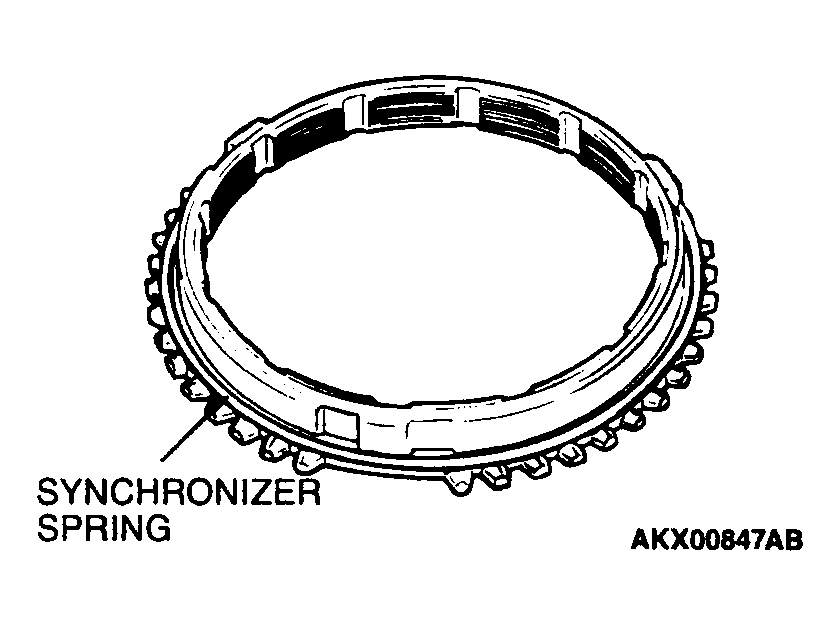

Fig 1: Installing Synchronizer Spring
G04230223Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
