>> K << Thrust Plate Stopper Installation

Install the thrust plate stopper by pressing special tools MD998812, MD998813 and MD998824 by hand. Make sure that it is not tilted.

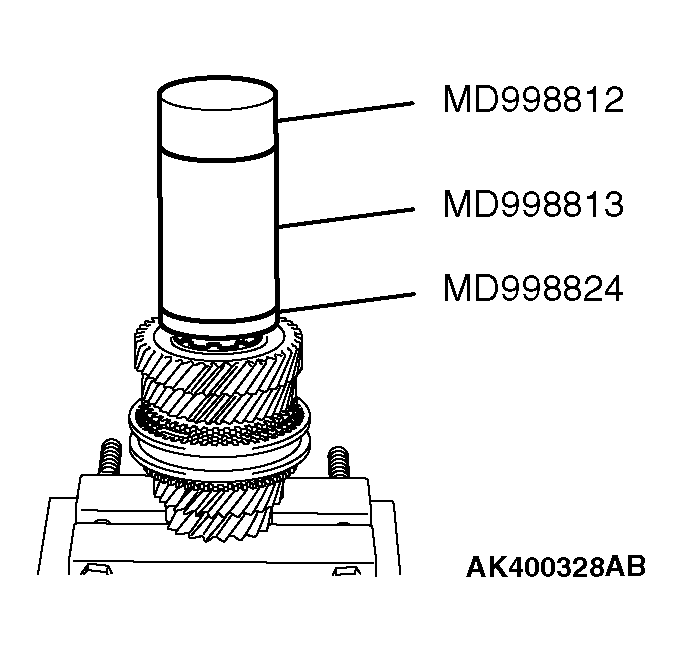

Fig 1: Installing Thrust Plate Stopper
G04230232Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
