>> M << Snap Ring Installation

  1. Install the thickest snap ring that can be fitted in the groove of the input shaft.
  2. Make sure that the ball bearing end play meets the standard value.

    Standard value: 0-0.12 mm (0-0.0047 inch)

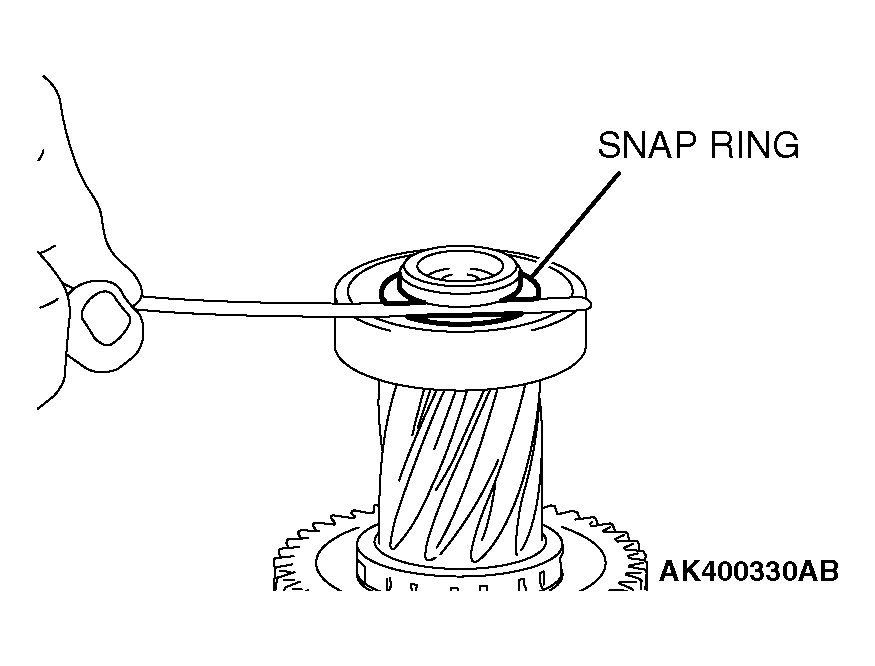

    Fig 1: Installing Thickest Snap Ring/Checking Ball Bearing End Play
    G04230234Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
