>> D << Synchronizer Spring Installation

Install the synchronizer spring onto the outer synchronizer ring as shown in illustration.

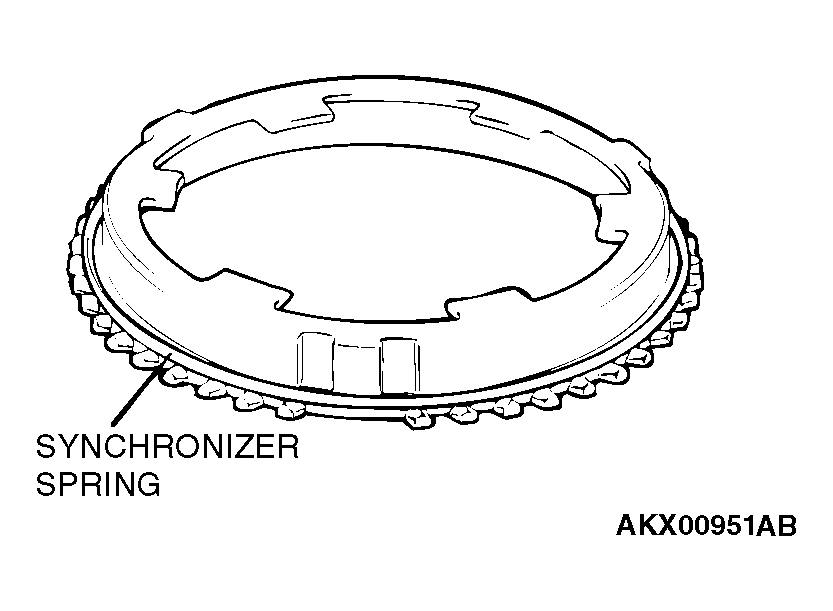

Fig 1: Installing Synchronizer Spring Onto Outer Synchronizer Ring
G04230251Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
