>> E << 1ST-2ND Speed Synchronizer Hub Installation

  1. Set the output shaft on the press support stand.
  2. Check that the 1st-2nd speed synchronizer hub is in the correct installation direction, and put it on the output shaft.
  3. Using special tools MD998812, MD998814 and MD998825, install the 1st-2nd speed synchronizer hub with the press.

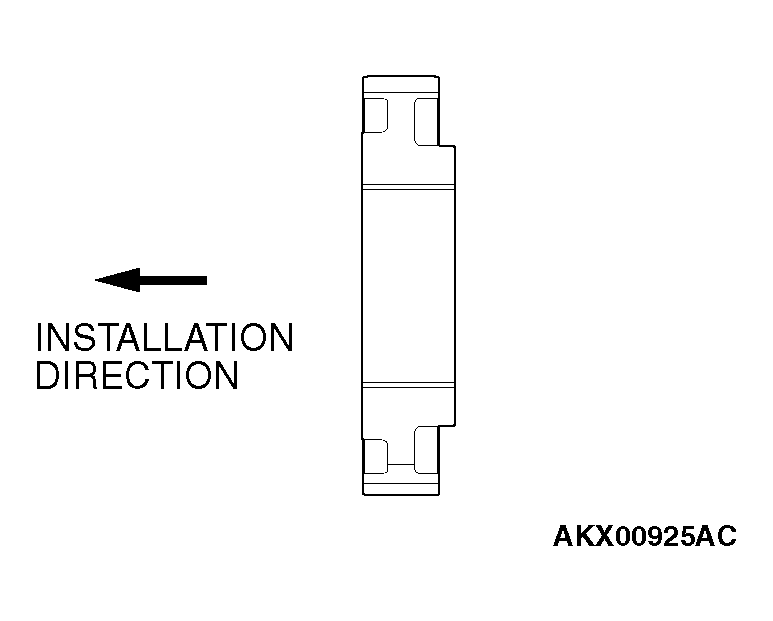

    Fig 1: Checking 1st-2nd Speed Synchronizer Hub Is In Correct Installation Direction
    G04230252Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Make sure that the outer synchronizer ring on the 1st speed gear side can rotate freely.

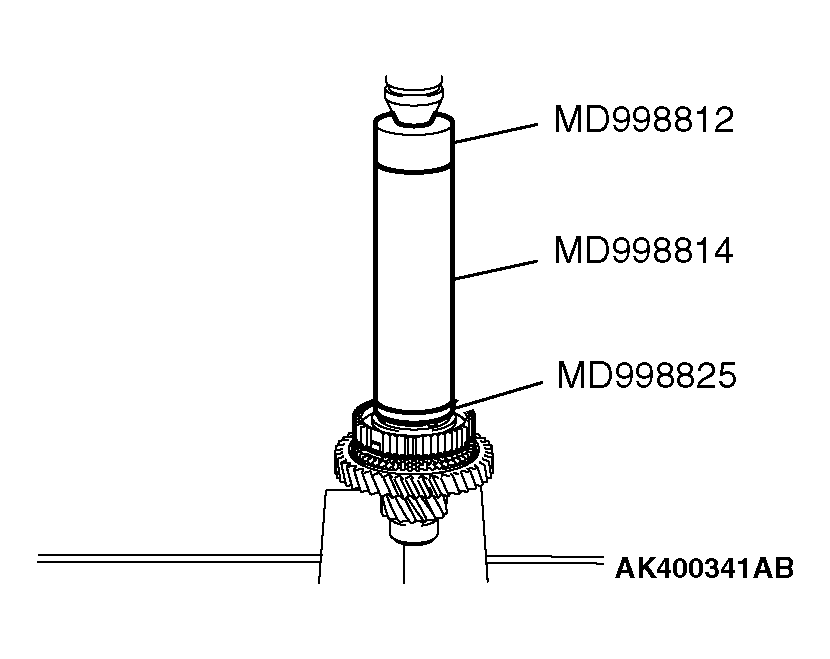

    Fig 2: Installing 1st-2nd Speed Synchronizer Hub
    G04230253Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
