Disassembly And Assembly: Notes

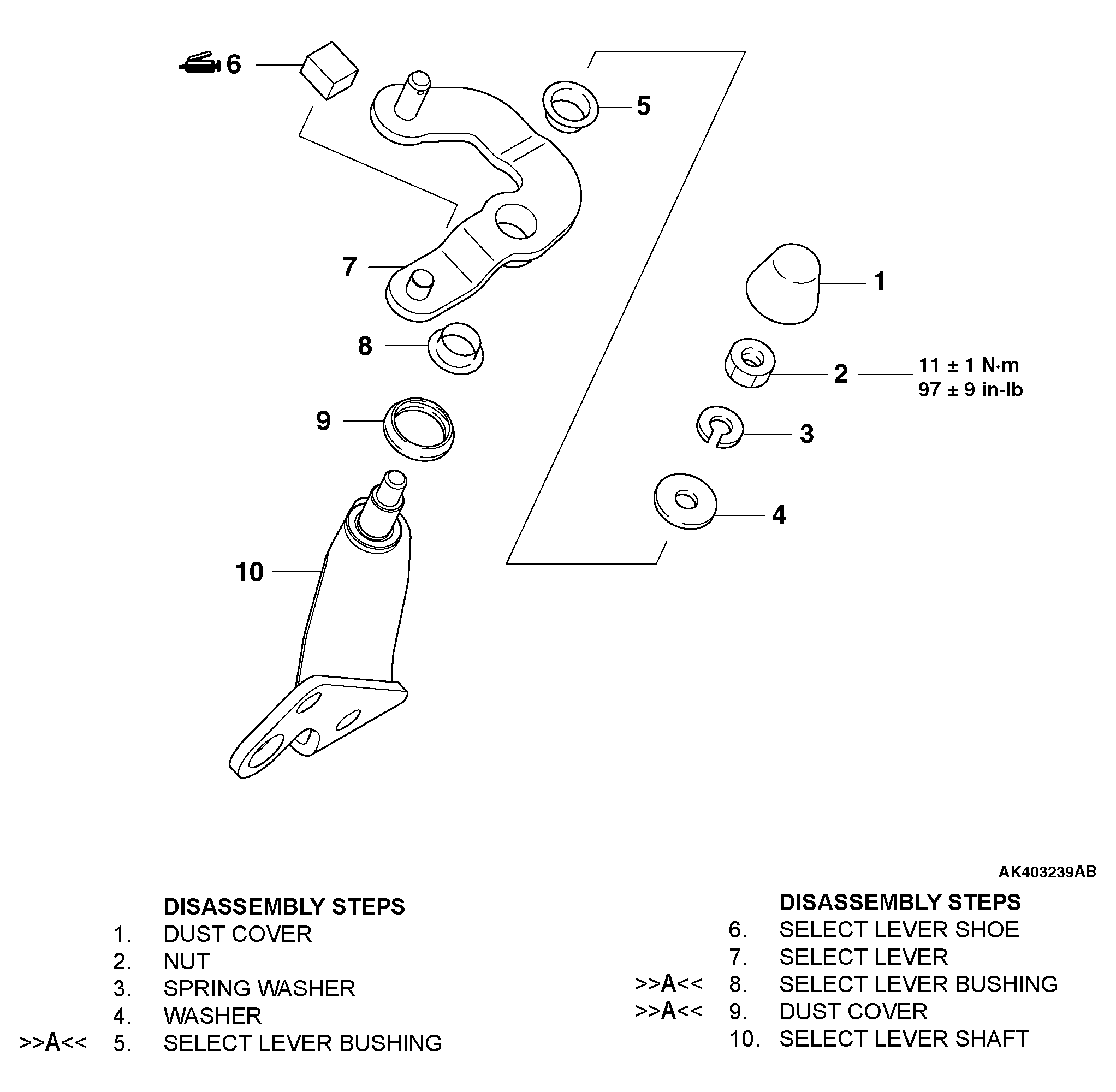

Fig 1: Disassembling Select Lever Components With Torque Specifications
G04230280Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
