>> A << Output Shaft/Input Shaft Installation

Install the input and output shafts together.

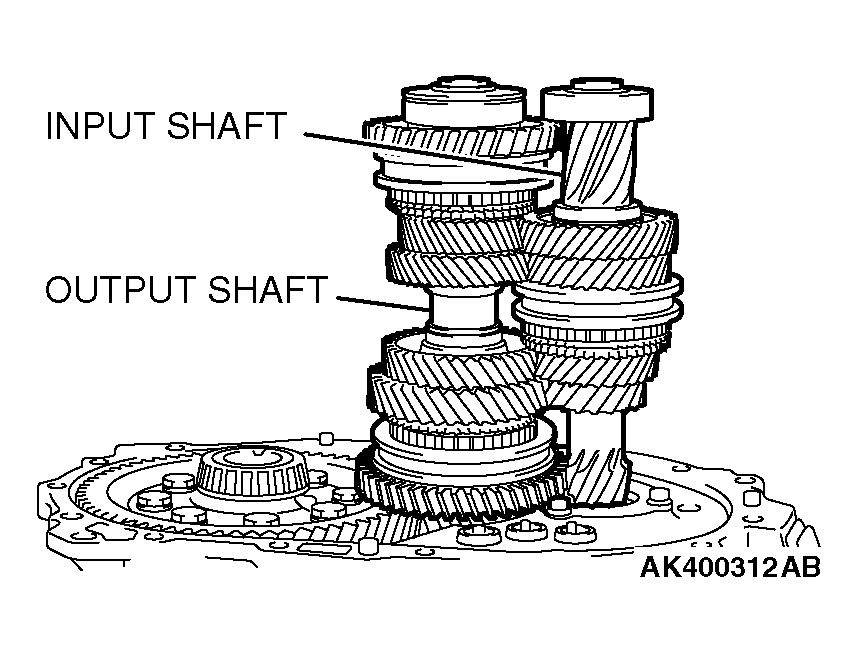

Fig 1: Installing Input & Output Shafts
G04230199Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
