>> C << Spring Pin Installation

  1. Align the pin holes in the shift rail and shift fork.
  2. Insert the new spring pin. Push it in as shown in illustration so that the slit and center axis of the rail are aligned.

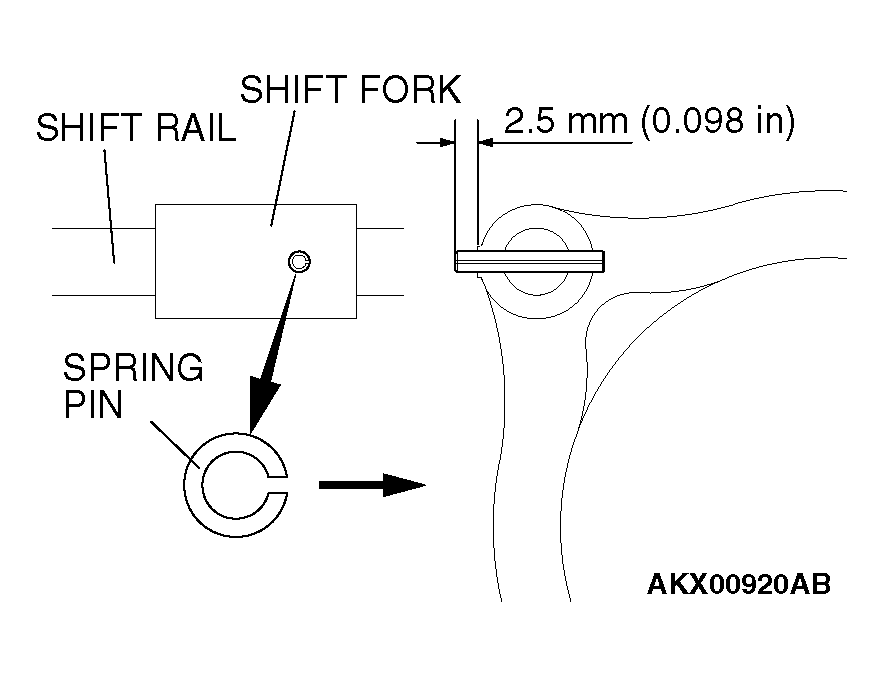

    Fig 1: Aligning Pin Holes In Shift Rail & Shift Fork
    G04230203Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
