Special Tools

SPECIAL TOOLS CHART

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04232344G04232345G04232346G04232347G04232348G04232349G04232350
G04232344G04232345G04232346G04232347G04232348G04232349G04232350
G04232344G04232345G04232346G04232347G04232348G04232349G04232350
G04232344G04232345G04232346G04232347G04232348G04232349G04232350
G04232344G04232345G04232346G04232347G04232348G04232349G04232350
G04232344G04232345G04232346G04232347G04232348G04232349G04232350
G04232344G04232345G04232346G04232347G04232348G04232349G04232350
 MB991958

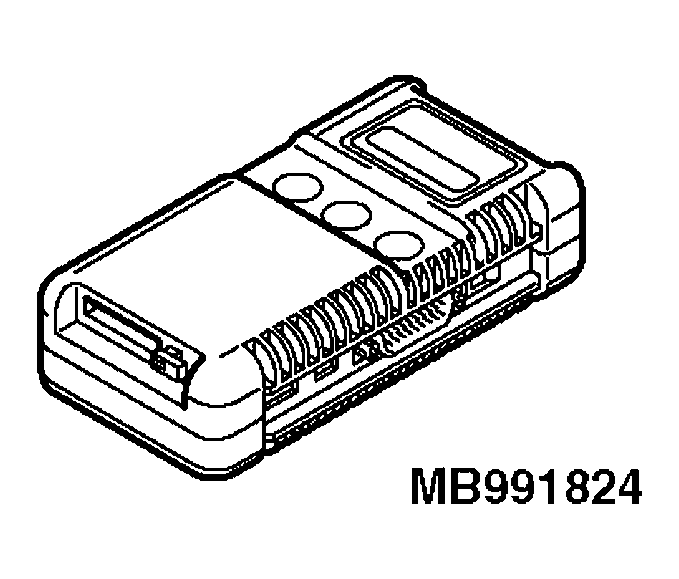

  1. MB991824

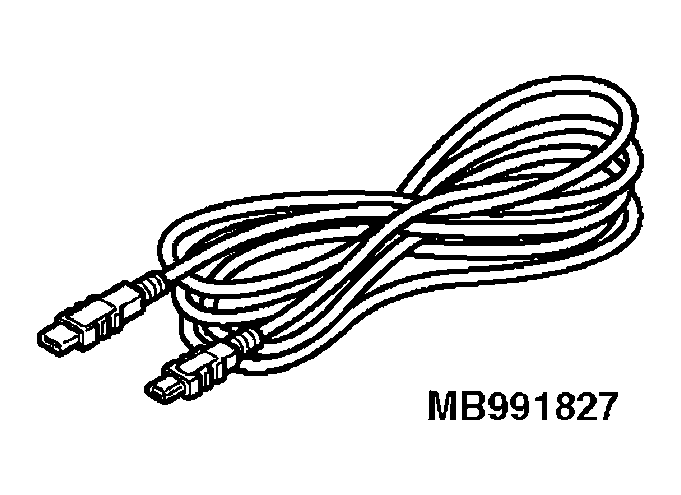

  2. MB991827

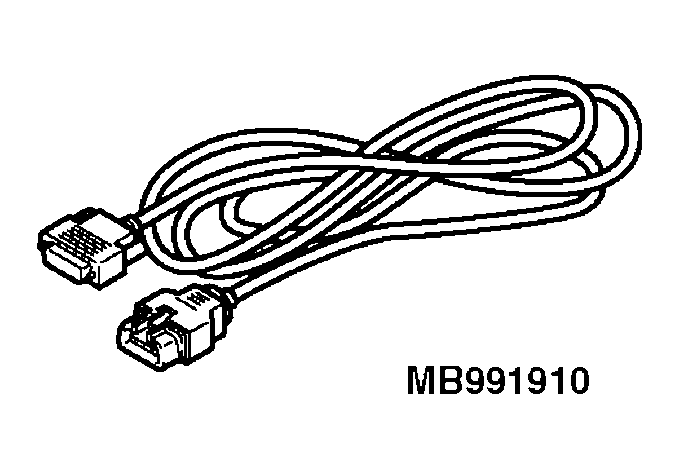

  3. MB991910

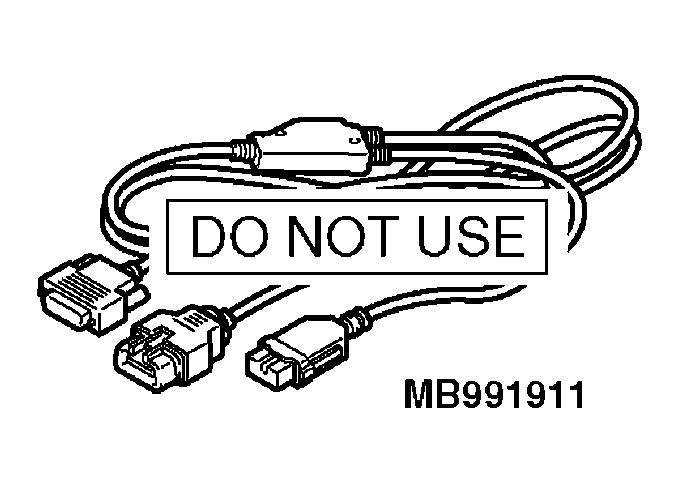

  4. MB991911

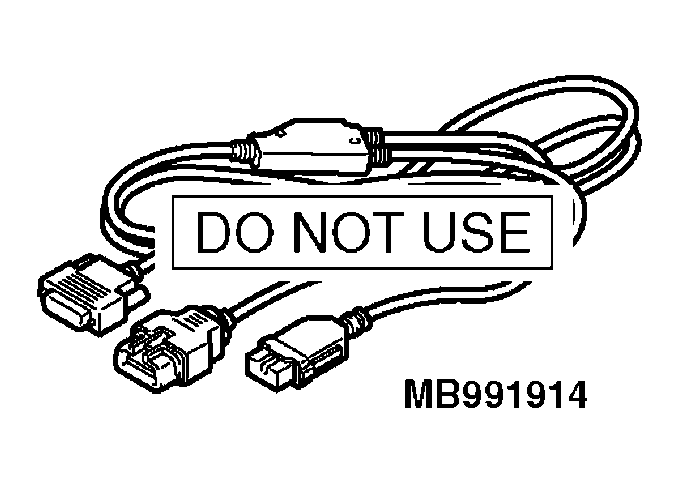

  5. MB991914

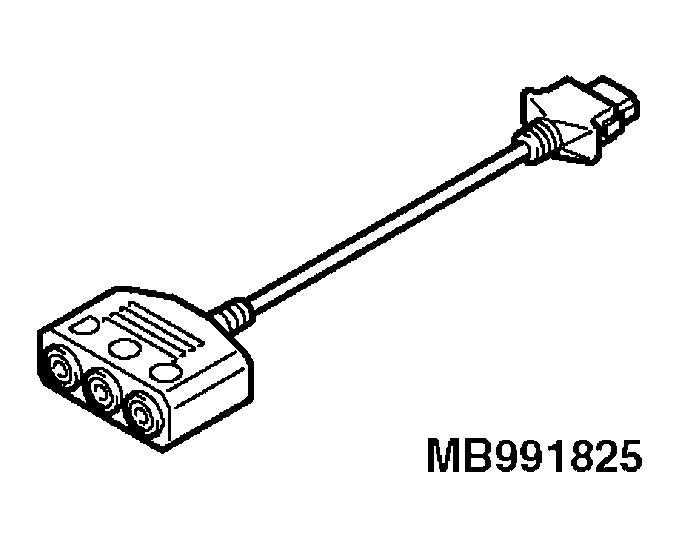

  6. MB991825

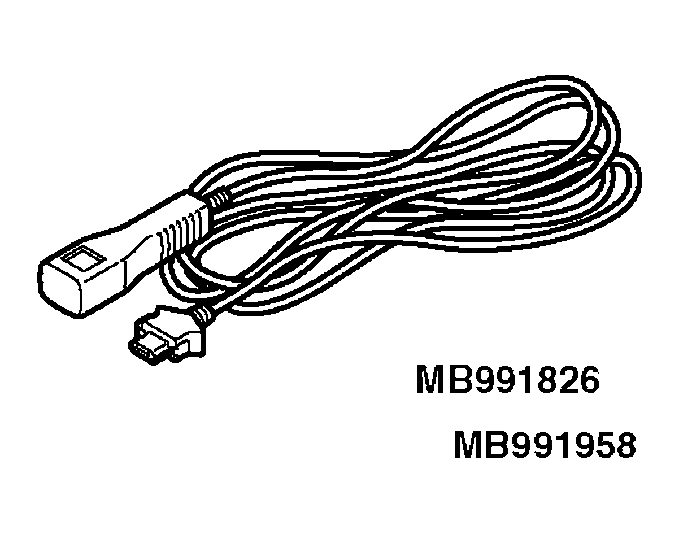

  7. MB991826

MUT-III Sub Assembly
  1. Vehicle Communication Interface (V.C.I).
  2. MUT-III USB Cable
  3. MUT-III Main Harness A (Vehicles with CAN communication system)
  4. MUT-III Main Harness B (Vehicles without CAN communication system)
  5. MUT-III Main Harness C (for DaimlerChrysler models only)
  6. MUT-III Adapter Harness
  7. MUT-III Trigger Harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Checking diagnostic trouble codes
CAUTION: For vehicles with CAN communication, use MUT-III main harness A to send simulated vehicle speed. If you connect MUT-III main harness B instead, the CAN communication does not function correctly.
G04232351
 MB991997
ASC check harness		   ABS/TCL-ECU terminal voltage measurement
G04232352

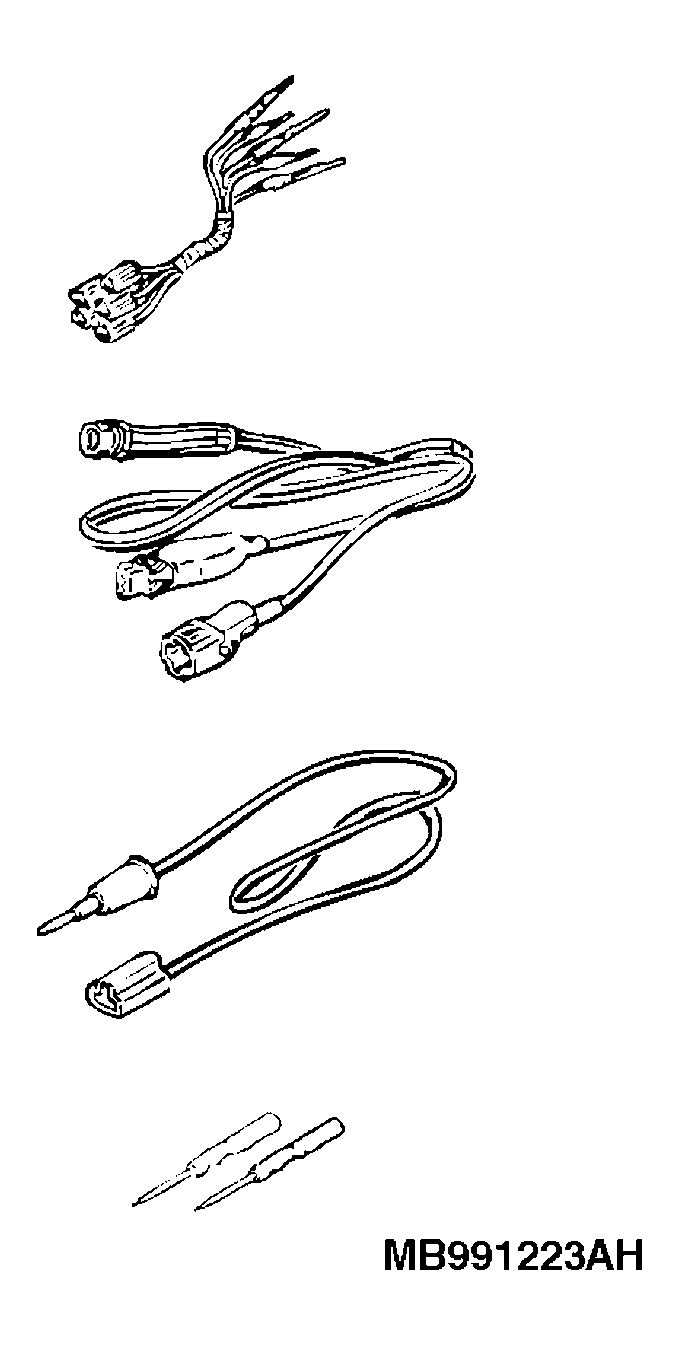

 MB991223
Harness set
  1. MB991219

Inspection harness		 General service tools Wheel speed sensor output voltage measurement
