< 3.8L Engine >

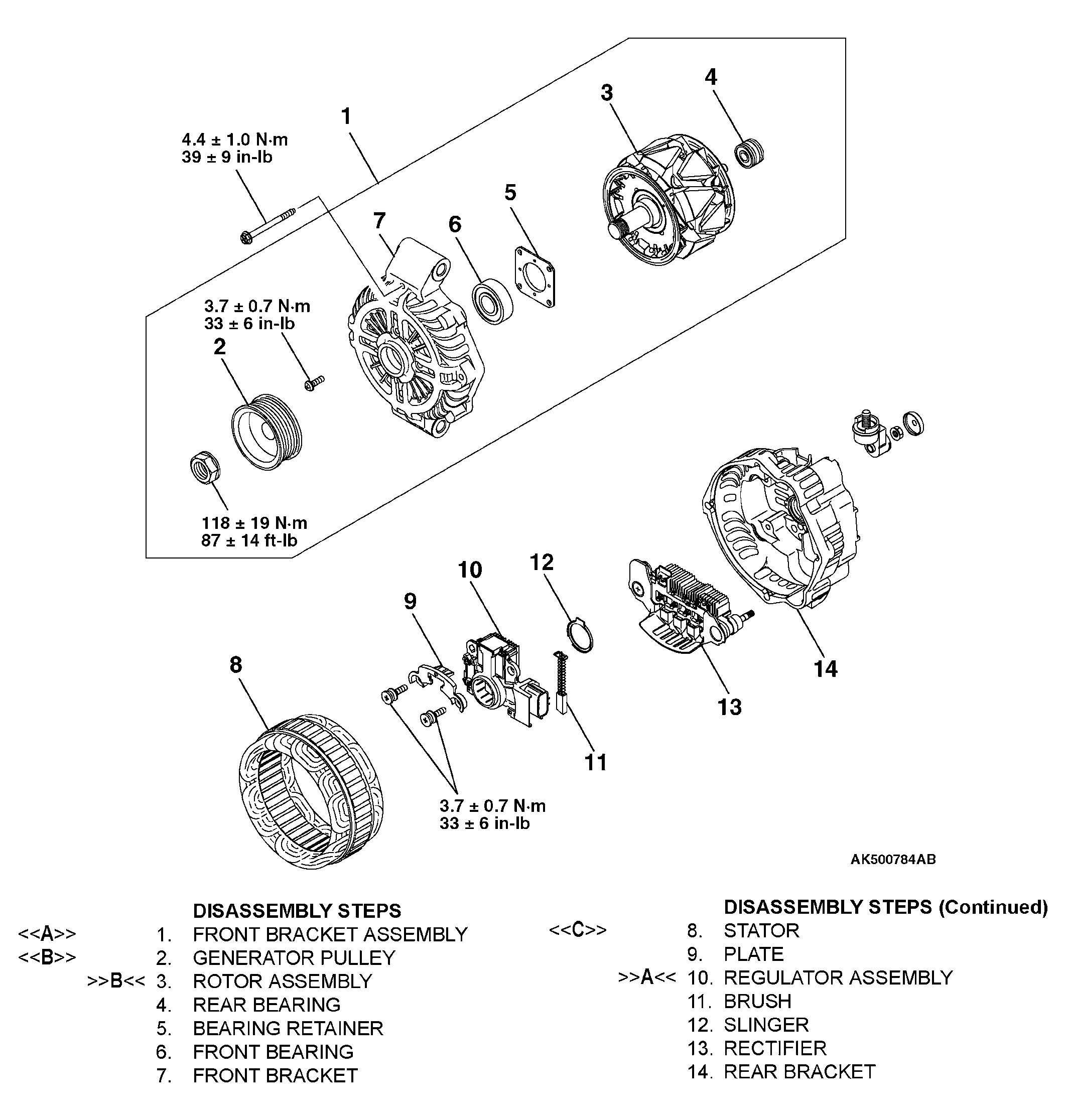

Fig 1: Exploded View Of Generator Assembly With Torque Specifications (3.8L Engine)
G04237077Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
