Brush Check

Replace the brush if the brush protrusion length shown in the illustration is below the minimum limit value
Minimum limit: 2 mm (0.08 inch)

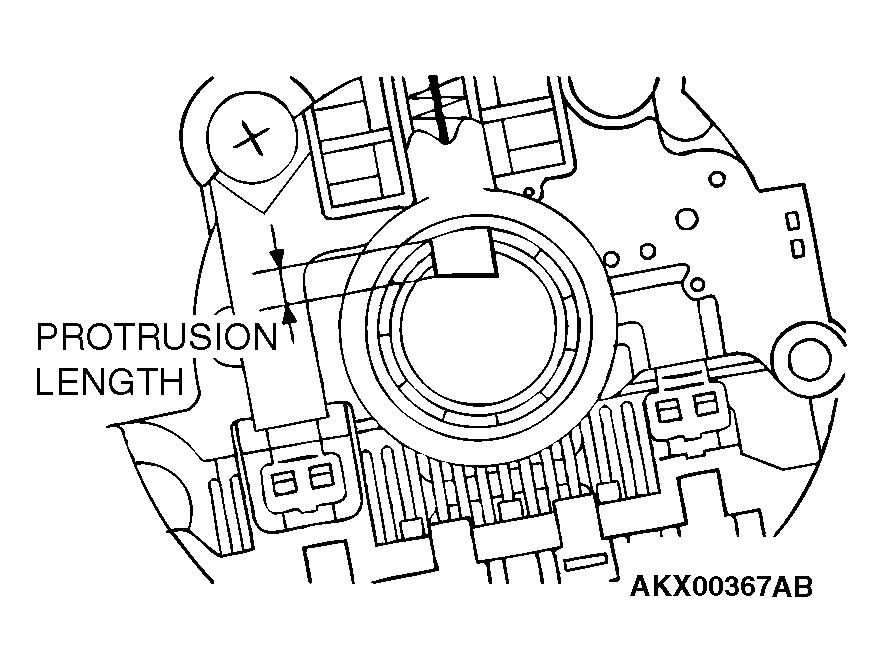

Fig 1: Identifying Brush Protrusion Length
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The brush can be removed by unsoldering the brush lead wire
When installing a new brush, push the brush in to the brush holder, and solder the lead wire

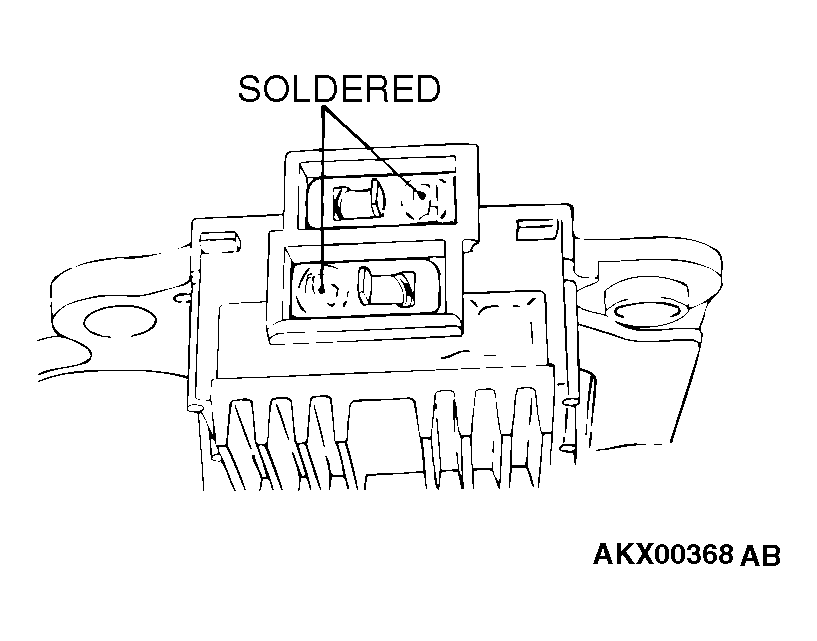

Fig 2: Locating Lead Wire Soldering Points
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
