Special Tool

SPECIAL TOOL DESCRIPTION

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04237055G04237056G04237057G04237058G04237059G04237060G04237061
G04237055G04237056G04237057G04237058G04237059G04237060G04237061
G04237055G04237056G04237057G04237058G04237059G04237060G04237061
G04237055G04237056G04237057G04237058G04237059G04237060G04237061
G04237055G04237056G04237057G04237058G04237059G04237060G04237061
G04237055G04237056G04237057G04237058G04237059G04237060G04237061
G04237055G04237056G04237057G04237058G04237059G04237060G04237061
 MB991958 Scan tool (MUT-III sub assembly)

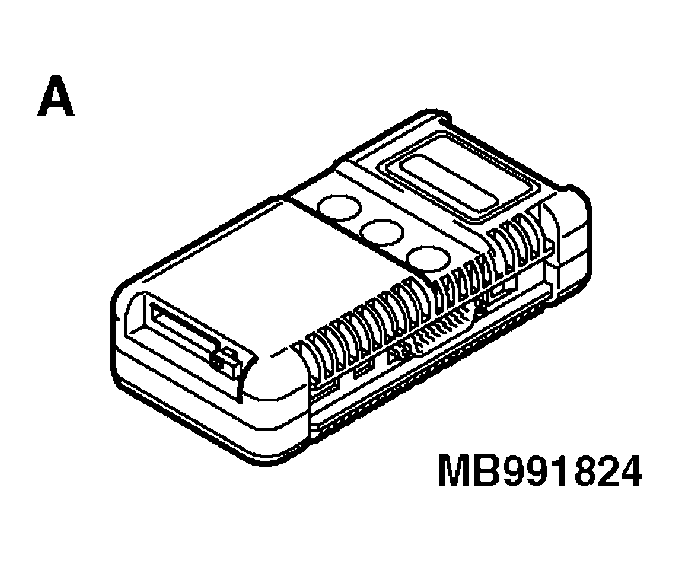

  1. MB991824 Vehicle communication interface (V.C.I.

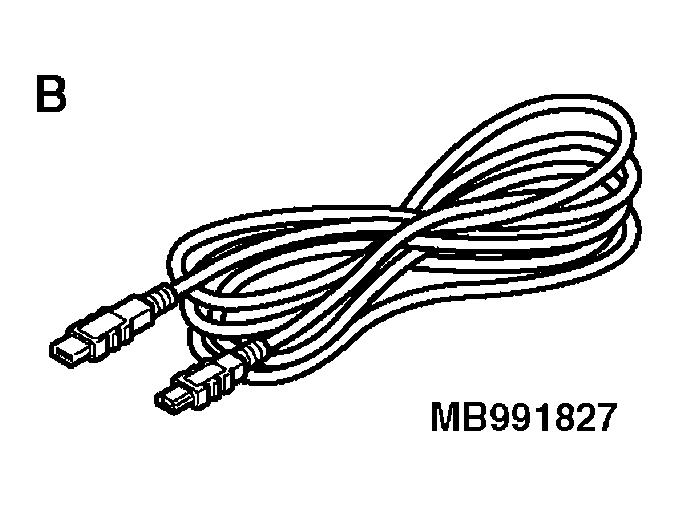

  2. MB991827 MUT-III USB cable

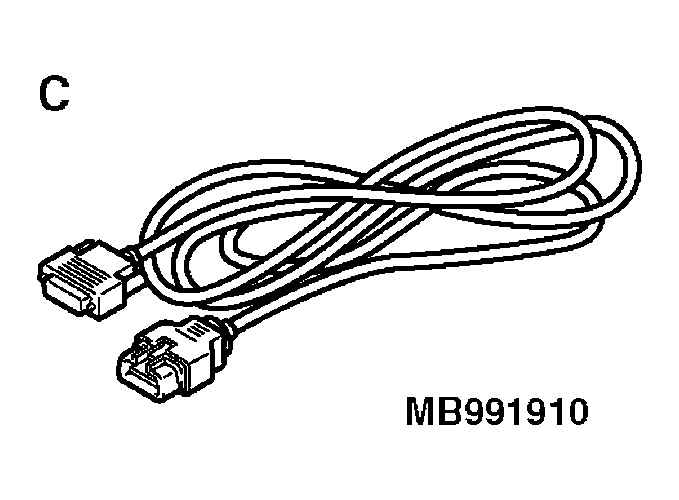

  3. MB991910 MUT-III main harness A (Vehicles with CAN communication system

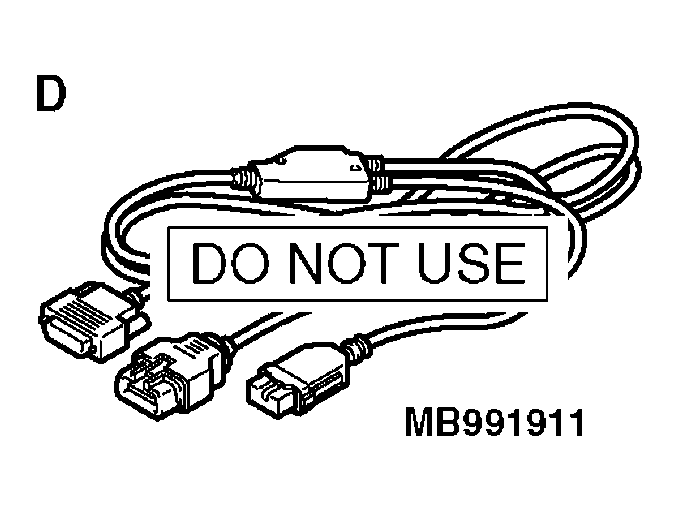

  4. MB991911 MUT-III main harness B (Vehicles without CAN communication system

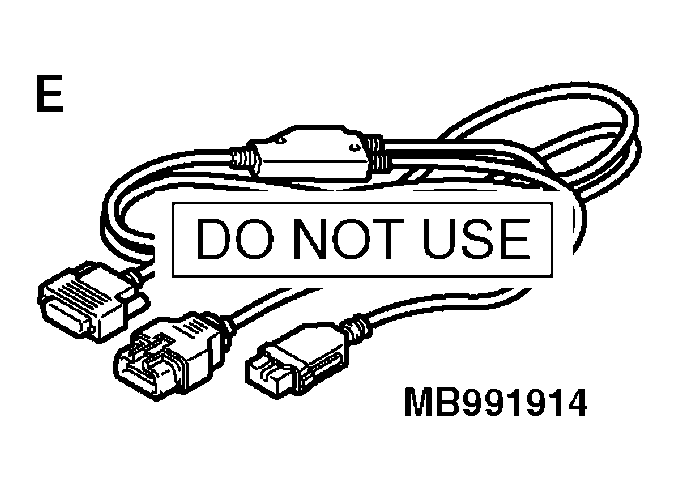

  5. MB991914 MUT-III main harness C (for DaimlerChrysler models only

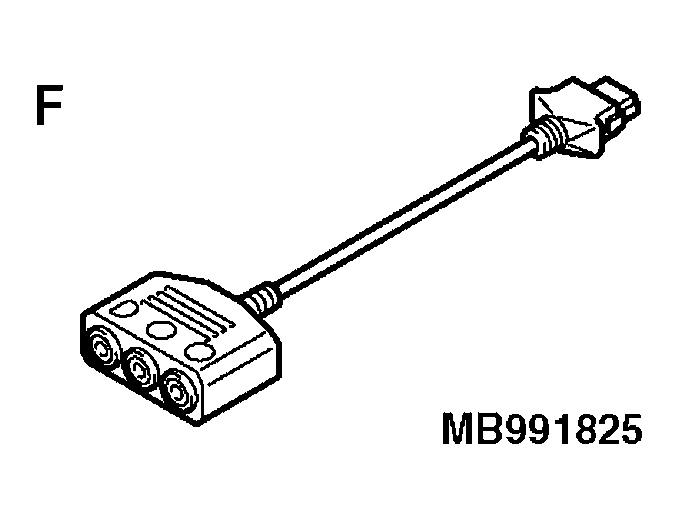

  6. MB991825 MUT-III measurement adapter

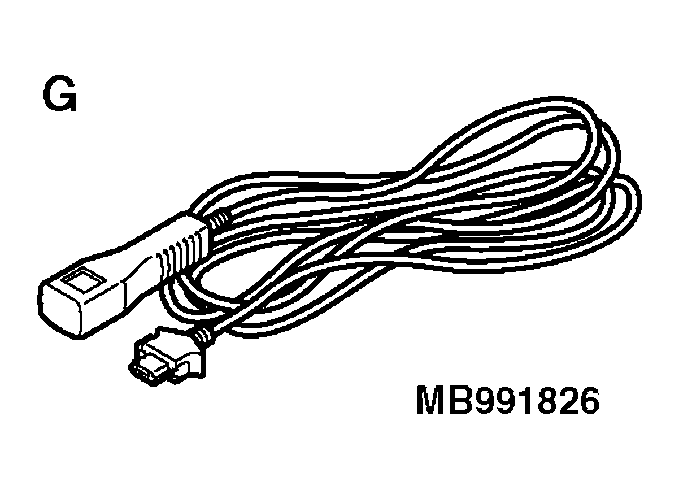

  7. MB991826 MUT-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Checking of engine speed
CAUTION: For vehicles with CAN communication, use MUT-III main harness A to send simulated vehicle speed. If you connect MUT-III main harness B instead, the CAN communication does not function correctly.
G04237062

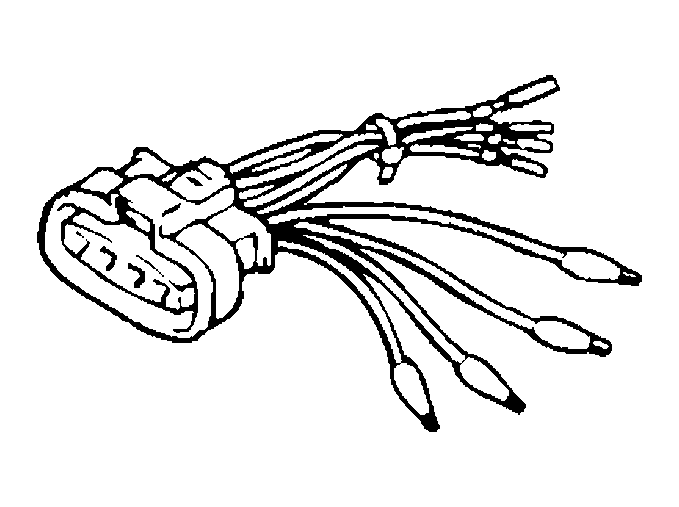

 MB991519
Generator harness connector		 MIT530 Micrd 530 charging system tester. Checking of generator ("S" terminal voltage)
