VIN Code Registration Procedure For ECM < M/T > Or Pcm < A/T >

Required Special Tools:

MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: MUT-III USB Cable
- MB991910: MUT-III Main Harness A

CAUTION:

Check that DTC No.P0603 (EEPROM malfunction) is not set. If DTC No.P0603 (EEPROM malfunction) is set, entered VIN cannot be stored. Therefore, carry out troubleshooting and repair the malfunction when this code is set.
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958 to the data link connector.
Turn the ignition switch to the "ON" position.

Fig 1: Connecting Scan Tool To Data Link Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

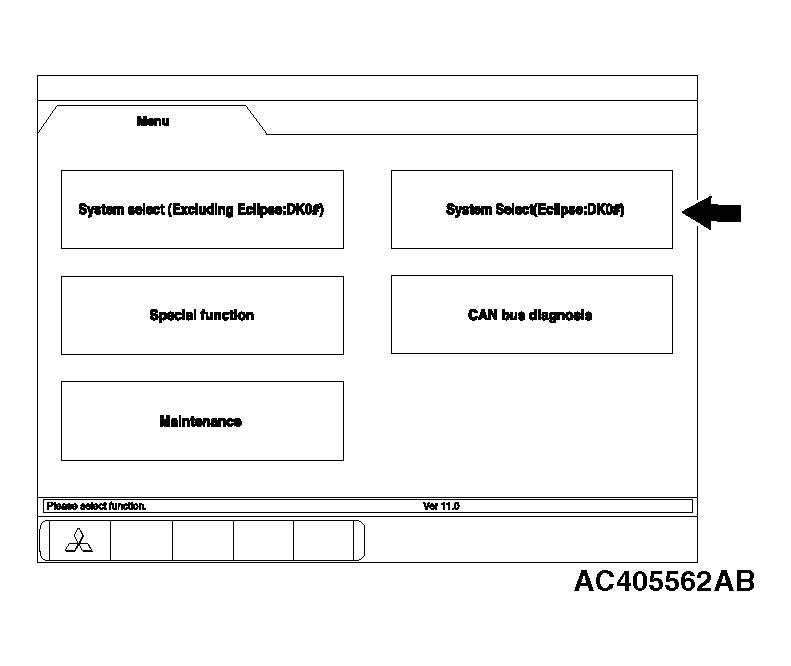

Select "ECLIPSE."

Fig 2: Identifying Scan Tool Display - Eclipse
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

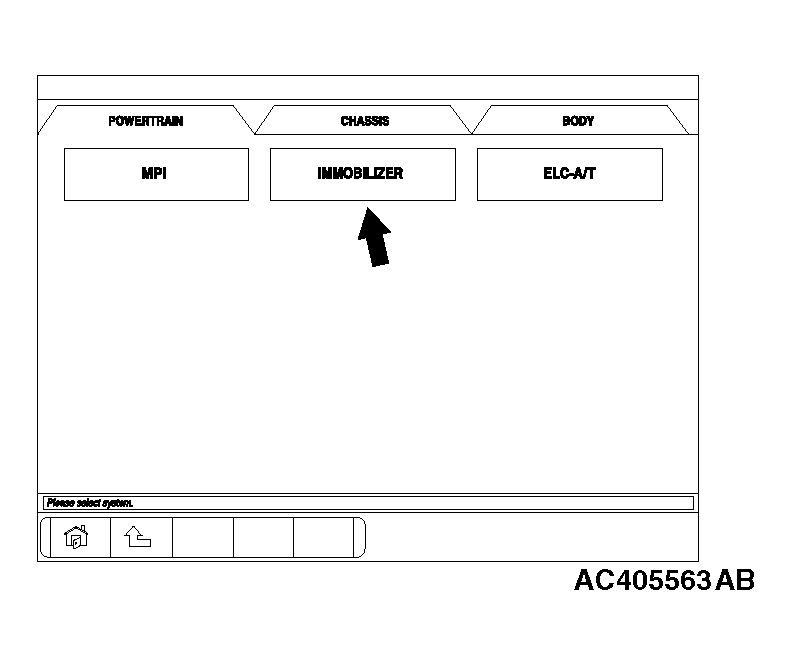

Choose "IMMOBILIZER" from the "POWER TRAIN" tab.

Fig 3: Identifying Scan Tool Display - Immobilizer
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Enter the VIN code of the vehicle that is being registered. Then, press "OK" button.

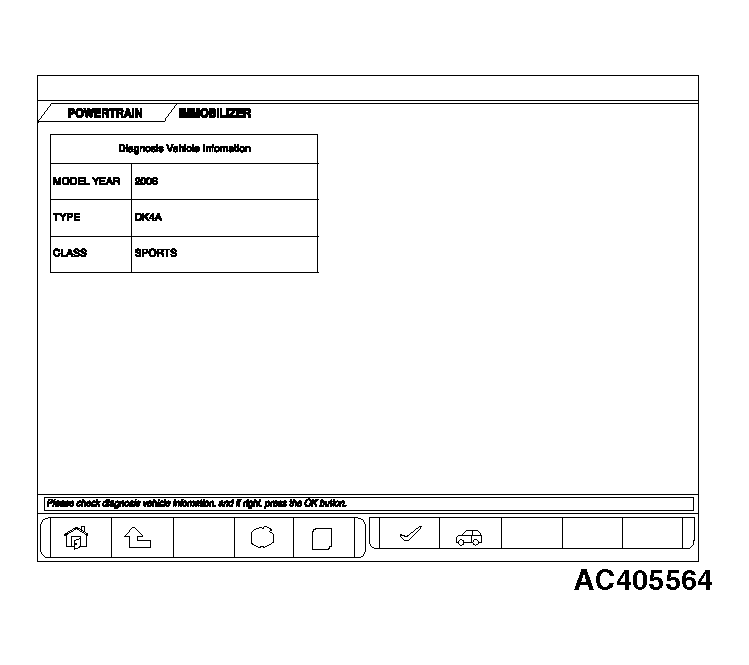

Fig 4: Identifying Scan Tool Display - VIN Code
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

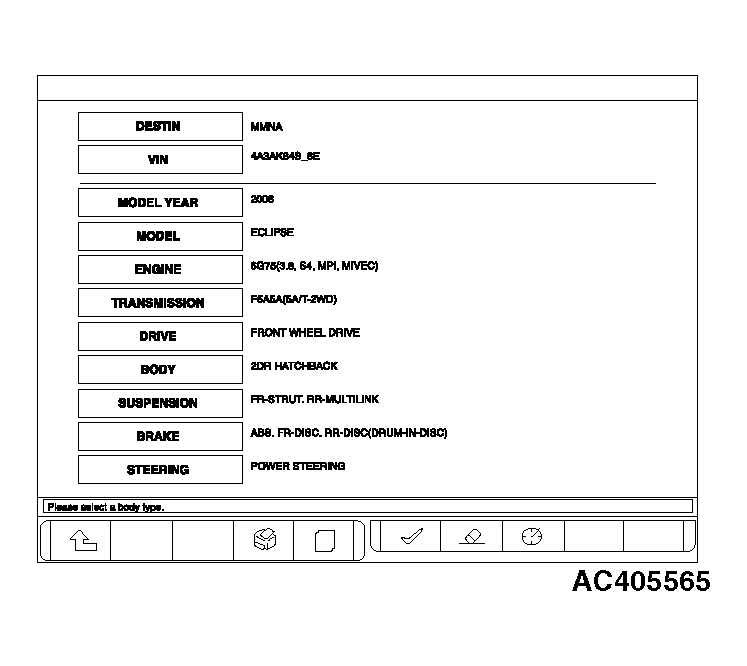

Fig 5: Identifying Scan Tool Display - VIN Code
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

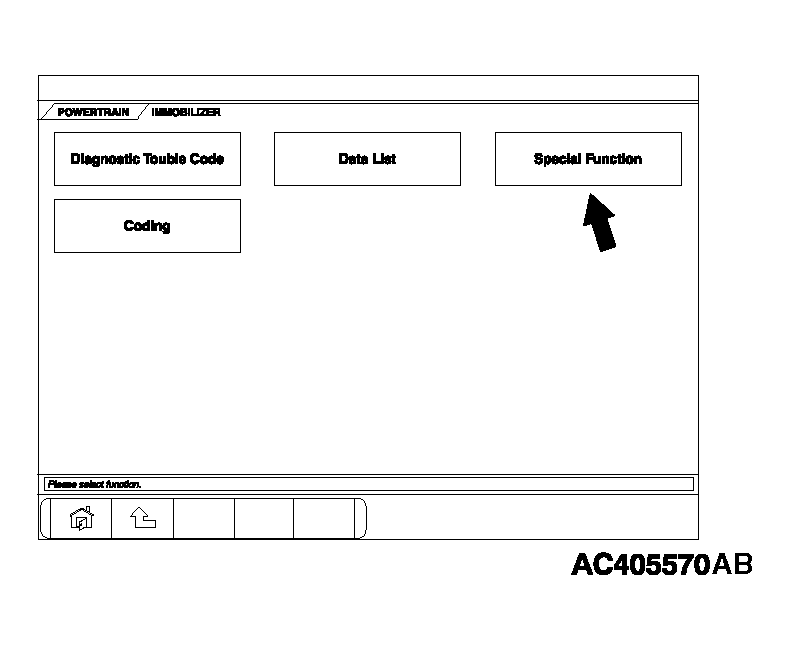

Select "Special Function."

Fig 6: Identifying Scan Tool Display - Special Function
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

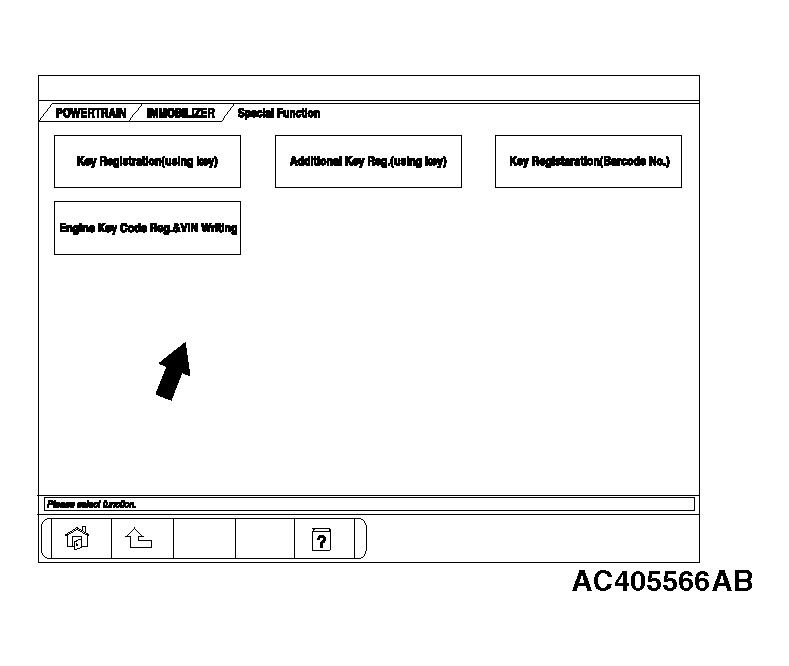

Select "Engine Key Code Reg. & VIN Writing."

Fig 7: Identifying Scan Tool Display - Engine Key Code Reg. & VIN Writing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

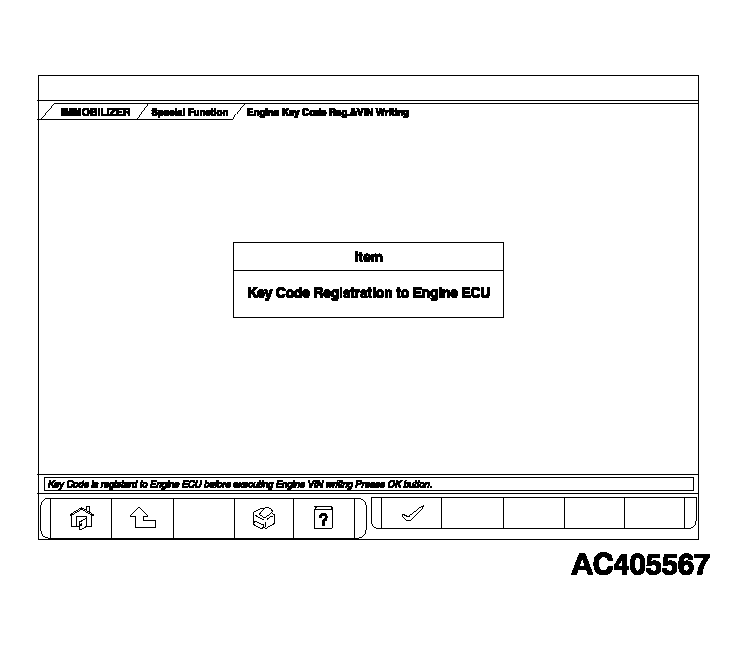

Depress the OK button.

Fig 8: Identifying Scan Tool Display - Engine Key Code Reg. & VIN Writing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the key registration completion menu is displayed, press the OK button.

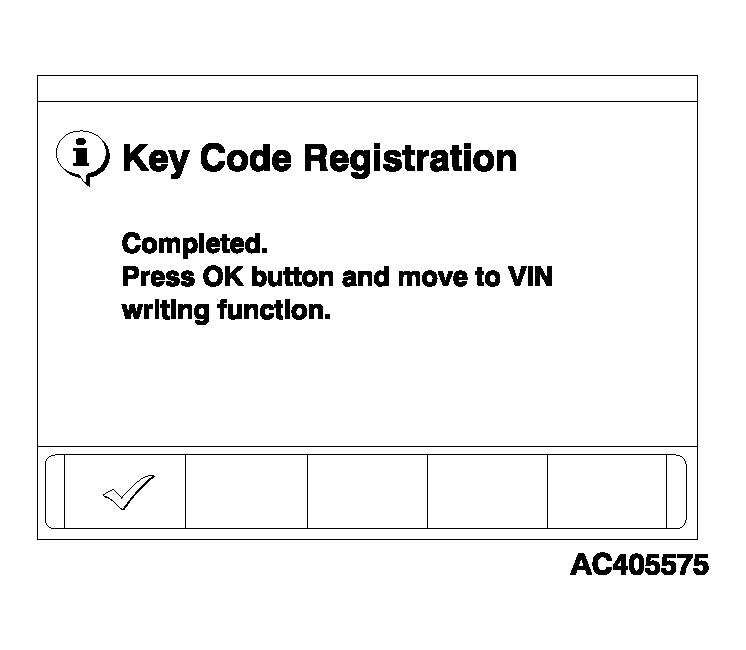

Fig 9: Identifying Scan Tool Display - Key Code Registration
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Enter the VIN code of the vehicle that is being registered. Then, press "OK" button.

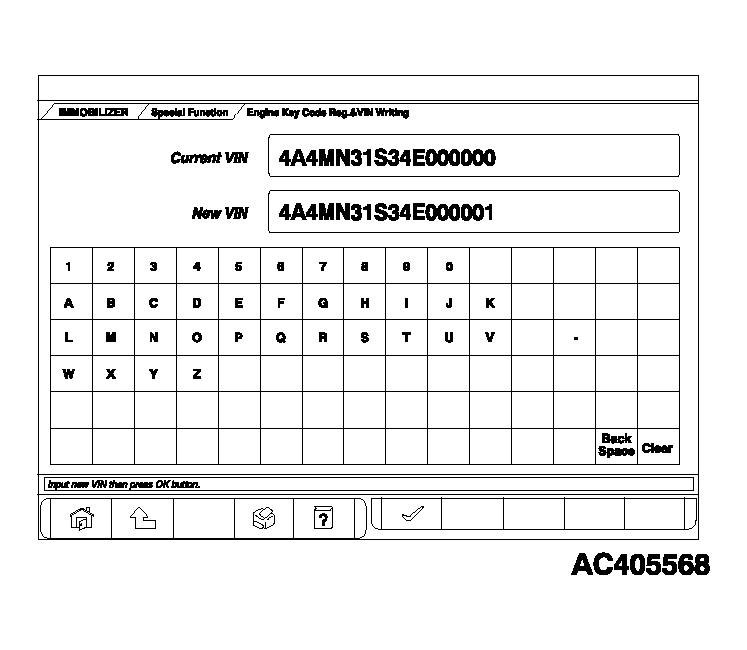

Fig 10: Identifying Scan Tool Display - VIN Code
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the execution confirmation menu of the VIN writing is displayed, press the OK button.

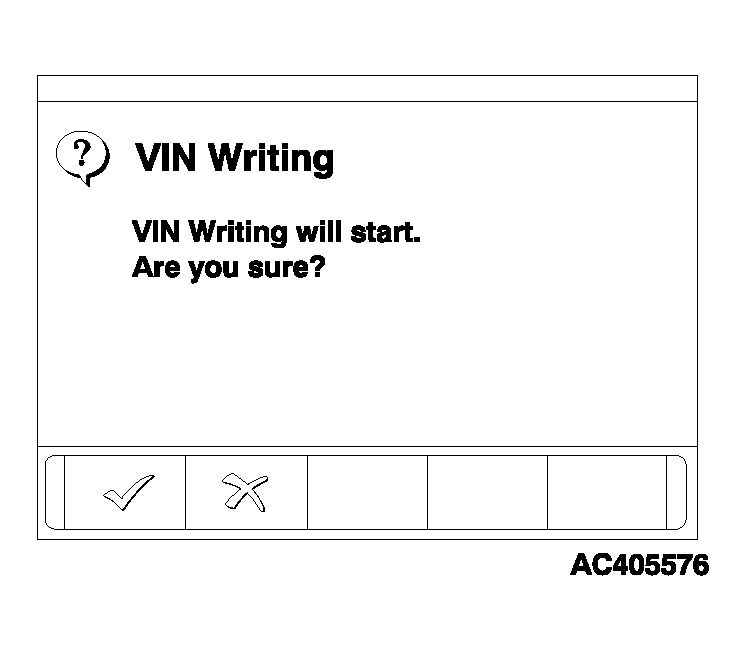

Fig 11: Identifying Scan Tool Display - VIN Writing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

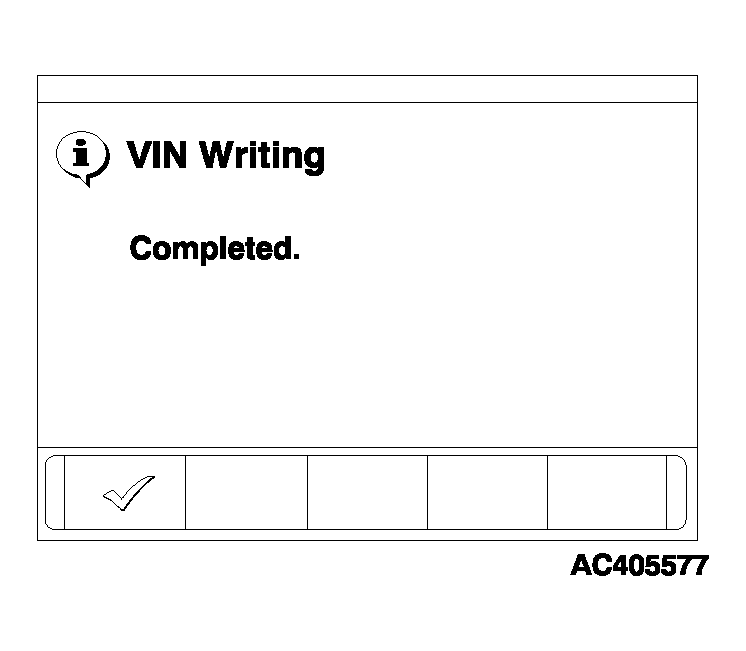

When the VIN writing completion menu is displayed, press the OK button.

Fig 12: Identifying Scan Tool Display - VIN Writing Completed
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The results of VIN writing are displayed.
Turn off the MUT-III.
Turn the ignition switch to the "LOCK" (OFF) position.
Disconnect scan tool MB991958 from the data link connector.

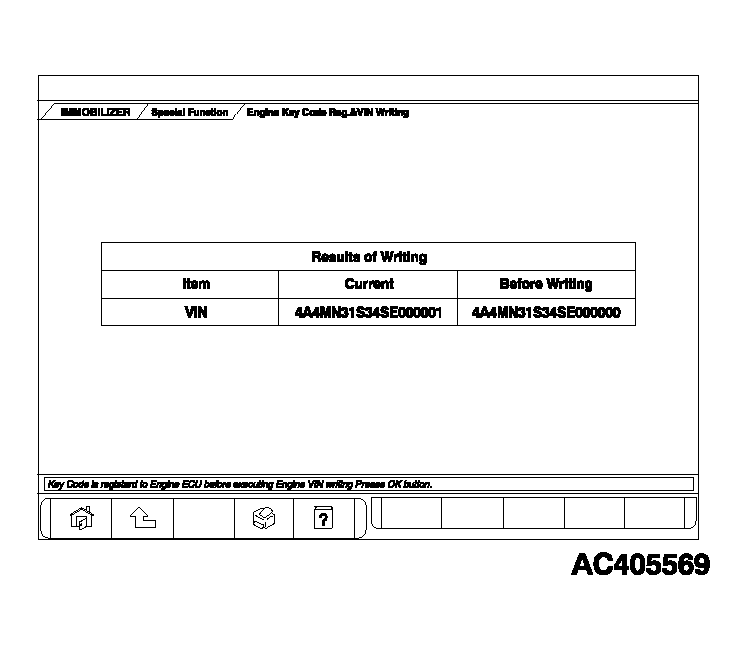

Fig 13: Identifying Scan Tool Display - Results Of VIN Writing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
