>> A << Steering Gear Bushing Installation

Use special tools MD999569 and MB990996 to press-fit the steering gear bushing.

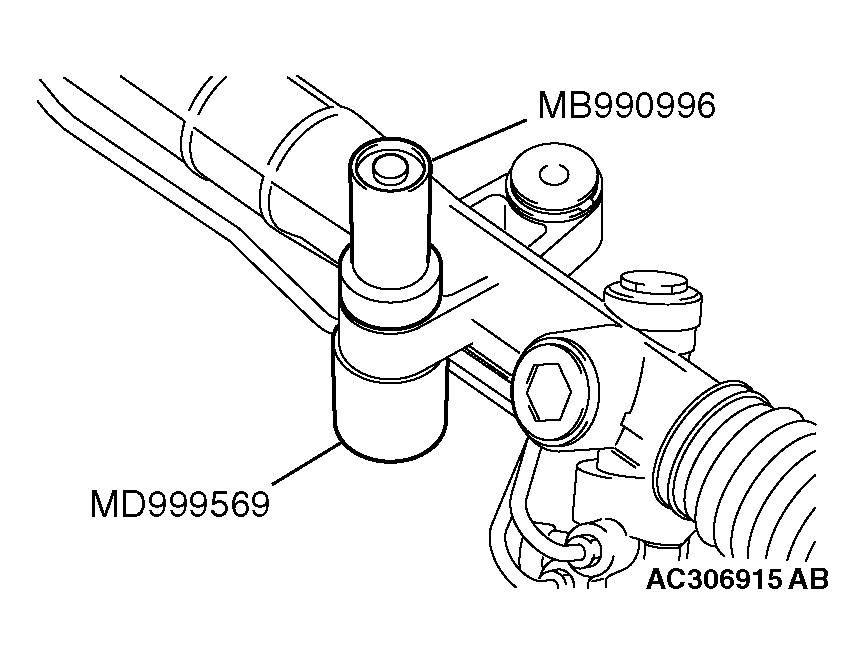

Fig 1: Pressing Steering Gear Bushing
G04237432Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
