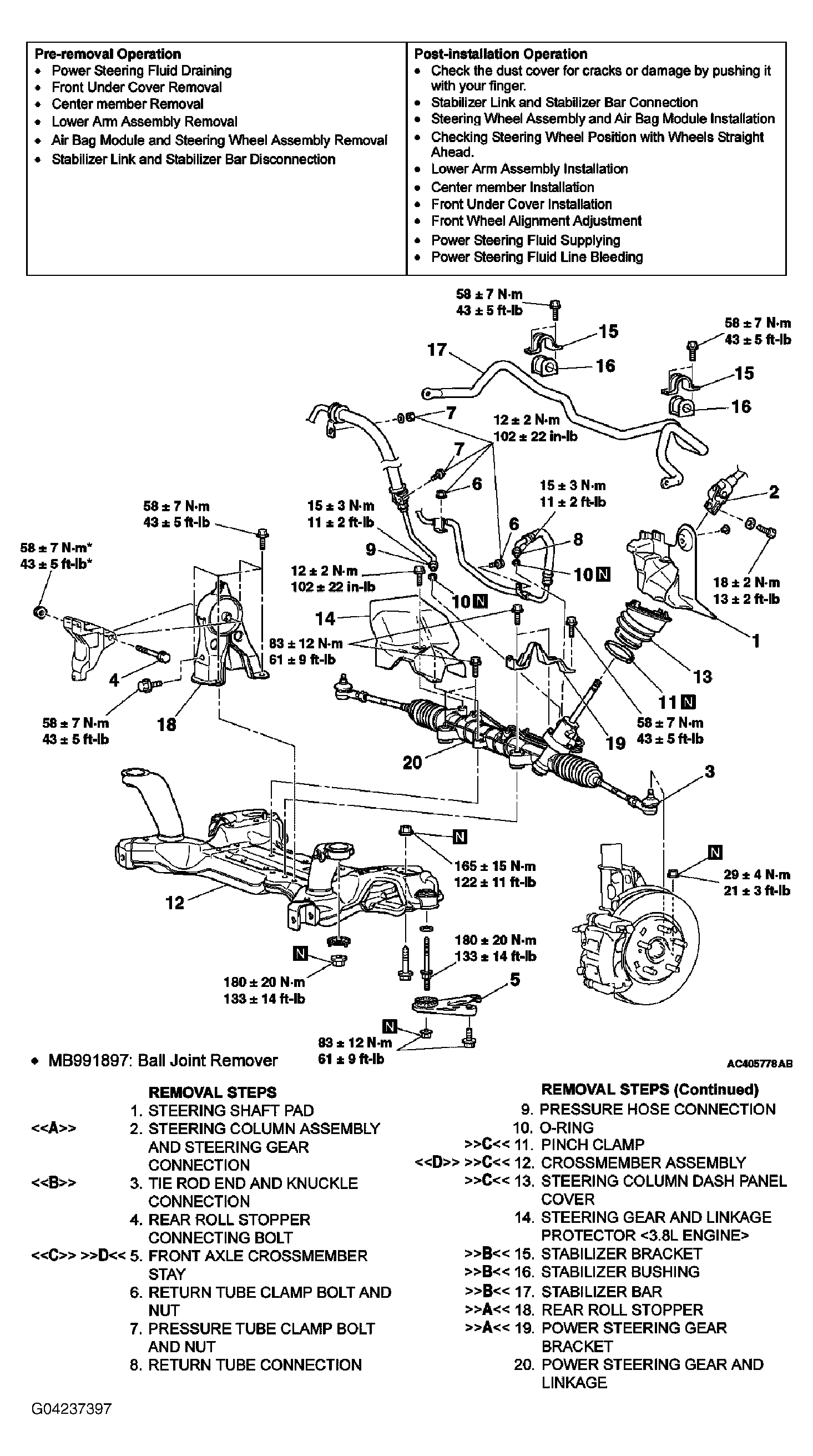

Removal And Installation: Notes
WARNING:
- Before removing the power steering gear assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .
- Center the front wheels. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.
CAUTION:
*: Indicates parts which should be temporarily tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
